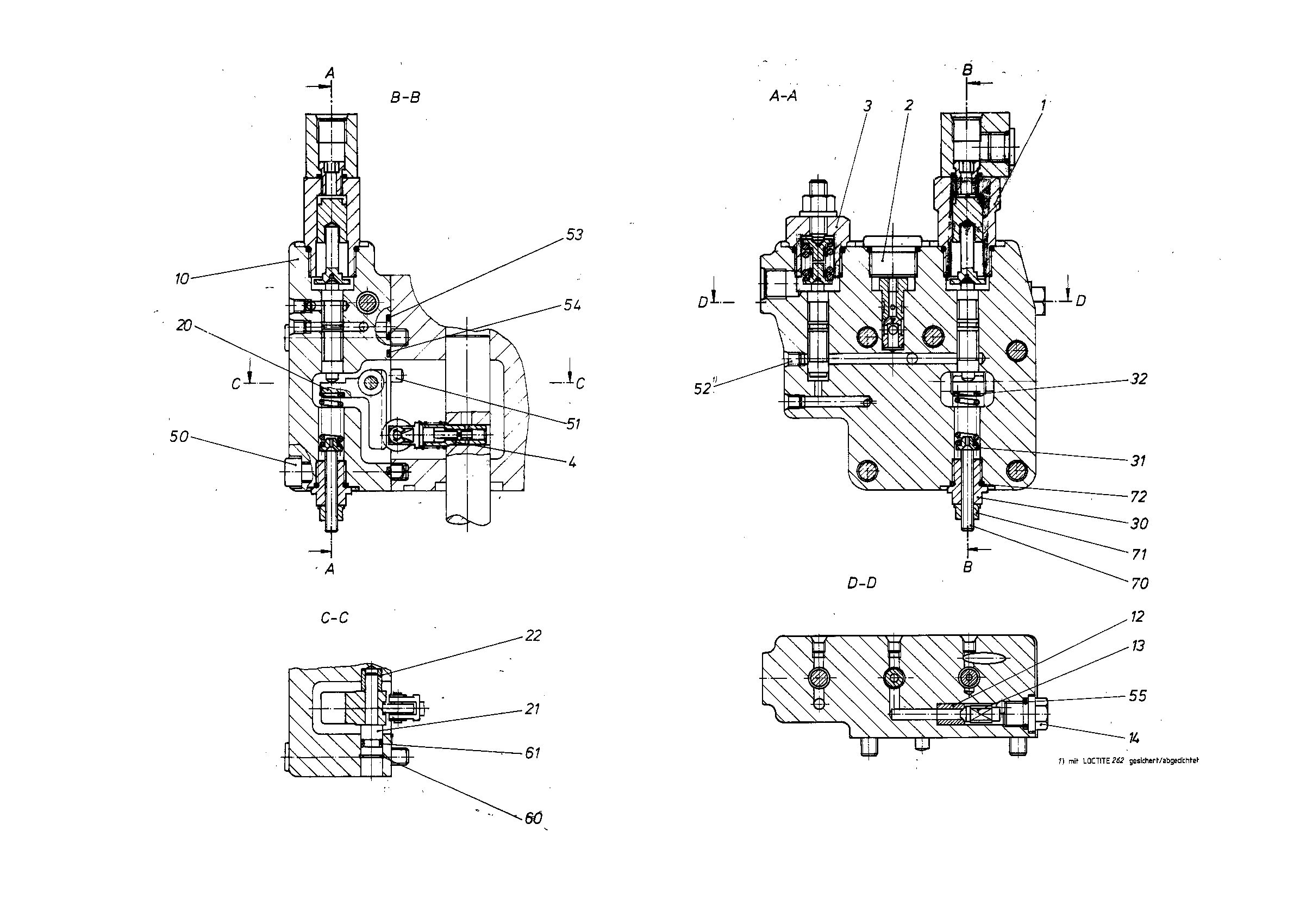

Assembly
REGULATORR909441833
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434664 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 2 | R909438949 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R909437612 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 4 | R909436736 | MEASURING PISTON Assembly parts list →L | 1 | |
| R909443556 | CONTROL HOUSING | 1 | ||
| R909431495 | VALVE BUSHING | 1 | ||
| R909443557 | VALVE CONE | 1 | ||
| 14 | R909443933 | SCREW PLUG | 1 | |
| 20 | R909435846 | ANGLE LEVER | 1 | |
| 21 | R909431281 | BEARING BOLT | 1 | |
| 22 | R909431286 | BUSHING | 1 | |
| 30 | R909413178 | SCREW PLUG | 1 | |
| R909417378 | SPRING DISK | 1 | ||
| R909416364 | COMPRESSION SPRING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| 55 | R909083749 | O-RINGD | 1 | |
| 60 | R909087248 | RETAINING RING | 1 | |
| 61 | R909086380 | O-RINGD | 1 | |
| R909157649 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086729 | O-RINGD | 1 |
