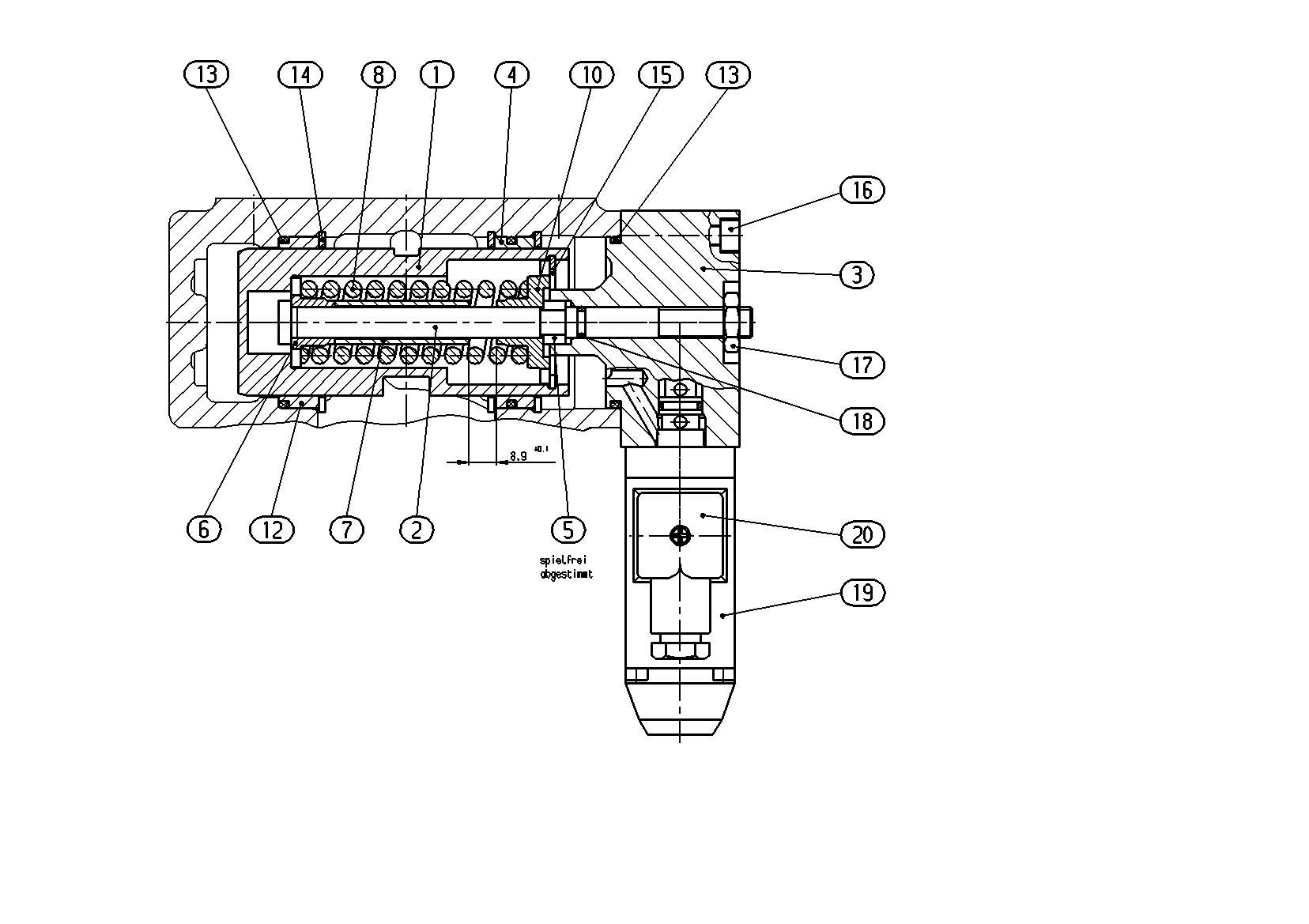

Assembly
CONTROLR909441887
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909652177 | POSITIONING PISTON | 1 | ||
| R909443600 | ROD | 1 | ||
| 3 | R909443599 | COVER | 1 | |
| R909439278 | BUSHING | 1 | ||
| R909436219 | RING | 1 | ||
| R909436220 | RING | 1 | ||
| R909436221 | RING | 1 | ||
| R909436222 | RING | 1 | ||
| R909436223 | RING | 1 | ||
| R909436224 | RING | 1 | ||
| R909650222 | RING | 1 | ||
| R909650223 | RING | 1 | ||
| R909650224 | RING | 1 | ||
| R909440503 | SPRING DISK | 1 | ||
| 7 | R909440507 | SPACER BUSHING | 1 | |
| 7 | R909444046 | SPACER BUSHING | 1 | |
| 7 | R909444047 | SPACER BUSHING | 1 | |
| 7 | R902000988 | SPACER BUSHING | 1 | |
| R909440512 | COMPRESSION SPRING | 1 | ||
| R909440504 | SPRING DISK | 1 | ||
| R909443249 | BUSHING | 1 | ||
| R909152464 | O-RINGD | 3 | ||
| R909156216 | V-RING | 3 | ||
| R909083400 | RETAINING RING | 1 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R902017521 | HEXAGON NUT | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| 19 | R902601692 | DUMMY | 1 | |
| R913022796 | PLUG-IN CONNECTOR | 1 |
