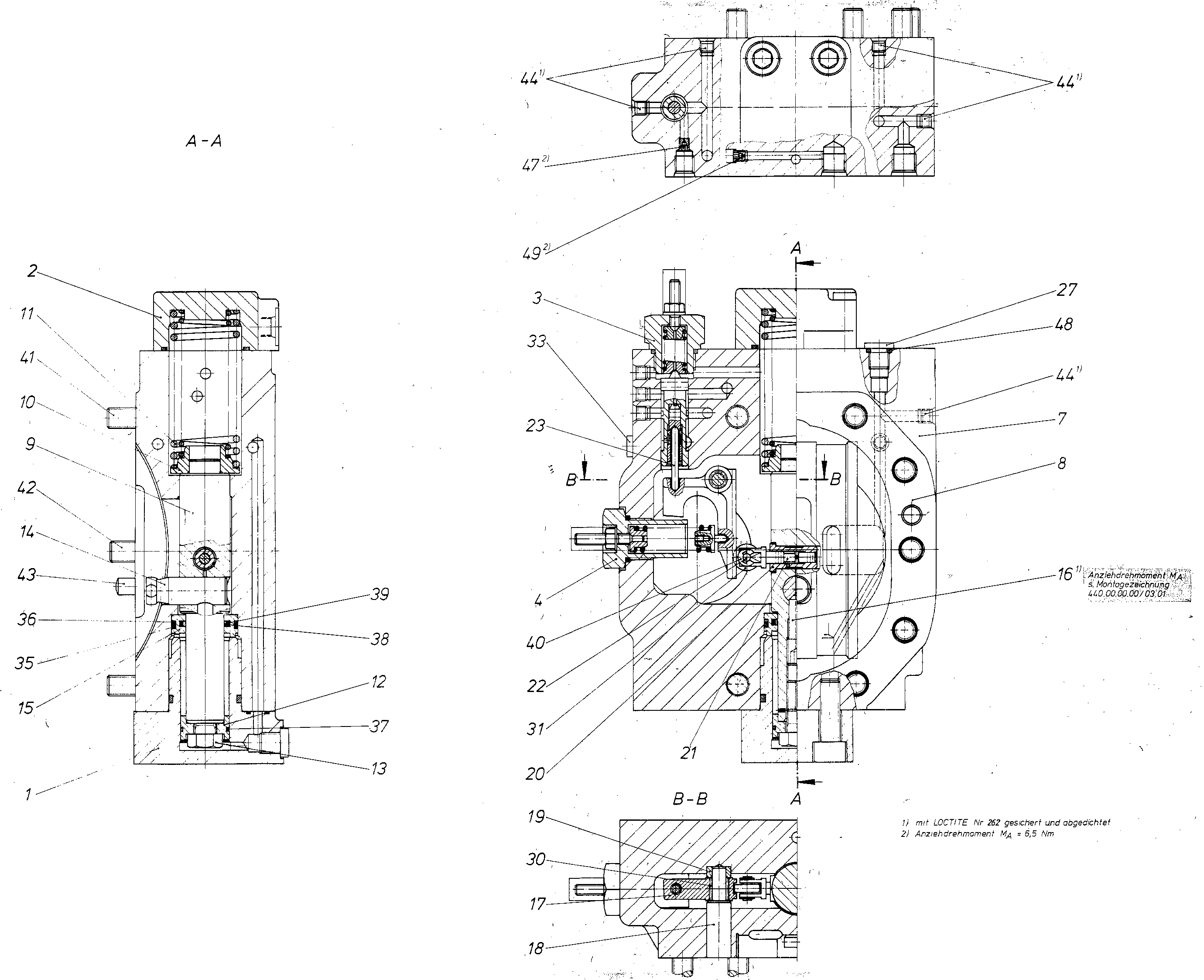

Assembly
CONTROLR909442070
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902000048 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909442071 | COVER Assembly parts list →L | 1 | ||
| R909427058 | CONTROL PART Assembly parts list →L | 1 | ||
| R909427311 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R909443749 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024642 | SEALD | 1 | ||
| R909426602 | POSITIONING PISTON | 1 | ||
| R909426603 | SPRING DISK | 1 | ||
| R909426151 | COMPRESSION SPRING | 1 | ||
| R909426604 | PISTON | 1 | ||
| R902030799 | HEXAGON SCREW | 1 | ||
| R909430407 | POSITIONING STUD | 1 | ||
| R909426607 | SEAL RING | 1 | ||
| R909416798 | SETSCREW | 1 | ||
| R909444098 | LEVER | 1 | ||
| R909416683 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909426915 | ADJUSTING BUSH | 1 | ||
| R909426917 | MEASURING PISTON | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909440328 | PIN | 1 | ||
| R909083219 | SCREW PLUG | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909152146 | O-RINGD | 1 | ||
| R909157762 | BACKUP RINGD | 1 | ||
| R909156962 | R-RINGD | 1 | ||
| R909157763 | ROD SEALD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909085810 | LOCKING WASHER | 2 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083198 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909156492 | NOZZLE | 1 | ||
| R909083749 | O-RINGD | 1 | ||
| R909156492 | NOZZLE | 1 |
