Assembly

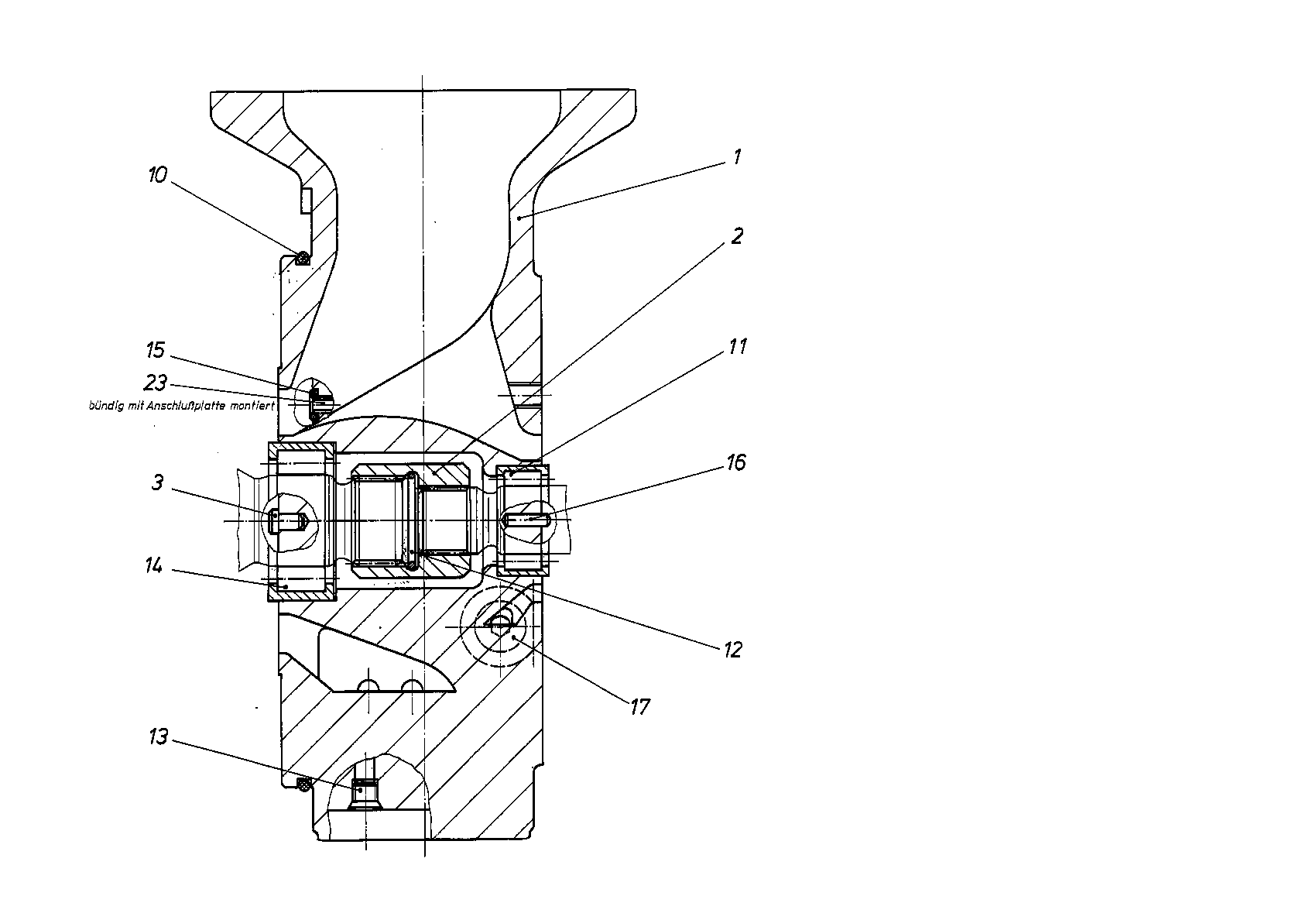

CONNECTION PLATER909442090
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909443699 | CONNECTION PLATE | 1 | |
| 2 | R909426718 | COUPLING HUB | 1 | |
| 3 | R909405732 | POITIONING PIN | 2 | |
| R909086482 | O-RINGD | 1 | ||
| 11 | R909153245 | CYL. ROLLER BEARING | 1 | |
| R909157761 | SNAP RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909156113 | CYL. ROLLER BEARING | 1 | ||
| 15 | R909157512 | O-RINGD | 2 | |
| R909087694 | STRAIGHT PIN | 2 | ||
| 17 | R909151692 | SCREW PLUGD | 2 | |
| R909830313 | SLOTTED SPRING PIN | 2 |
