Assembly

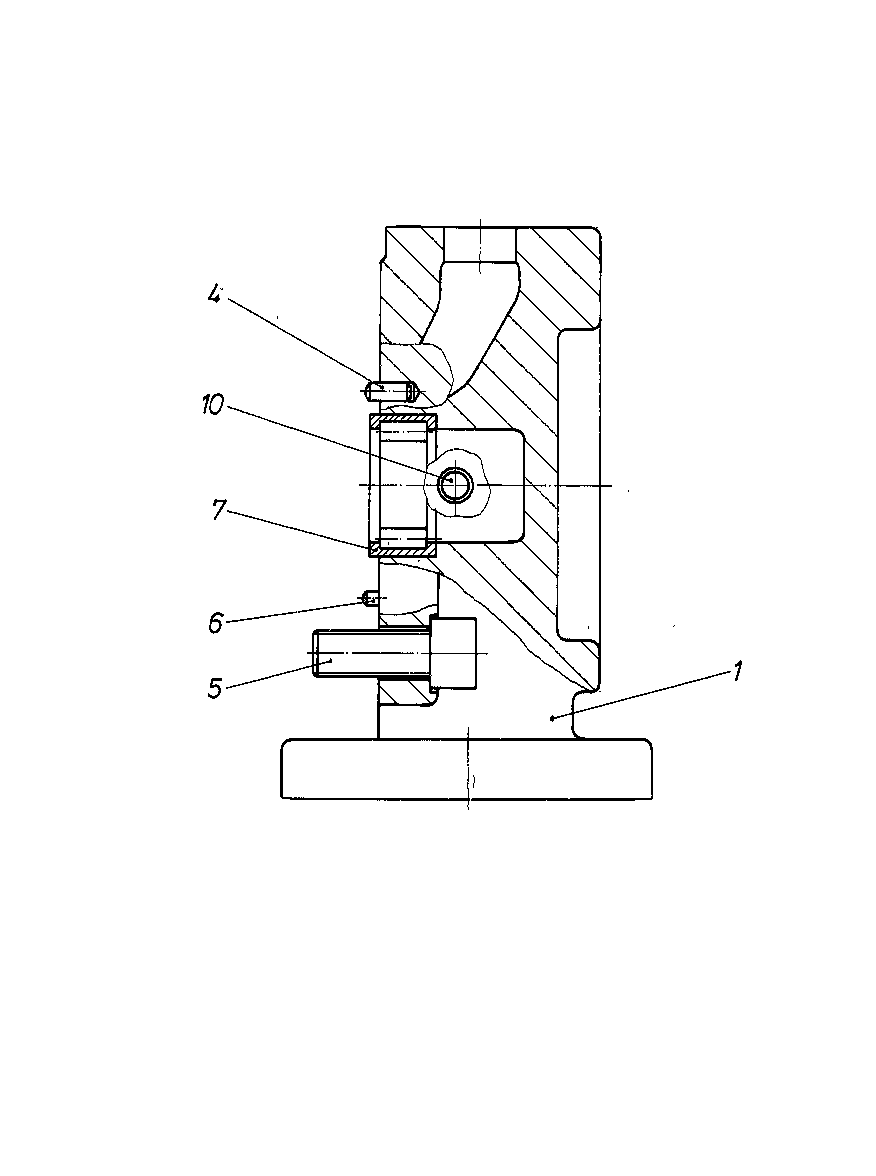

CONNECTION PLATER909442092
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909449625 | CONNECTION PLATE | 1 | |
| 4 | R913009664 | STRAIGHT PIN | 1 | |
| 5 | R909083087 | SOCKET HEAD CAP SCREW | 4 | |
| 6 | R909087694 | STRAIGHT PIN | 2 | |
| 7 | R909153245 | CYL. ROLLER BEARING | 1 | |
| 10 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
