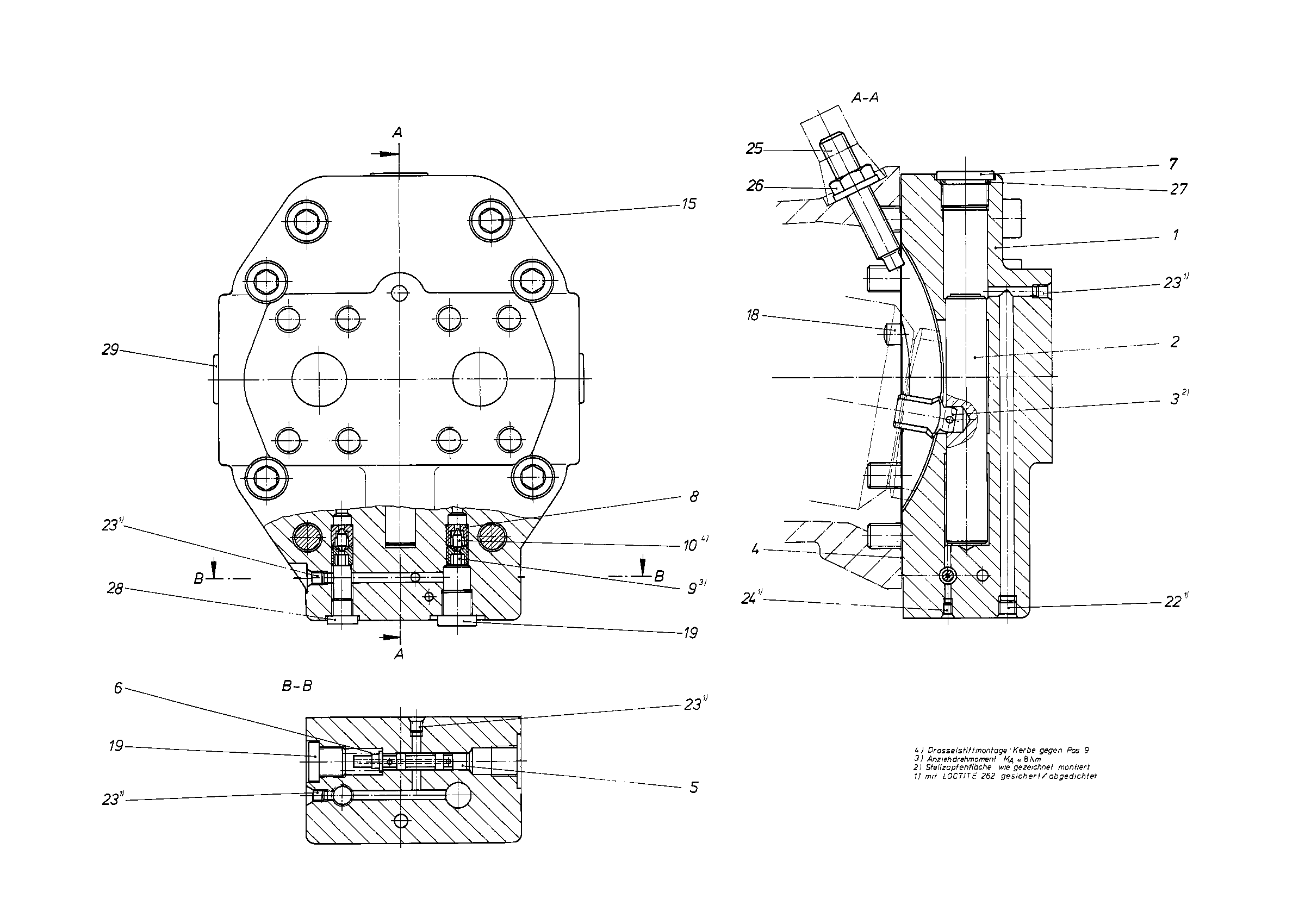

Assembly
CONTROLR909442118
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909443835 | COVER PLATE | 1 | |
| 2 | R909443313 | POSITIONING PISTON | 1 | |
| 3 | R909650145 | POSITIONING STUD | 1 | |
| 4 | R902011855 | SEALD | 1 | |
| 5 | R909443314 | CONTROL PISTON | 1 | |
| 6 | R909445946 | COMPRESSION SPRING | 1 | |
| 7 | R909443855 | SCREW PLUG | 1 | |
| 8 | R909400263 | THROTTLE SCREW | 2 | |
| 9 | R909400264 | THROTTLE SCREW | 2 | |
| 10 | R902067256 | THROTTLE PIN | 2 | |
| R909083096 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| 22 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| 24 | R909831316 | DOUBLE BREAK-OFF PLUG | 1 | |
| 25 | R909446862 | SETSCREW Assembly parts list →L | 1 | |
| 26 | R909152459 | SEALING NUTD | 1 | |
| R909083758 | O-RINGD | 1 | ||
| 28 | R909153364 | SCREW PLUGD | 1 | |
| R909153815 | SCREW PLUGD | 2 |
