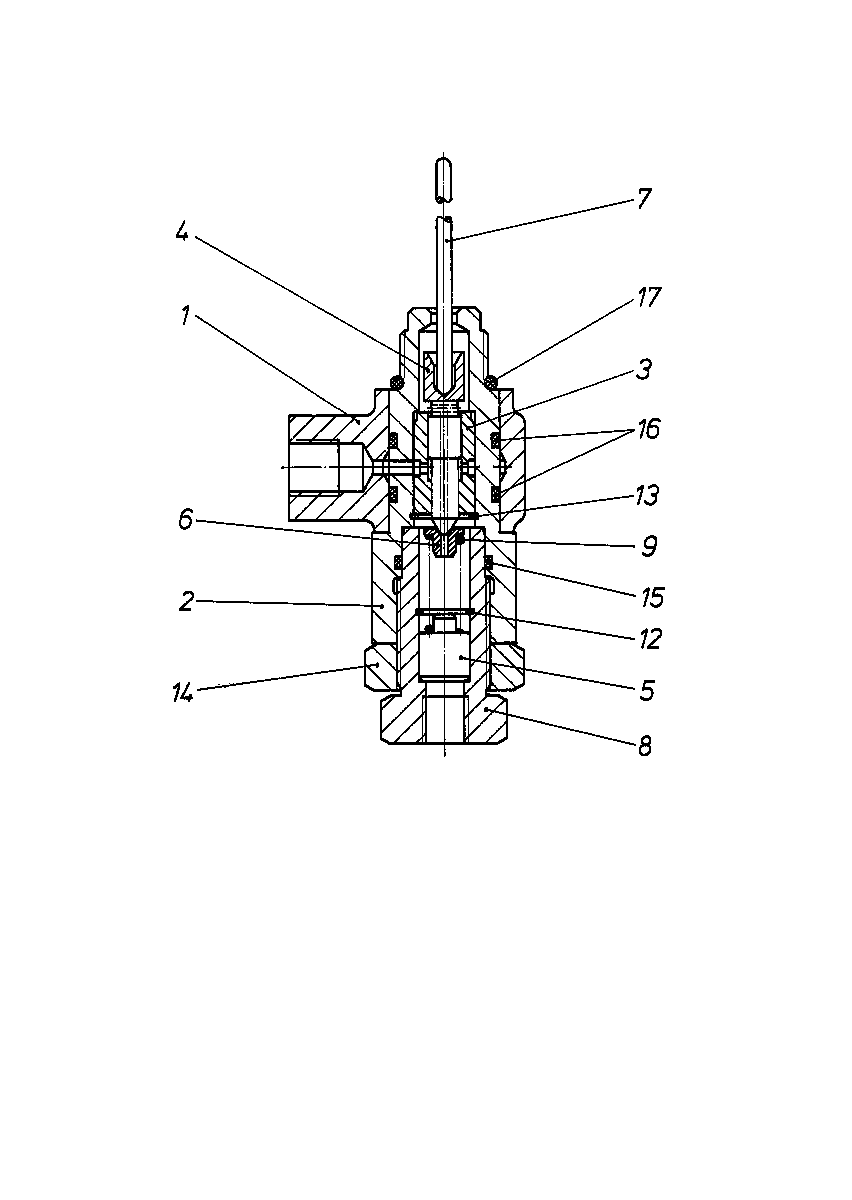

Assembly
VALVER909442211
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419771 | CONNECTING PIECE | 1 | |
| 2 | R909444009 | THREADED PART | 1 | |
| 3 | R909443897 | CONTROL SLEEVE | 1 | |
| 4 | R909443894 | CONTROL PISTON | 1 | |
| 5 | R909444001 | PISTON | 1 | |
| 6 | R909075975 | SPRING DISK | 1 | |
| 7 | R909421601 | PIN | 1 | |
| 8 | R909444005 | SCREW PLUG | 1 | |
| 9 | R909432358 | COMPRESSION SPRING | 1 | |
| 12 | R909830576 | SNAP RING | 1 | |
| R909084824 | RETAINING RING | 1 | ||
| 14 | R909156921 | HEXAGON NUT | 1 | |
| R909083760 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 2 | ||
| R909083758 | O-RINGD | 1 |
