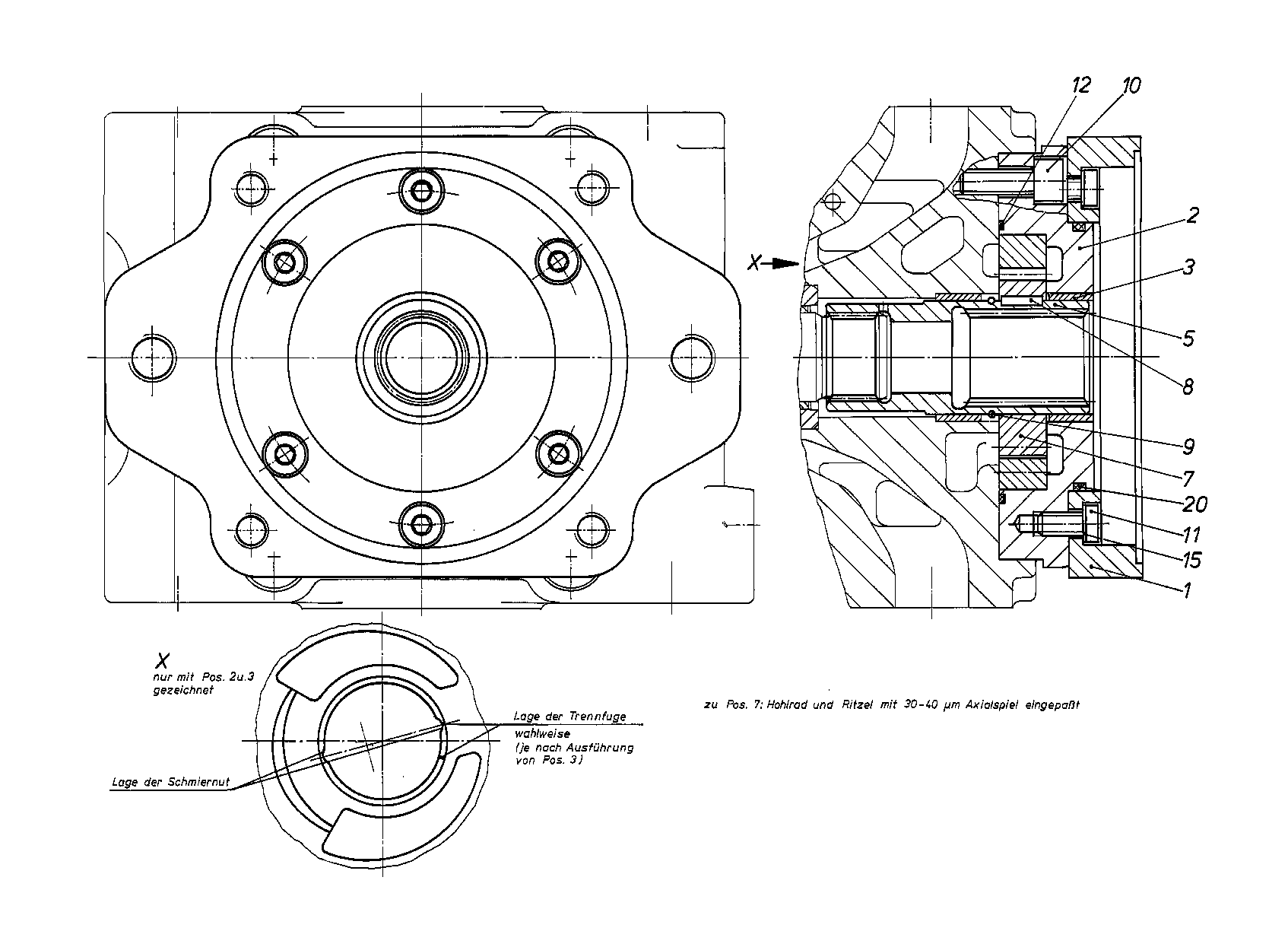

Assembly
INTERNAL GEAR PUMPR909442226
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909651144 | FLANGE | 1 | ||
| R909651141 | PUMP COVER | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R909650387 | THROUGH DRIVE SHAFT | 1 | ||
| R902006258 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083190 | SOCKET HEAD CAP SCREW | 8 | ||
| R909086679 | O-RINGD | 1 | ||
| R909152493 | SEAL RINGD | 8 | ||
| 19 | R909085364 | O-RING | 1 | |
| R909085360 | O-RINGD | 1 |
