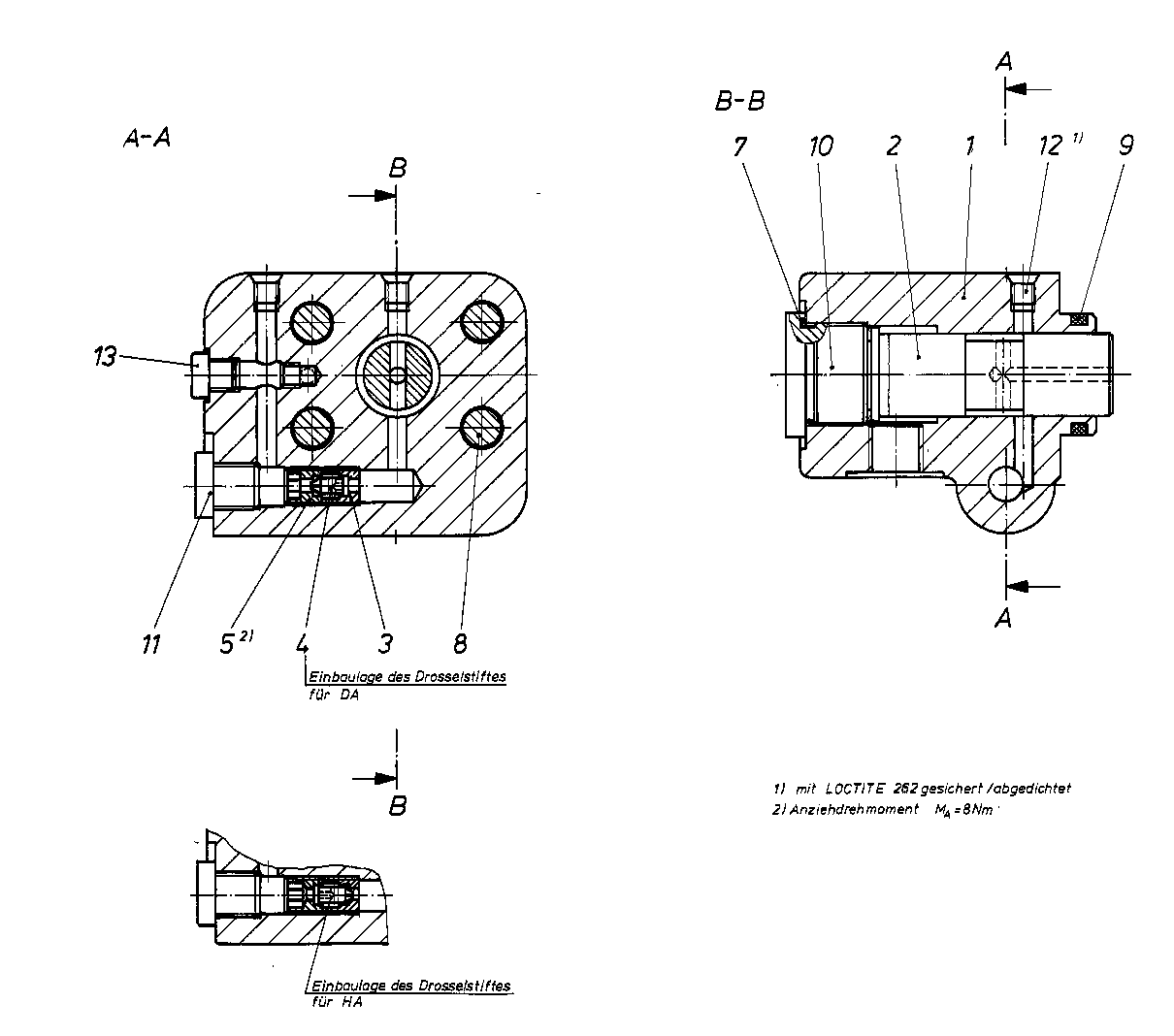

Assembly
STROKE LIMITERR909442257
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909449818 | HOUSING | 1 | ||
| R909449817 | PISTON | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909417118 | THROTTLE PIN | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R900012475 | SEAL RINGD | 1 | ||
| R909083075 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083803 | O-RINGD | 1 | ||
| R909444003 | SCREW PLUG | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
