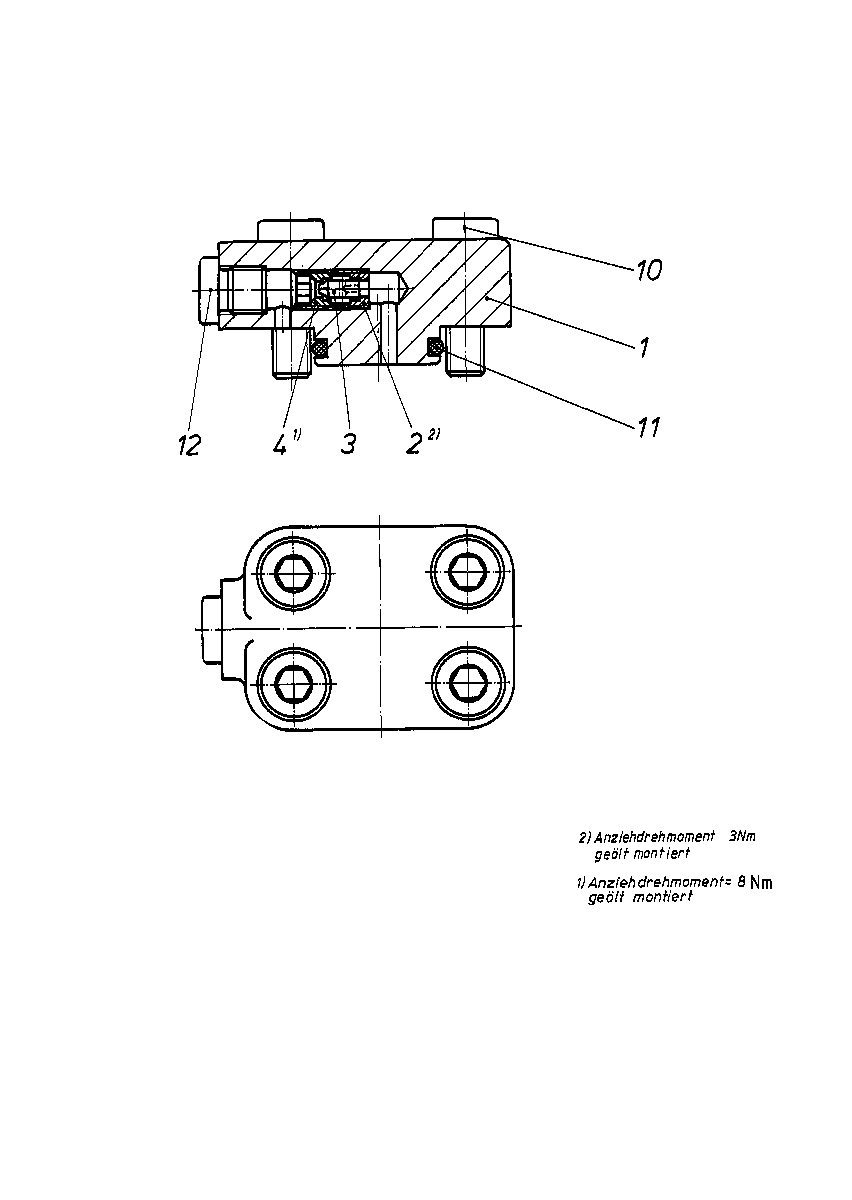

Assembly
COVERR909442263
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909415172 | COVER | 1 | ||
| 2 | R909400263 | THROTTLE SCREW | 1 | |
| 3 | R909425867 | THROTTLE PIN | 1 | |
| 4 | R909400264 | THROTTLE SCREW | 1 | |
| R909083090 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909086659 | O-RINGD | 1 | |
| R909151692 | SCREW PLUGD | 1 |
