Assembly

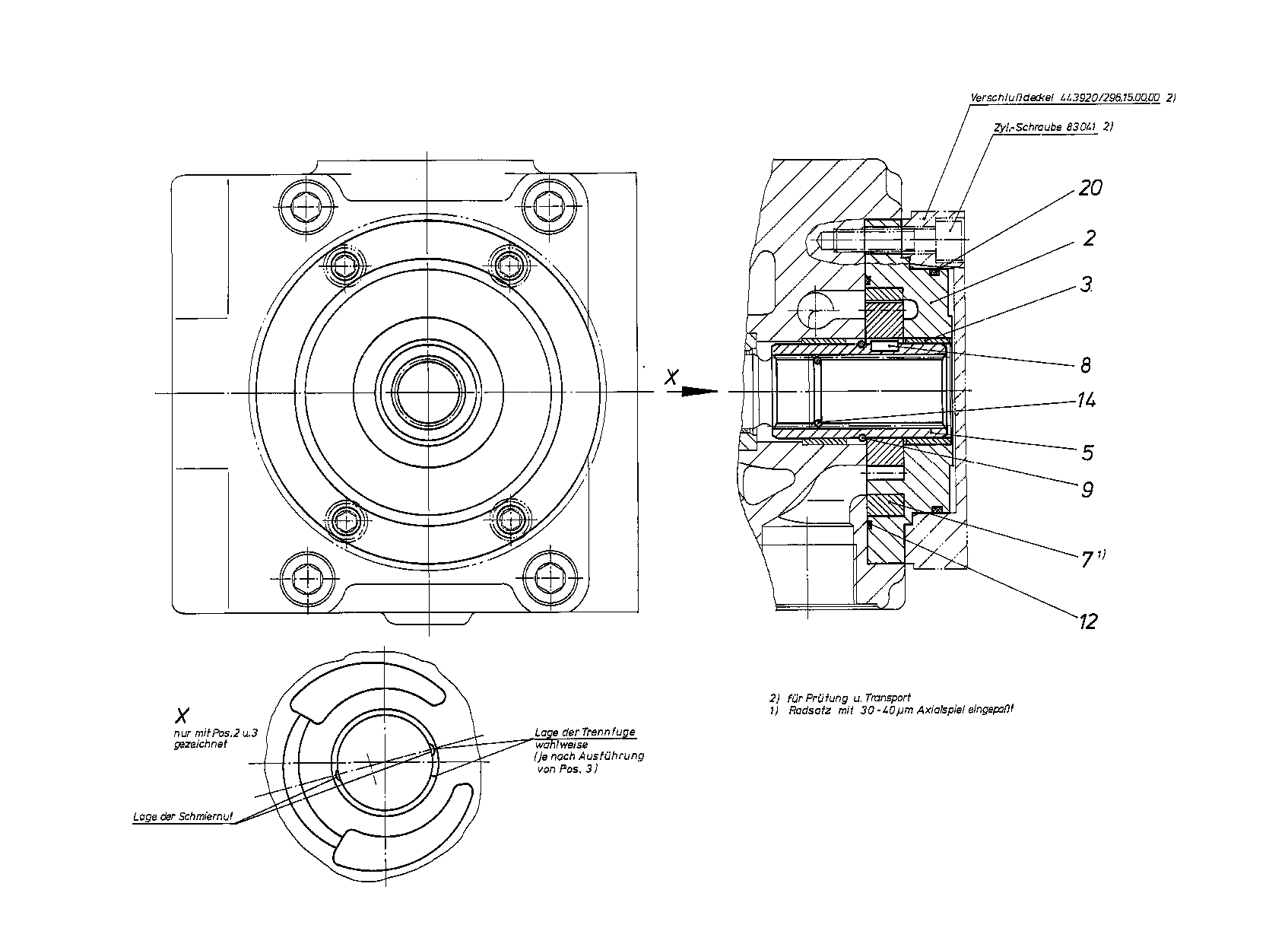

INTERNAL GEAR PUMPR909442331
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909439482 | PUMP COVER | 1 | ||
| 3 | R902260545 | BUSHING | 1 | |
| 5 | R902252295 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006254 | WHEEL SET | 1 | |
| 8 | R902025645 | PARALLEL KEY | 1 | |
| R913057533 | SNAP RING | 1 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 | ||
| R909083790 | O-RINGD | 1 |
