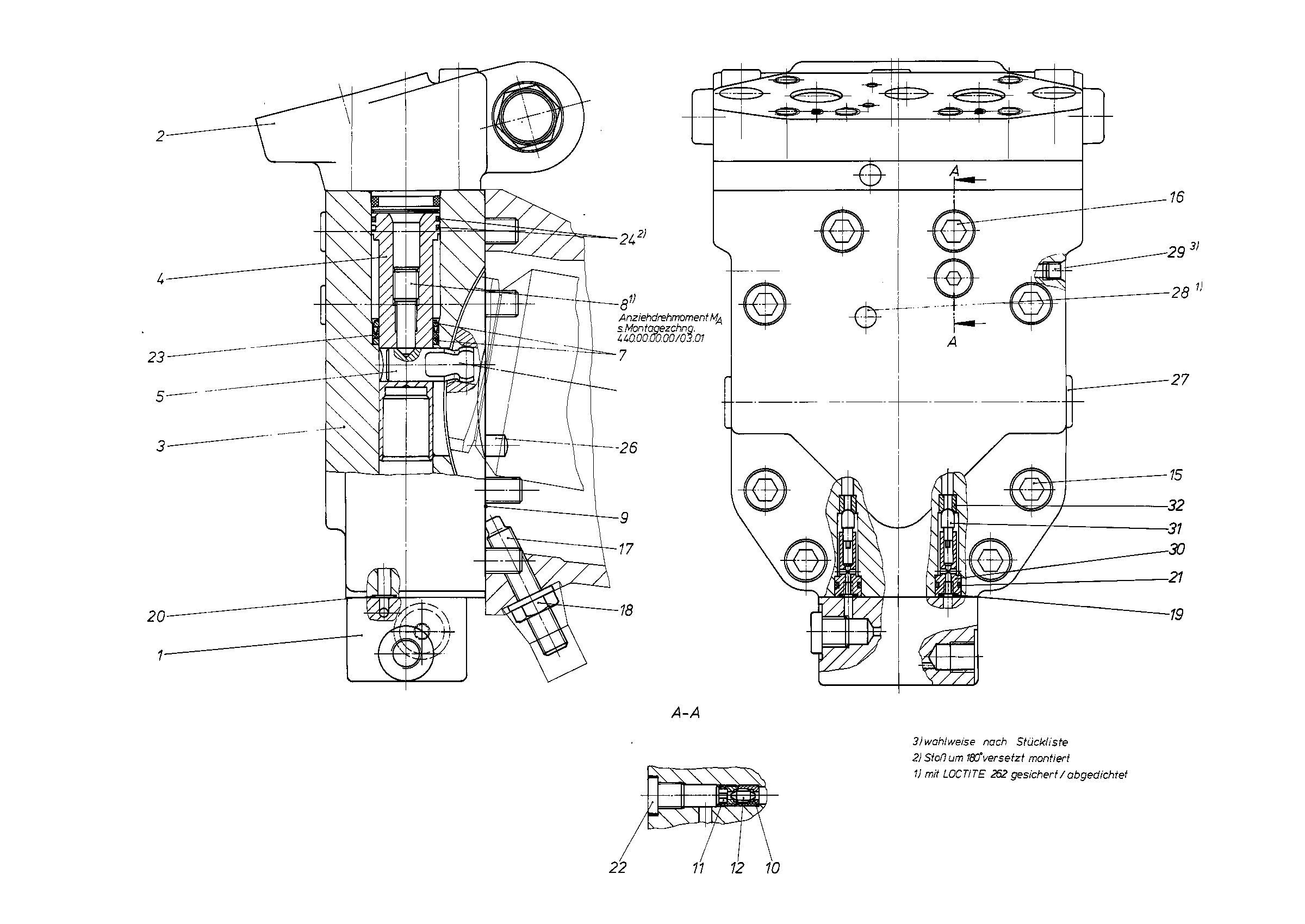

Assembly
CONTROLR909442360
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902000175 | CONTROL PART Assembly parts list →L | 1 | |
| R909437445 | CONNECTION COVER Assembly parts list →L | 1 | ||
| 3 | R909443893 | COVER PLATE | 1 | |
| 4 | R909422948 | POSITIONING PISTON | 1 | |
| 5 | R909422949 | POSITIONING STUD | 1 | |
| R909422950 | BACKUP RING | 2 | ||
| 8 | R909445016 | SETSCREW | 1 | |
| 9 | R909449478 | SEALD | 1 | |
| R909400263 | THROTTLE SCREW | 1 | ||
| 11 | R909400264 | THROTTLE SCREW | 1 | |
| R909411019 | THROTTLE PIN | 1 | ||
| R909083098 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909083101 | SOCKET HEAD CAP SCREW | 4 | |
| R909446862 | SETSCREW Assembly parts list →L | 1 | ||
| 18 | R909152459 | SEALING NUTD | 1 | |
| R909084469 | O-RINGD | 2 | ||
| 20 | R909086498 | O-RINGD | 2 | |
| 21 | R909085709 | O-RINGD | 2 | |
| R909151692 | SCREW PLUGD | 1 | ||
| 23 | R909156540 | ROD SEALD | 1 | |
| 24 | R902602841 | STEEL SEALING RINGD | 2 | |
| 25 | R902602322 | BACKUP RING | 2 | |
| R913009669 | STRAIGHT PIN | 2 | ||
| 27 | R909153815 | SCREW PLUGD | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 30 | R902075344 | VALVE GUIDE | 2 | |
| 31 | R909426662 | BOLT | 2 | |
| R902209845 | BUSHING | 2 |
