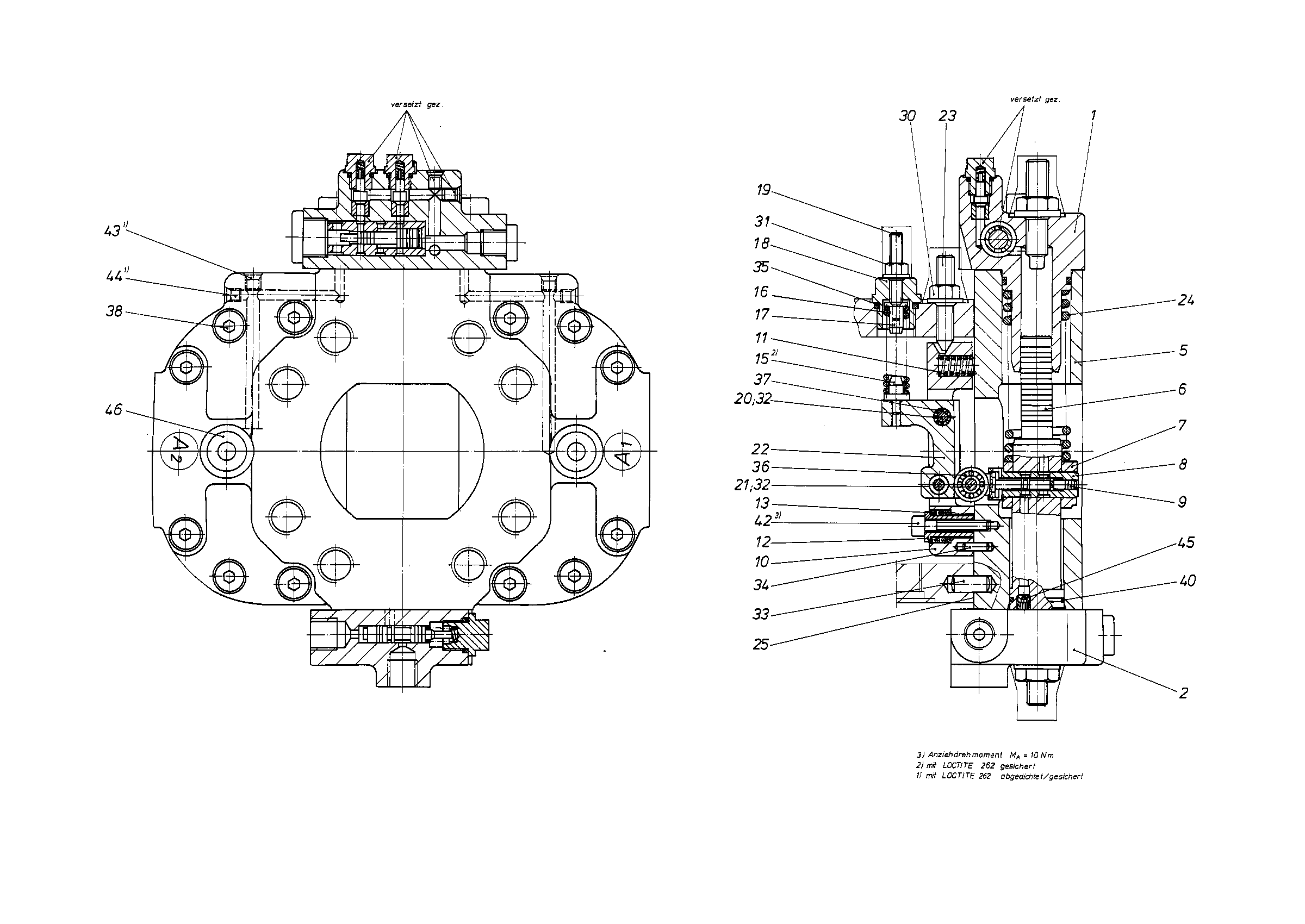

Assembly
CONTROLR909442381
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437833 | PRESSURE REGULATOR Assembly parts list →L | 1 | ||
| 2 | R909437834 | COVER Assembly parts list →L | 1 | |
| 5 | R909419291 | CONTROL HOUSING | 1 | |
| 6 | R909412856 | POSITIONING PISTON | 1 | |
| 7 | R909412857 | SWIVEL FORK | 1 | |
| 8 | R909412858 | CONTROL SLEEVE | 1 | |
| 9 | R909412859 | CONTROL PISTON | 1 | |
| R909418673 | BEARING PEDESTAL | 1 | ||
| R909073211 | COMPRESSION SPRING | 1 | ||
| R909418581 | BACK-UP BUSHING | 1 | ||
| R909418577 | COMPRESSION SPRING | 1 | ||
| 15 | R909439078 | SPRING DISK | 1 | |
| R909419643 | COMPRESSION SPRING | 1 | ||
| R909410247 | SPRING DISK | 1 | ||
| R909408614 | SCREW PLUG | 1 | ||
| 19 | R909439256 | SETSCREW | 1 | |
| 20 | R909415924 | BOLT | 2 | |
| R909411231 | BOLT | 1 | ||
| R909419627 | REGULATOR LEVER | 1 | ||
| 23 | R909412161 | SETSCREW | 1 | |
| R909408499 | COMPRESSION SPRING | 1 | ||
| 25 | R909650389 | SEALD | 1 | |
| 30 | R909152707 | SEALING NUTD | 1 | |
| 31 | R909157764 | SEALING NUT | 1 | |
| R909085810 | LOCKING WASHER | 6 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 2917890095 | STRAIGHT PIN | 1 | ||
| 35 | R909086435 | O-RINGD | 1 | |
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| 37 | R909156271 | NEEDLE-ROLLER ASSEMBLY | 1 | |
| 38 | R909083044 | SOCKET HEAD CAP SCREW | 12 | |
| 40 | R909156962 | R-RINGD | 1 | |
| 42 | R909083024 | SOCKET HEAD CAP SCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 44 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909156494 | NOZZLE | 1 | ||
| 46 | R909151979 | SCREW PLUGD | 2 |
