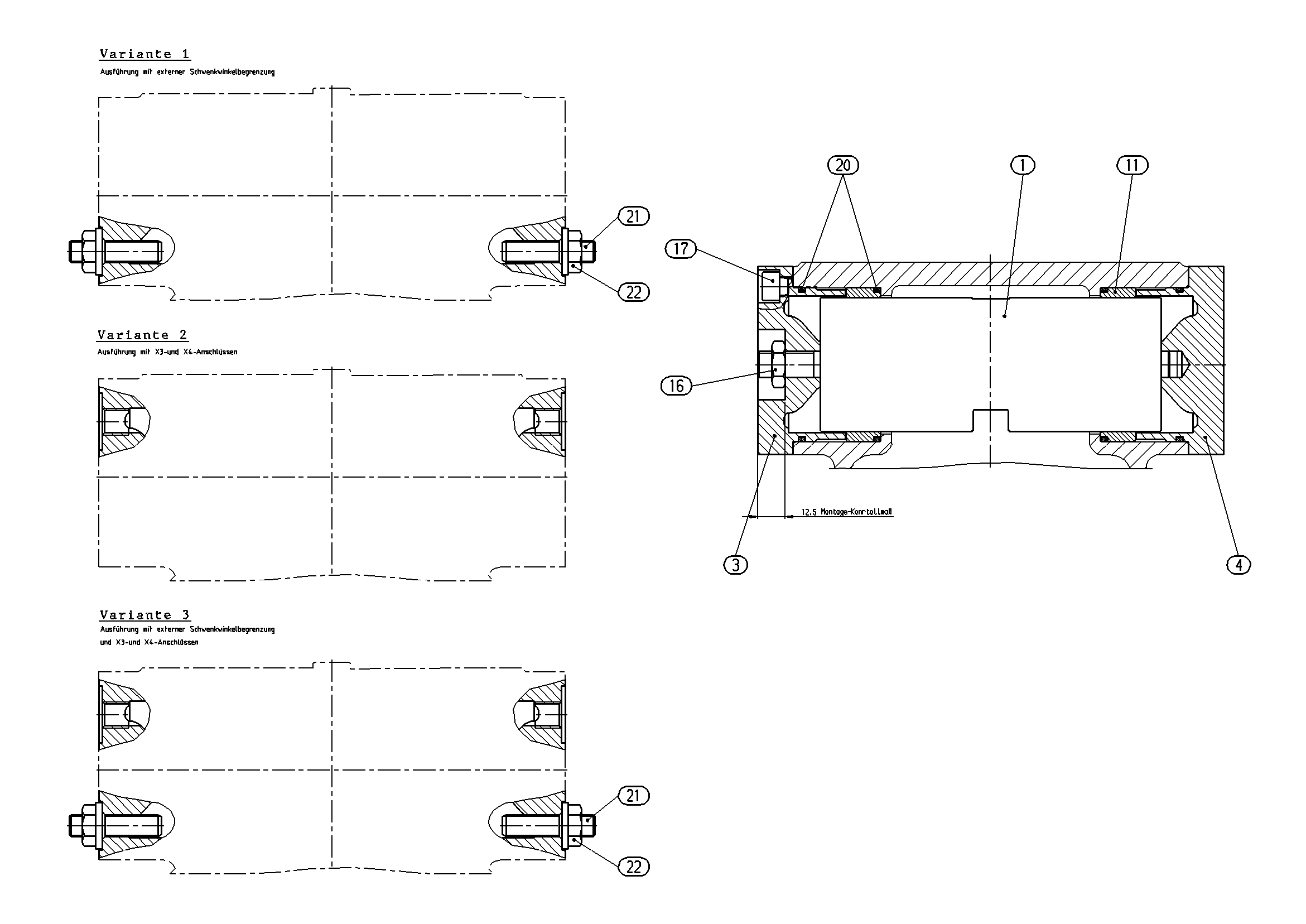

Assembly
CONTROLR909442400
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909652056 | POSITIONING PISTON | 1 | ||
| 2 | R909449238 | ROD | 1 | |
| R909436280 | COVER | 1 | ||
| R909436281 | COVER | 1 | ||
| 5 | R902015508 | RING | 2 | |
| 5 | R902013493 | RING | 1 | |
| 5 | R902015509 | RING | 1 | |
| 5 | R902015510 | RING | 1 | |
| 5 | R902015511 | RING | 1 | |
| 5 | R902015512 | RING | 1 | |
| 5 | R902015514 | RING | 1 | |
| 5 | R902015513 | RING | 1 | |
| 6 | R909400470 | SLEEVE | 2 | |
| 7 | R909449245 | SPRING DISK | 2 | |
| 8 | R909435635 | SPACER RING | 2 | |
| 8 | R909435636 | SPACER RING | 1 | |
| 8 | R909445782 | SPACER RING | 1 | |
| 8 | R909445783 | SPACER RING | 1 | |
| 8 | R909445784 | SPACER RING | 1 | |
| 8 | R909445785 | SPACER RING | 1 | |
| 9 | R909436244 | COMPRESSION SPRING | 2 | |
| 10 | R909436245 | COMPRESSION SPRING | 2 | |
| R909431867 | BUSHING | 2 | ||
| 12 | R909449246 | SPRING DISK | 2 | |
| 15 | R909083404 | RETAINING RING | 2 | |
| R909154918 | HEXAGON NUT | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| 18 | R909083250 | SPRING LOCK WASHER | 8 | |
| 19 | R909085709 | O-RINGD | 1 | |
| R909083785 | O-RINGD | 4 |
