Assembly

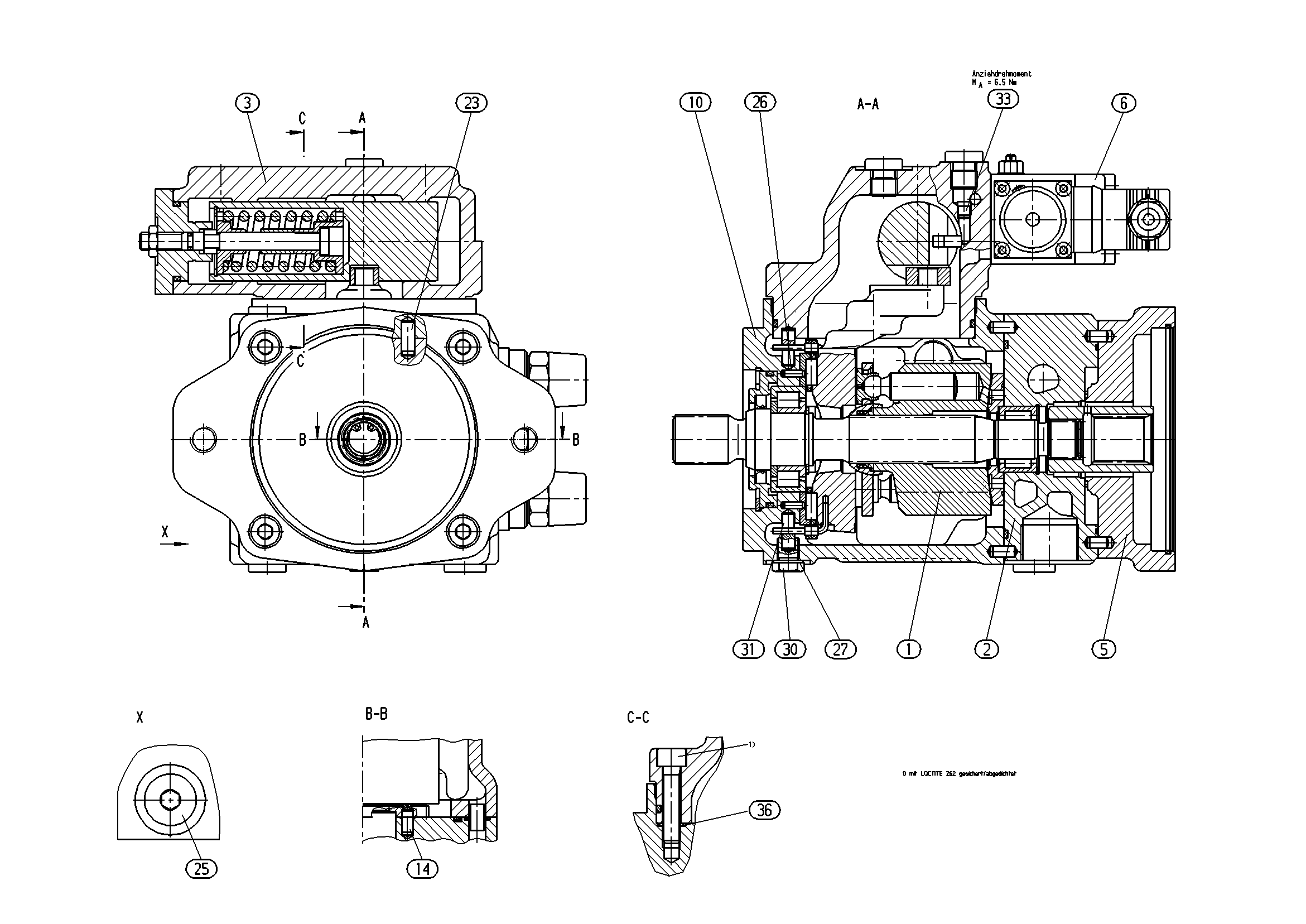

AXIAL-PISTON PUMPR909442457
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437133 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909442701 | CONTROL Assembly parts list →L | 1 | ||
| R909429416 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909401890 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909445912 | HOUSING | 1 | ||
| R909436324 | ECCENTRIC BOLT | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913017227 | SLOTTED SPRING PIN | 2 | ||
| R909152725 | SEAL RINGD | 1 | ||
| R909436089 | SCREW PLUG | 1 | ||
| R909436088 | PIVOT PIN | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R909831147 | O-RINGD | 4 | ||
| 98 | R902166668 | SEAL KIT | 1 |
