Assembly

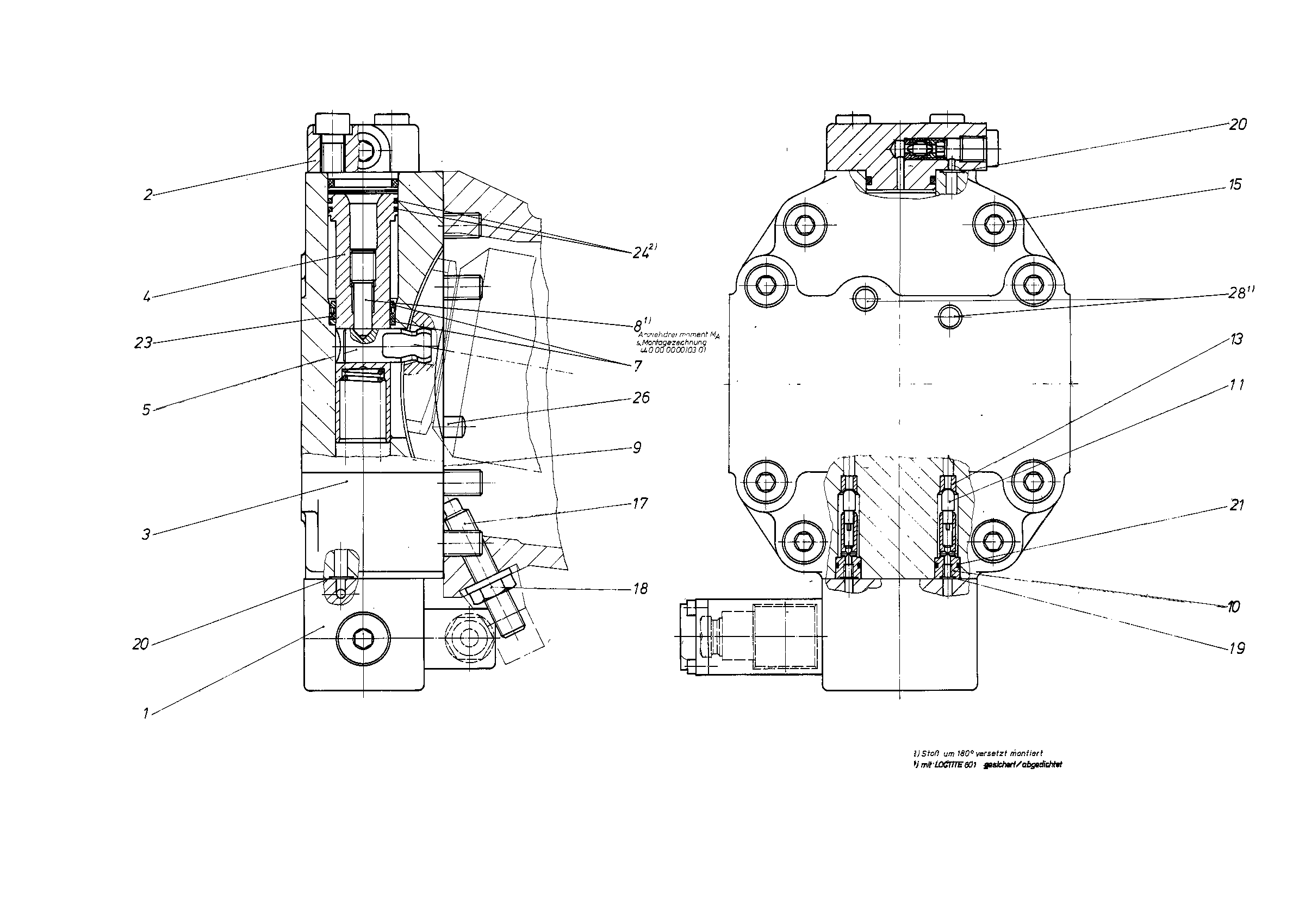

CONTROLR909442465
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442466 | CONTROL PART Assembly parts list →L | 1 | ||
| 2 | R909423156 | COVER Assembly parts list →L | 1 | |
| 3 | R909422933 | COVER PLATE | 1 | |
| 4 | R909422939 | POSITIONING PISTON | 1 | |
| 5 | R909422940 | POSITIONING STUD | 1 | |
| 7 | R909422941 | BACKUP RING | 2 | |
| 8 | R909445015 | SETSCREW | 1 | |
| 9 | R902011852 | SEALD | 1 | |
| 10 | R909422896 | VALVE GUIDE | 2 | |
| 11 | R909426662 | BOLT | 2 | |
| 13 | R902209845 | BUSHING | 2 | |
| R909083068 | SOCKET HEAD CAP SCREW | 8 | ||
| 17 | R909447003 | SETSCREW Assembly parts list →L | 1 | |
| 18 | R909152426 | SEALING NUTD | 1 | |
| R909083723 | O-RINGD | 2 | ||
| 20 | R909086498 | O-RINGD | 3 | |
| 21 | R909086380 | O-RINGD | 2 | |
| R909156715 | ROD SEALD | 1 | ||
| 24 | R902602840 | STEEL SEALING RINGD | 2 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
