Assembly

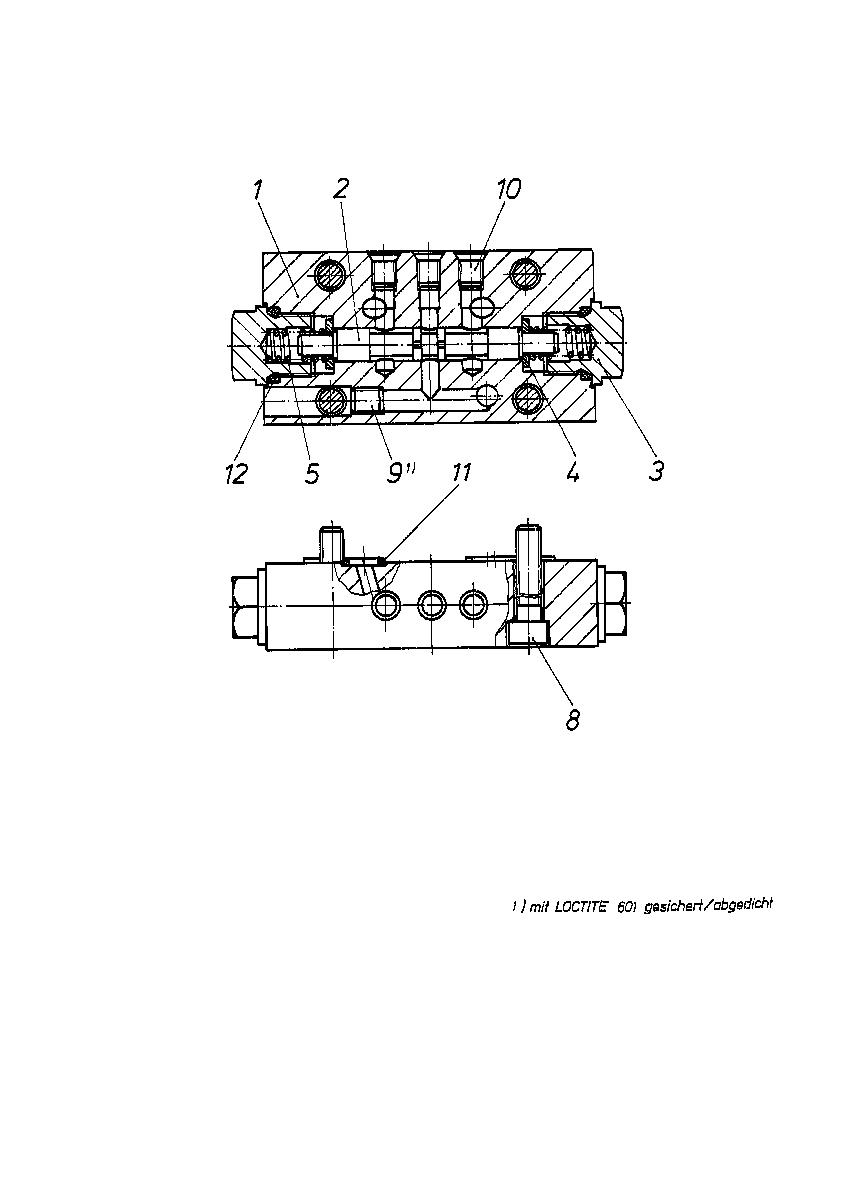

THROTTLE VALVER909442534
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440614 | HOUSING | 1 | ||
| 2 | R909435560 | CONTROL PISTON | 1 | |
| R909426000 | SCREW PLUG | 2 | ||
| R909426001 | WASHER | 2 | ||
| 5 | R909080802 | COMPRESSION SPRING | 2 | |
| 8 | R909086491 | SOCKET HEAD CAP SCREW | 4 | |
| 9 | R909083491 | SETSCREW | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 11 | R909086498 | O-RINGD | 5 | |
| R909086729 | O-RINGD | 2 |
