Assembly

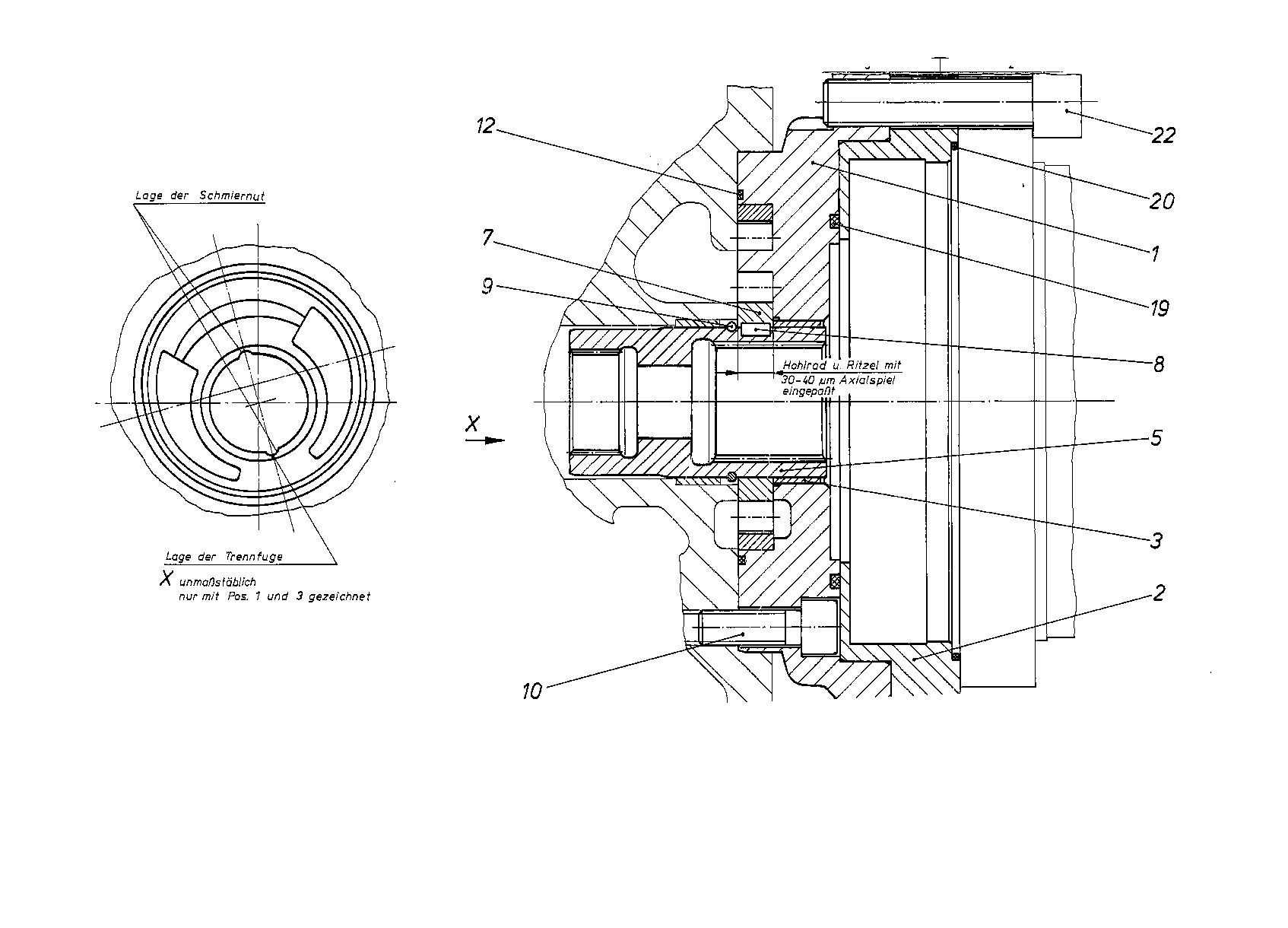

INTERNAL GEAR PUMPR909442665
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902031339 | INTERMEDIATE FLANGE | 1 | |
| 2 | R909444424 | INTERMEDIATE FLANGE | 1 | |
| 3 | R902260550 | BUSHING | 1 | |
| 5 | R909650380 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006258 | WHEEL SET | 1 | |
| 8 | R902025649 | PARALLEL KEY | 1 | |
| R909156930 | SNAP RING | 1 | ||
| R909083088 | SOCKET HEAD CAP SCREW | 4 | ||
| 12 | R909083825 | O-RINGD | 1 | |
| 19 | R909086823 | O-RINGD | 1 | |
| 20 | R913045131 | O-RINGD | 1 | |
| 22 | R909153287 | SOCKET HEAD CAP SCREW | 4 |
