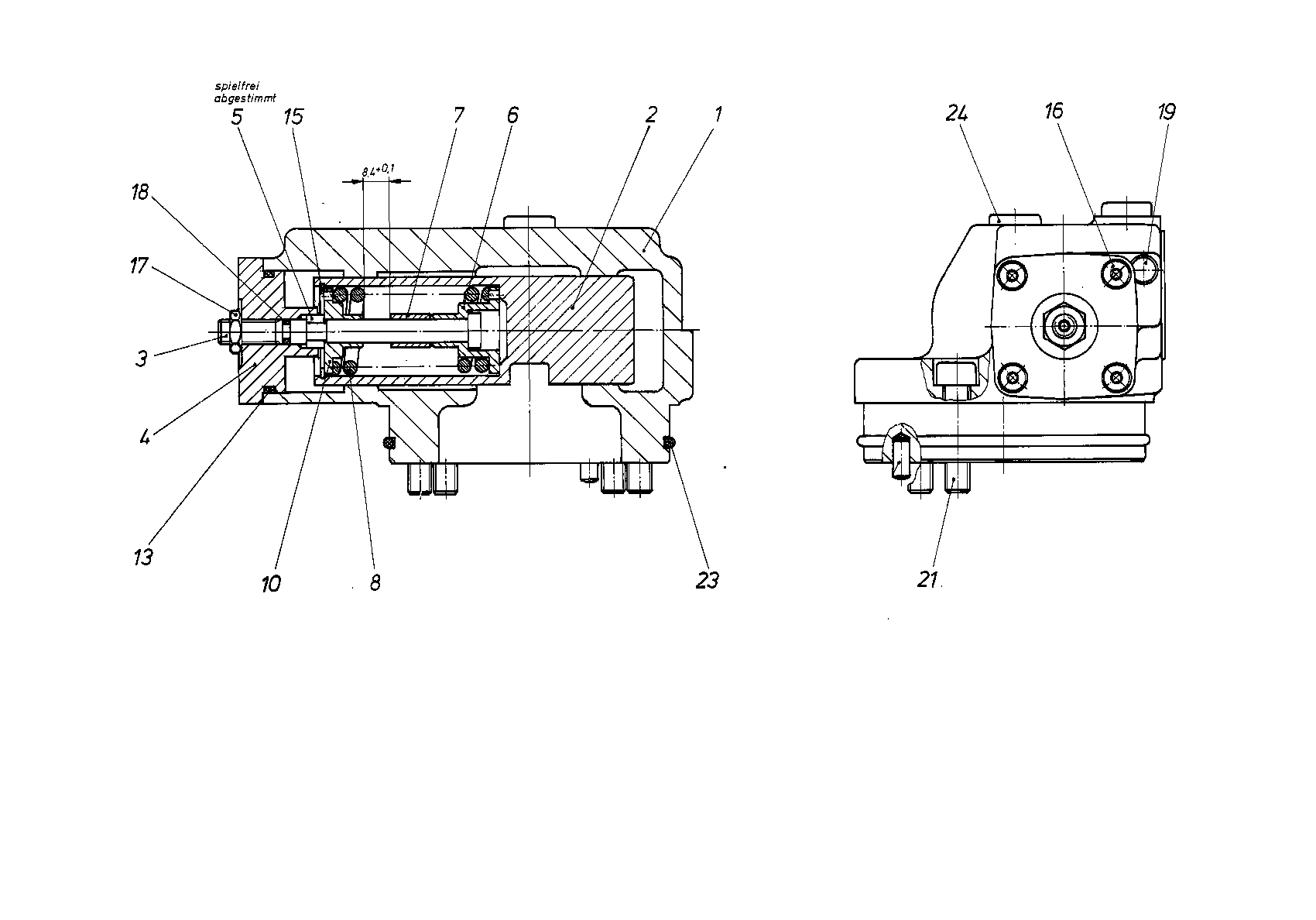

Assembly
CONTROLR909442699
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909921959 | HOUSING | 1 | |
| 2 | R902003847 | POSITIONING PISTON | 1 | |
| 3 | R909443022 | ROD | 1 | |
| 4 | R909445826 | COVER | 1 | |
| 5 | R902000896 | RING | 1 | |
| 5 | R902000897 | RING | 1 | |
| 5 | R902000898 | RING | 1 | |
| 5 | R909430940 | RING | 1 | |
| 5 | R909430941 | RING | 1 | |
| 5 | R909430942 | RING | 1 | |
| 5 | R902000899 | RING | 1 | |
| 5 | R902000900 | RING | 1 | |
| 5 | R902000901 | RING | 1 | |
| R909443068 | SPRING DISK | 1 | ||
| 7 | R909443080 | SPACER BUSHING | 1 | |
| 7 | R909445970 | SPACER BUSHING | 1 | |
| 7 | R909445971 | SPACER BUSHING | 1 | |
| 7 | R902000990 | SPACER BUSHING | 1 | |
| 7 | R902000991 | SPACER BUSHING | 1 | |
| 7 | R902039652 | SPACER BUSHING | 1 | |
| R909443158 | COMPRESSION SPRING | 1 | ||
| R909443067 | SPRING DISK | 1 | ||
| R909083769 | O-RINGD | 1 | ||
| 15 | R909830721 | V-RING | 1 | |
| 16 | R909083008 | SOCKET HEAD CAP SCREW | 4 | |
| R909830591 | HEXAGON NUT | 1 | ||
| R909084469 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 21 | R909083041 | SOCKET HEAD CAP SCREW | 4 | |
| R909085568 | O-RINGD | 1 | ||
| 24 | R909151692 | SCREW PLUGD | 3 | |
| 98 | R902166895 | SEAL KIT | 1 |
