Assembly

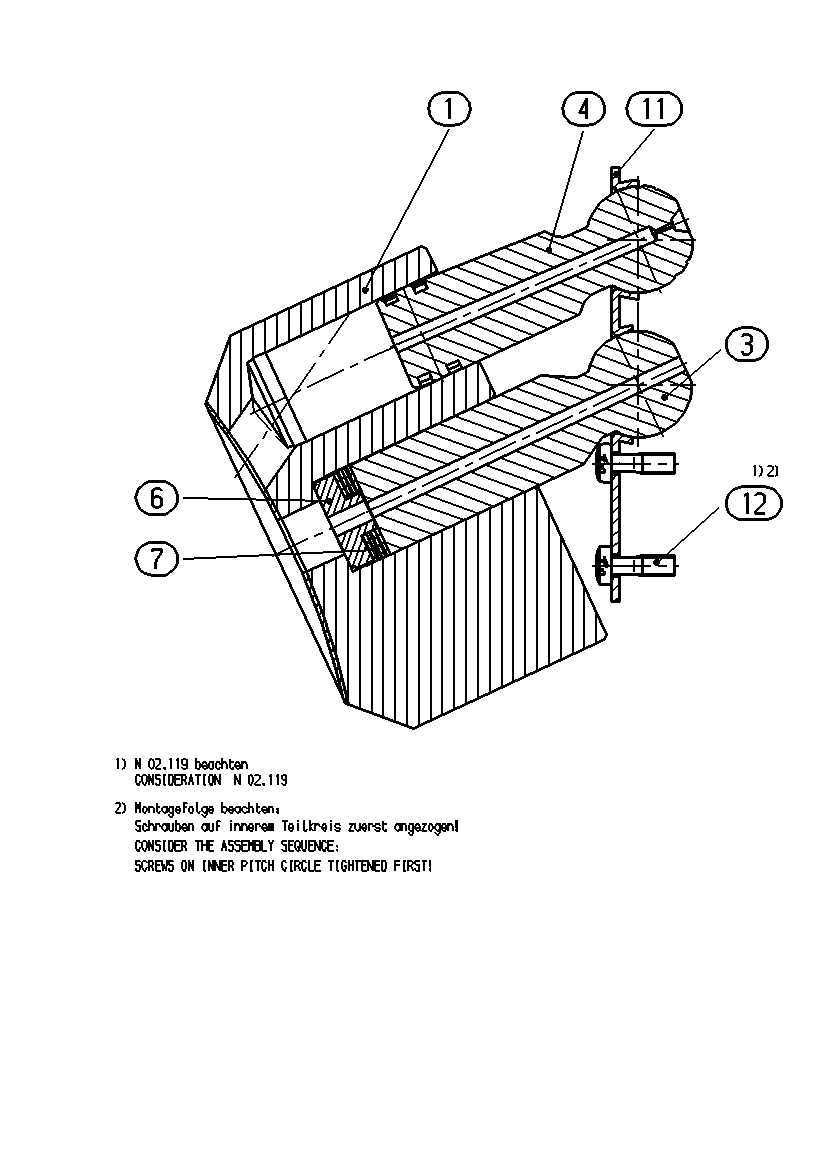

ROTARY GROUPR909442734
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909430886 | CYLINDER | 1 | |
| R909410289 | CENTER PIN | 1 | ||
| 4 | R902021903 | PISTON | 7 | |
| R902073931 | SPRING DISK Assembly parts list →L | 1 | ||
| 7 | R909409134 | DISC SPRING | 4 | |
| 11 | R902024999 | RETAINING PLATE | 1 | |
| 12 | R902602493 | PAN-HEAD SCREW | 14 |
