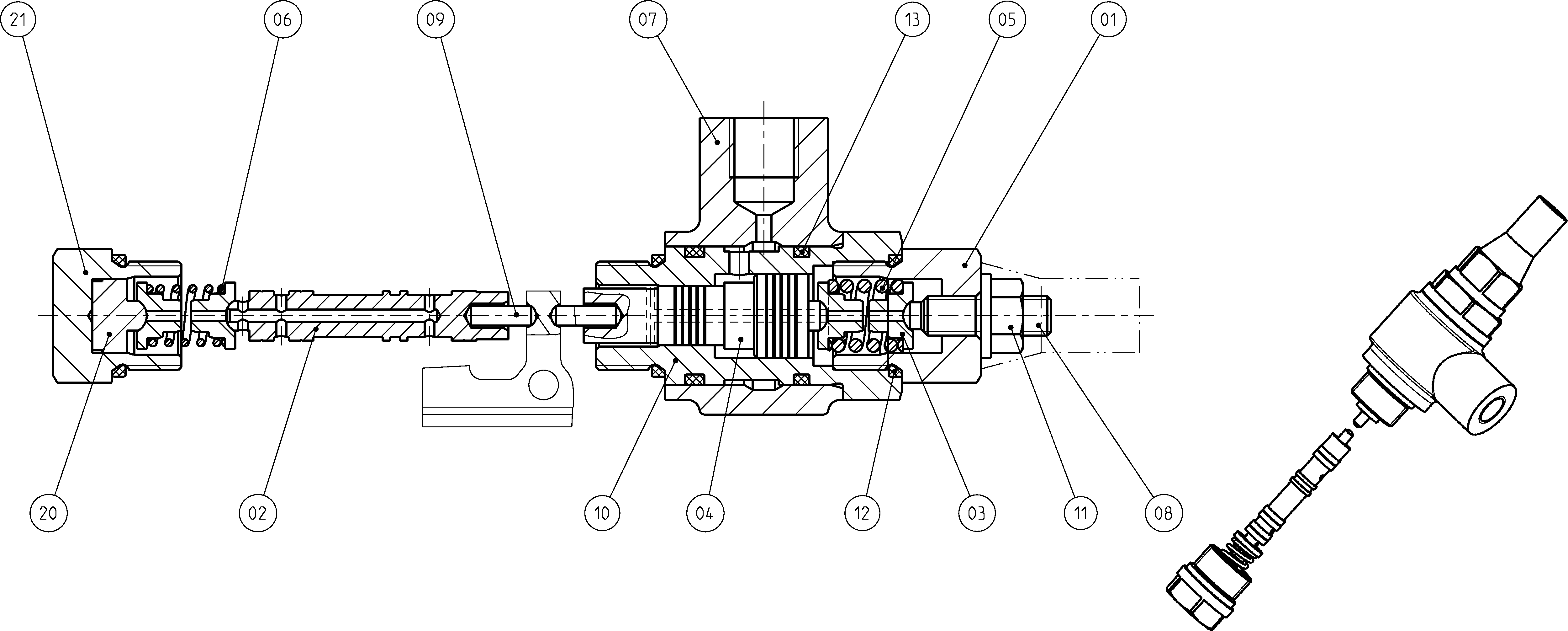

Assembly
CONTROL ELEMENTR909442750
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| 3 | R909436991 | SPRING BOLT | 4 | |
| 4 | R909650527 | DIFFERENTIAL PISTON | 1 | |
| 5 | R909443278 | COMPRESSION SPRING | 1 | |
| 6 | R909444559 | COMPRESSION SPRING | 1 | |
| 7 | R909419771 | CONNECTING PIECE | 1 | |
| R909444953 | SETSCREW | 1 | ||
| 9 | R909440794 | BOLT | 2 | |
| R902042716 | THREADED PART | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 3 | ||
| R909083761 | O-RINGD | 2 | ||
| R909449633 | CENTERING BOLT | 1 | ||
| R909449632 | SCREW PLUG | 1 |
