Assembly

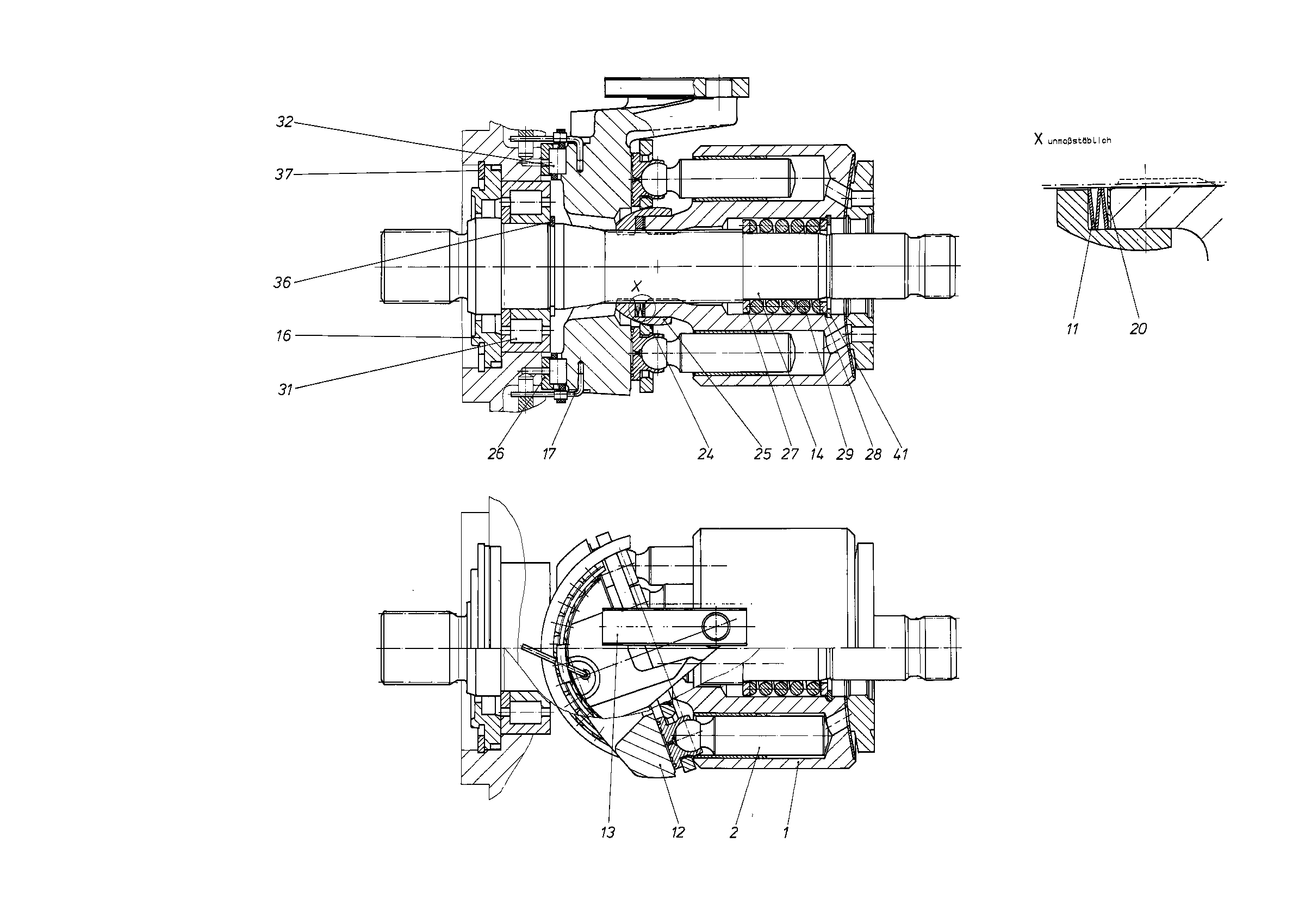

ROTARY GROUPR909442845
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909443953 | CYLINDER Assembly parts list →L | 1 | |
| 2 | R909416736 | PISTON PAD | 9 | |
| 11 | R909432353 | CUP-SPRING STACK | 1 | |
| R909443361 | CRADLE | 1 | ||
| R909449810 | SLIDER | 1 | ||
| 14 | R909435631 | DRIVE SHAFT | 1 | |
| R909426176 | LOCKING RINGD | 1 | ||
| R909076233 | WIRE | 2 | ||
| R909432987 | SHIM RING | 1 | ||
| R909432988 | SHIM RING | 1 | ||
| R909432989 | SHIM RING | 1 | ||
| R909432990 | SHIM RING | 1 | ||
| 24 | R909432143 | RETAINING PLATE | 1 | |
| 25 | R909432061 | RETAINING BALL | 1 | |
| R902066586 | BEARING SHELL PAIR | 1 | ||
| 27 | R909435409 | WASHER | 1 | |
| 28 | R909435408 | WASHER | 1 | |
| 29 | R909435254 | COMPRESSION SPRING | 1 | |
| 31 | R909153104 | CYL. ROLLER BEARING | 1 | |
| R909830152 | CAGE PAIR | 1 | ||
| R909083362 | RETAINING RING | 1 | ||
| R909154609 | RETAINING RING | 1 | ||
| 41 | R909083403 | RETAINING RING | 1 |
