Assembly
ROTARY GROUPR909442883

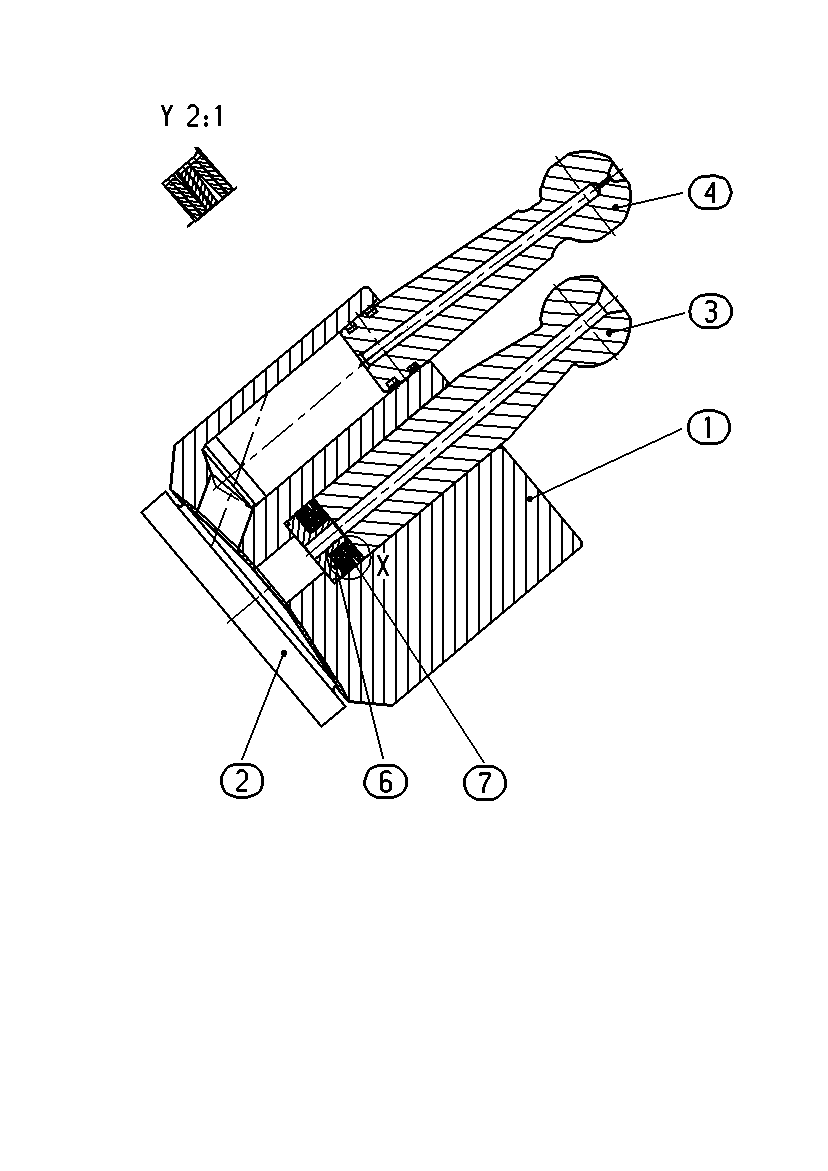

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909421307 | CYLINDER | 1 | |
| R909650833 | CONTROL PLATE | 1 | ||
| R909408461 | CENTER PIN | 1 | ||
| R902031676 | PISTON | 7 | ||
| 6 | R909444810 | SPRING DISK | 1 | |
| 6 | R909444811 | SPRING DISK | 1 | |
| 6 | R909444812 | SPRING DISK | 1 | |
| 6 | R909444813 | SPRING DISK | 1 | |
| 7 | R909081511 | DISC SPRING | 6 |
