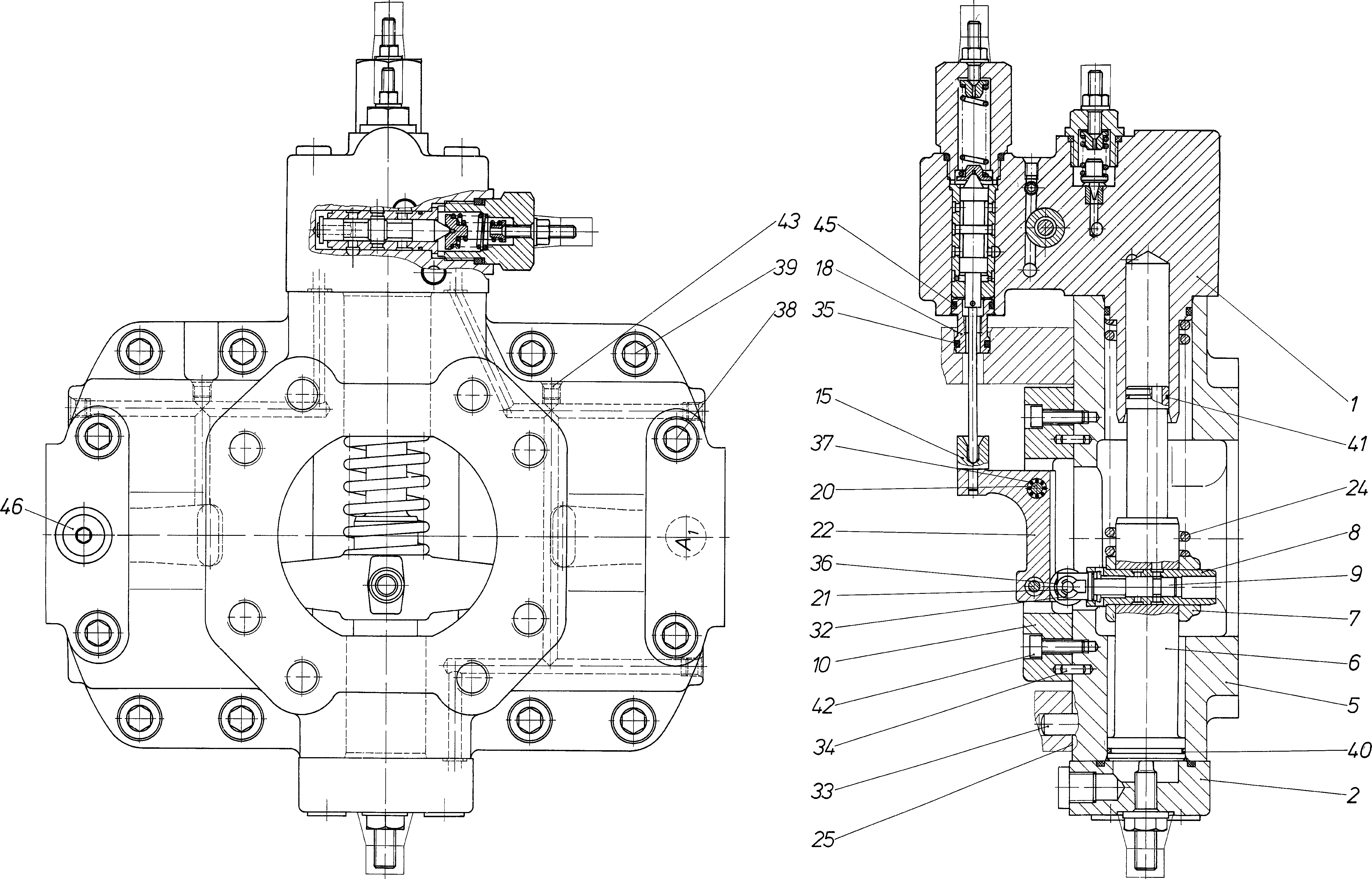

Assembly
CONTROLR909446067
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446068 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909429157 | COVER Assembly parts list →L | 1 | ||
| R909449518 | CONTROL HOUSING | 1 | ||
| R909439754 | POSITIONING PISTON | 1 | ||
| R909415118 | SWIVEL FORK | 1 | ||
| R909412866 | CONTROL SLEEVE | 1 | ||
| R909431462 | CONTROL PISTON | 1 | ||
| R902004381 | BEARING PEDESTAL | 1 | ||
| R909419620 | LOCATION PIECE | 1 | ||
| R902000208 | SEAL BUSHING | 1 | ||
| R909415924 | BOLT | 2 | ||
| R909411212 | BOLT | 1 | ||
| R909419629 | REGULATOR LEVER | 1 | ||
| R909410885 | COMPRESSION SPRING | 1 | ||
| R909650391 | SEALD | 1 | ||
| R909085810 | LOCKING WASHER | 6 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| 2917890095 | STRAIGHT PIN | 2 | ||
| R909086729 | O-RINGD | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909156271 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 8 | ||
| R909156647 | R-RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909086435 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 98 | R902166154 | SEAL KIT | 1 |
