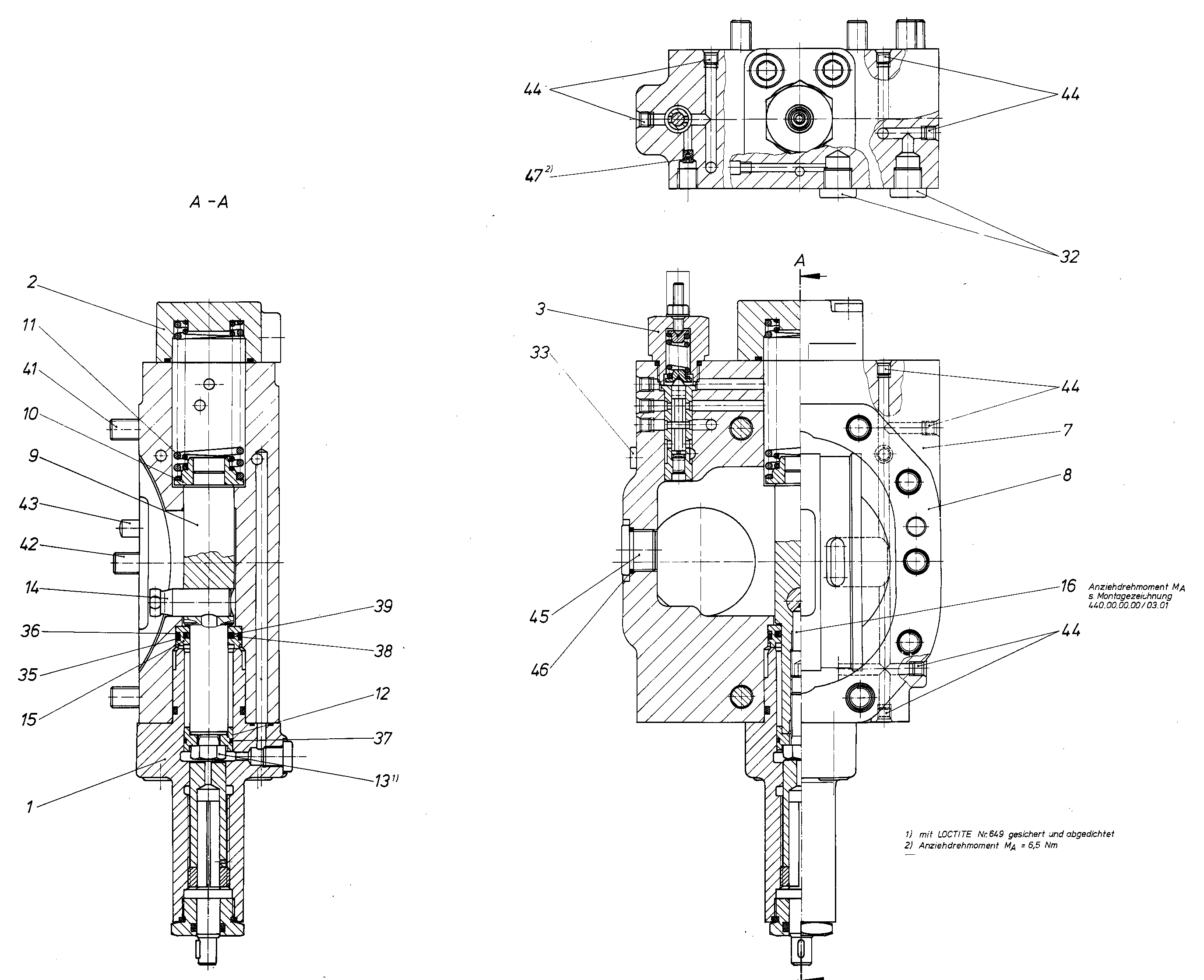

Assembly
CONTROLR909446211
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428006 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R909427188 | COVER Assembly parts list →L | 1 | ||
| R909427059 | CONTROL PART Assembly parts list →L | 1 | ||
| R909426424 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909426600 | POSITIONING PISTON | 1 | ||
| R909425732 | SPRING DISK | 1 | ||
| R909425746 | COMPRESSION SPRING | 1 | ||
| R909426605 | PISTON | 1 | ||
| R909083707 | HEXAGON SCREW | 1 | ||
| R909425459 | POSITIONING STUD | 1 | ||
| R909426606 | SEAL RING | 1 | ||
| R909409591 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909086347 | O-RINGD | 1 | ||
| R909157667 | BACKUP RINGD | 1 | ||
| R902602841 | STEEL SEALING RINGD | 1 | ||
| R909157666 | ROD SEALD | 1 | ||
| R909087513 | O-RINGD | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909156493 | NOZZLE | 1 |
