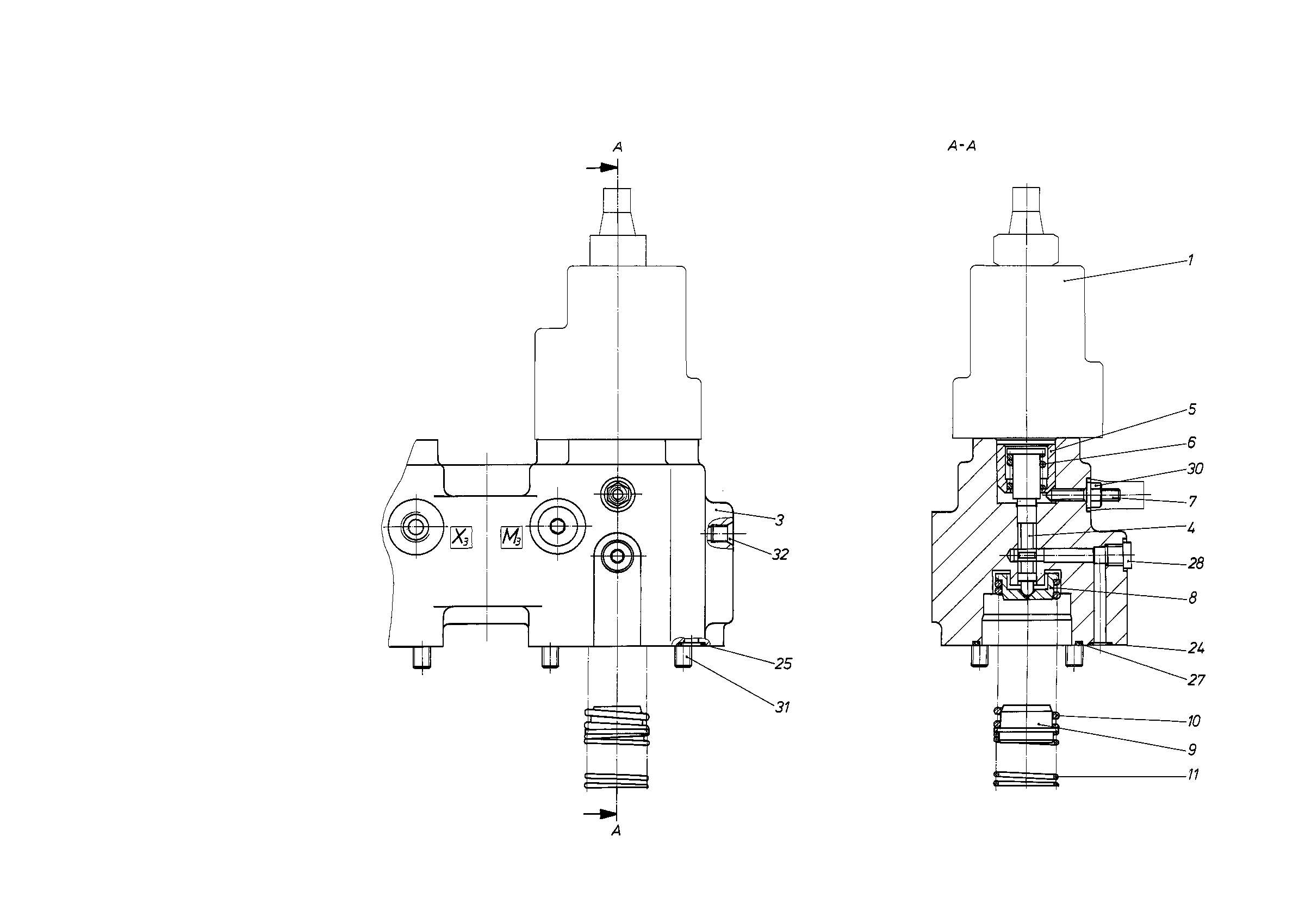

Assembly
CONTROL UNITR909446219
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909446220 | CONTROL UNIT Assembly parts list →L | 2 | |
| 3 | R902016935 | CONTROL HOUSING | 1 | |
| 4 | R909436035 | CONTROL PISTON | 2 | |
| 5 | R909426486 | SPRING BUSH | 2 | |
| 6 | R909432566 | COMPRESSION SPRING | 2 | |
| 7 | R909425219 | SETSCREW | 2 | |
| 8 | R902094546 | SPRING DISK | 2 | |
| 9 | R909445069 | SPRING DISK | 2 | |
| R909445061 | COMPRESSION SPRING | 2 | ||
| 11 | R909445060 | COMPRESSION SPRING | 2 | |
| R909085709 | O-RINGD | 2 | ||
| R909085709 | O-RINGD | 2 | ||
| — | O-RINGD | 2 | ||
| 28 | R909153364 | SCREW PLUGD | 2 | |
| 29 | R909151979 | SCREW PLUGD | 1 | |
| R909152425 | SEALING NUTD | 2 | ||
| 31 | R909083052 | SOCKET HEAD CAP SCREW | 6 | |
| — | DOUBLE BREAK-OFF PLUG | 2 |
