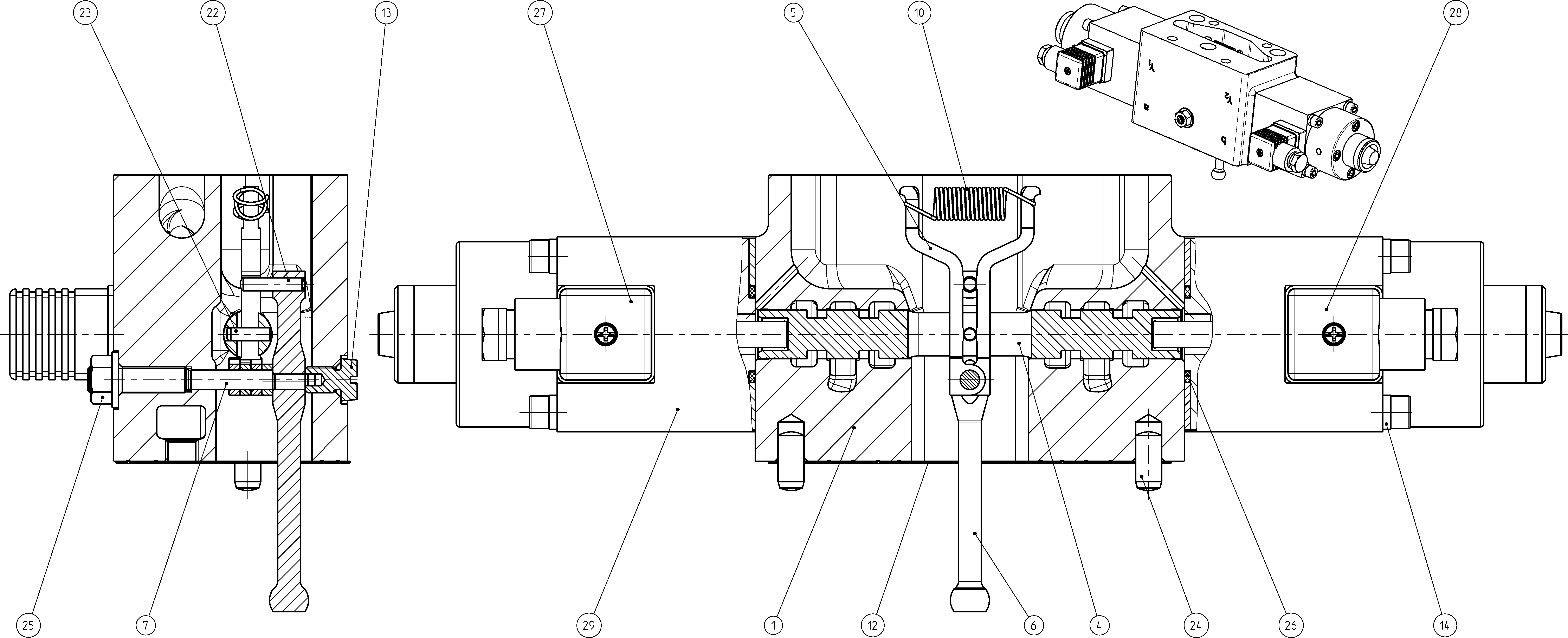

Assembly
CONTROL UNITR909446319
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909408816 | HOUSING | 1 | ||
| R909417171 | CONTROL PISTON | 1 | ||
| R909415653 | LEVER | 2 | ||
| R909403584 | FEEDBACK LEVER | 1 | ||
| R909408818 | ECCENTRIC PIN | 1 | ||
| R909415287 | EXTENSION SPRING | 1 | ||
| R909419242 | SEALD | 1 | ||
| R909651958 | SOCKET HEAD CAP SCREW | 1 | ||
| R909075422 | WASHER | 8 | ||
| R909153336 | NEEDLE-ROLLER | 1 | ||
| R909087694 | STRAIGHT PIN | 1 | ||
| R909087752 | STRAIGHT PIN | 2 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083761 | O-RINGD | 2 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428284 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 |
