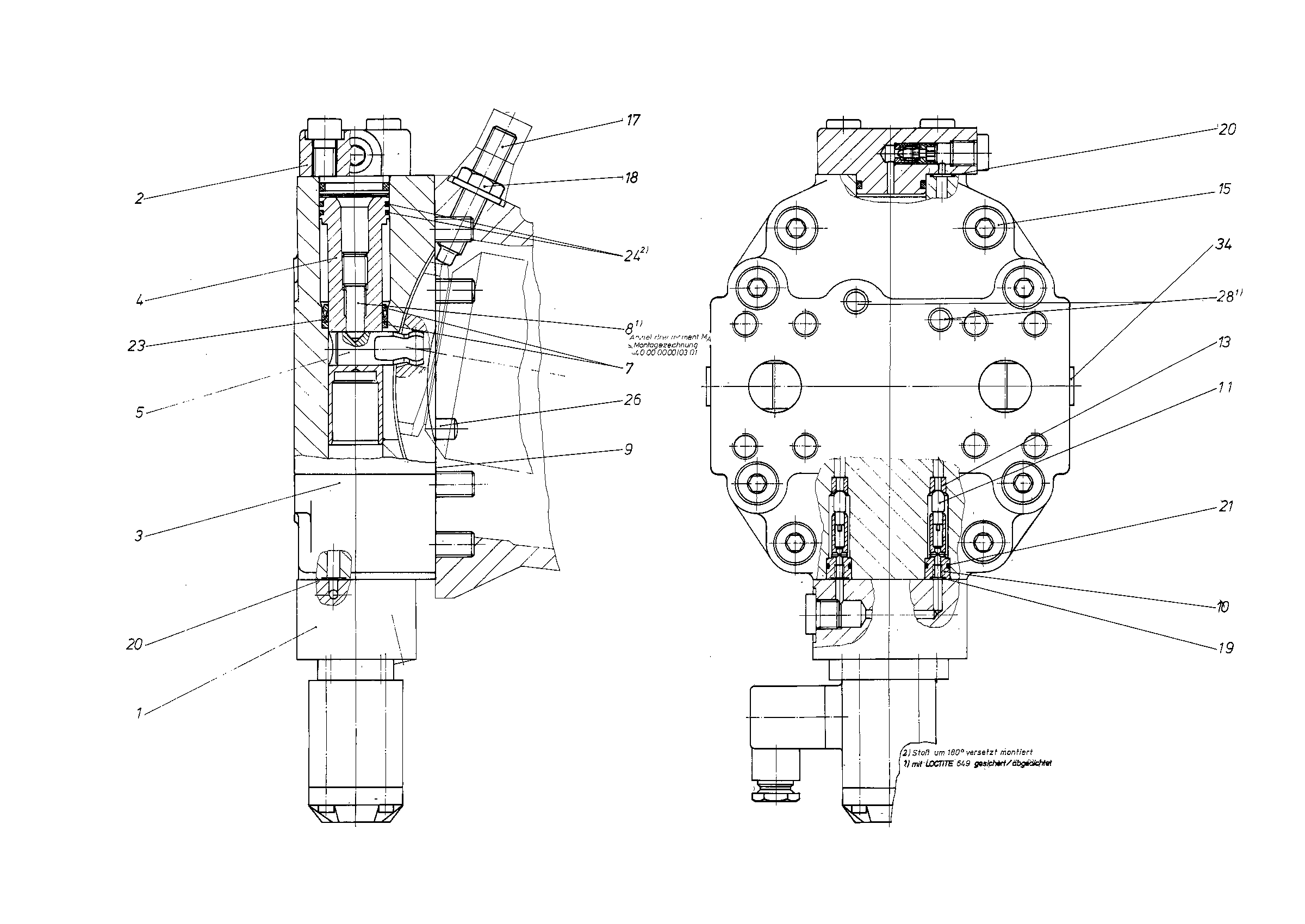

Assembly
CONTROLR909446346
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446371 | CONTROL PART Assembly parts list →L | 1 | ||
| 2 | R909423091 | COVER Assembly parts list →L | 1 | |
| 3 | R909440383 | COVER PLATE | 1 | |
| R909436334 | POSITIONING PISTON | 1 | ||
| 5 | R909422949 | POSITIONING STUD | 1 | |
| R909422950 | BACKUP RING | 2 | ||
| 8 | R909445016 | SETSCREW | 1 | |
| 9 | R902011855 | SEALD | 1 | |
| 10 | R902075344 | VALVE GUIDE | 2 | |
| 11 | R909426662 | BOLT | 2 | |
| 13 | R909412756 | BUSHING | 2 | |
| R909083097 | SOCKET HEAD CAP SCREW | 8 | ||
| R909447152 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909084469 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| 21 | R909085709 | O-RINGD | 2 | |
| 22 | R902602322 | BACKUP RING | 2 | |
| 23 | R909156540 | ROD SEALD | 1 | |
| 24 | R902602841 | STEEL SEALING RINGD | 2 | |
| R913009669 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909153815 | SCREW PLUGD | 2 |
