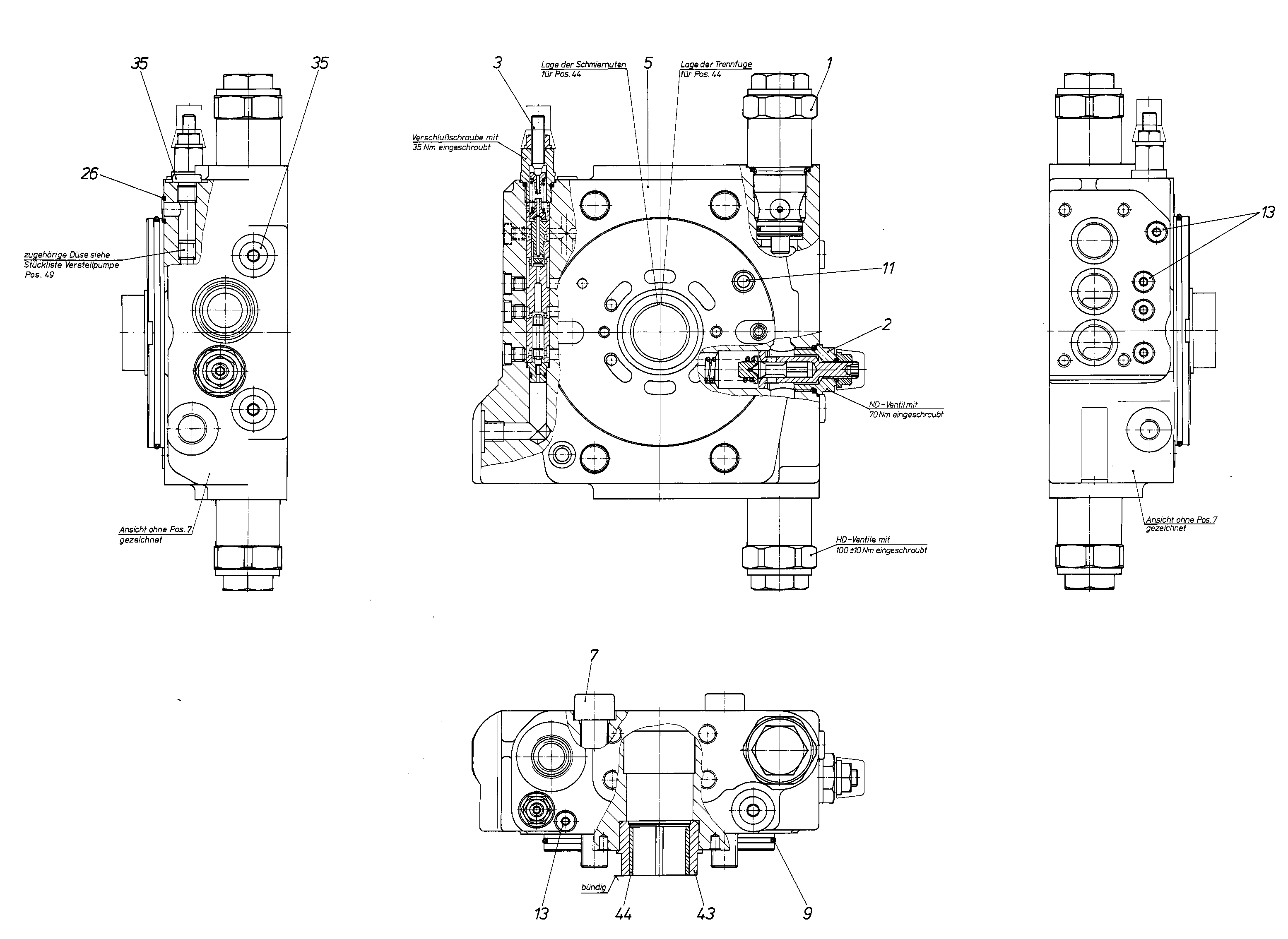

Assembly
CONNECTION PLATER909446434
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909409805 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902215658 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909437363 | PRESSURE CUT-OFF VALVE Assembly parts list →L | 1 | ||
| R909440197 | CONNECTION PLATE | 1 | ||
| R909083141 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830300 | O-RINGD | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 5 | ||
| R909086333 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909440537 | BUSHING | 1 | ||
| R902260552 | BUSHING | 1 |
