Assembly

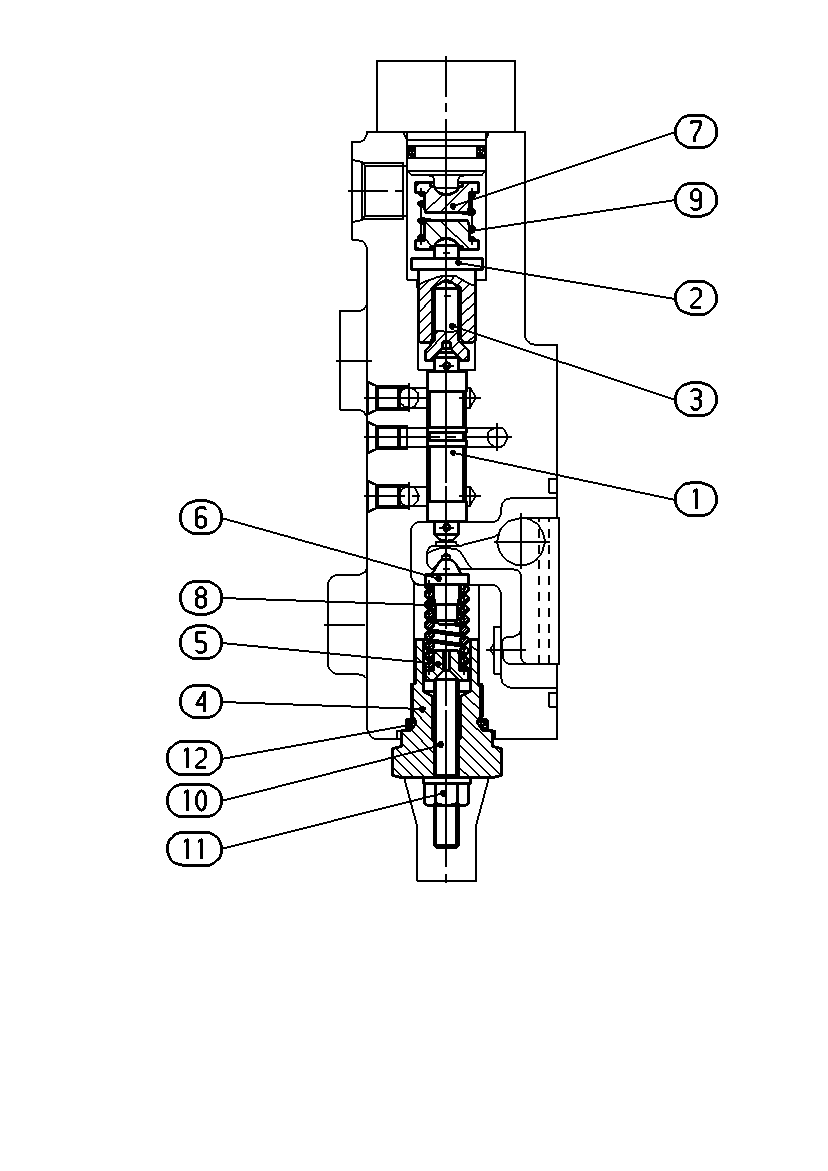

CONTROL ELEMENTR909447096
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432439 | CONTROL PISTON | 1 | |
| R909445558 | CONTROL PISTON | 1 | ||
| R909445559 | BOLT | 1 | ||
| R909445557 | SCREW PLUG | 1 | ||
| 5 | R909445563 | SPRING DISK | 1 | |
| R909445556 | SPRING BOLT | 1 | ||
| R909445560 | SPRING DISK | 2 | ||
| R909416364 | COMPRESSION SPRING | 1 | ||
| 9 | R902079208 | COMPRESSION SPRING | 1 | |
| R909157649 | SETSCREW | 1 | ||
| 11 | R909152425 | SEALING NUTD | 1 | |
| R909086435 | O-RINGD | 1 |
