Assembly

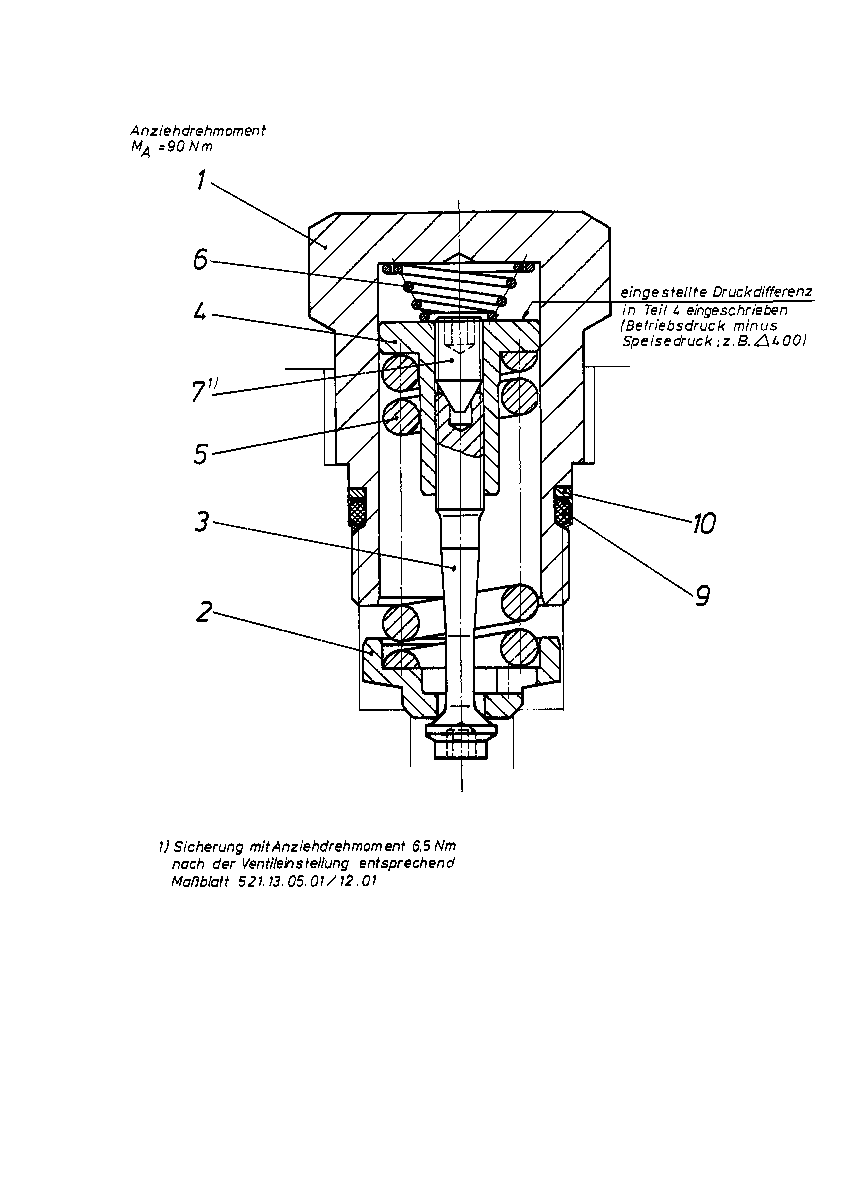

PRESSURE RELIEF VALVER909447133
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902272778 | SCREW PLUG | 1 | |
| 2 | R909444164 | VALVE PLATE | 1 | |
| 3 | R909445892 | VALVE STEM | 1 | |
| 4 | R909921949 | EXPANSION PIECE | 1 | |
| 5 | R909921948 | COMPRESSION SPRING | 1 | |
| 6 | R902215544 | COMPRESSION SPRING | 1 | |
| 7 | R909430709 | SETSCREW | 1 | |
| 9 | R909083761 | O-RINGD | 1 | |
| R909831768 | BACKUP RINGD | 1 |
