Assembly

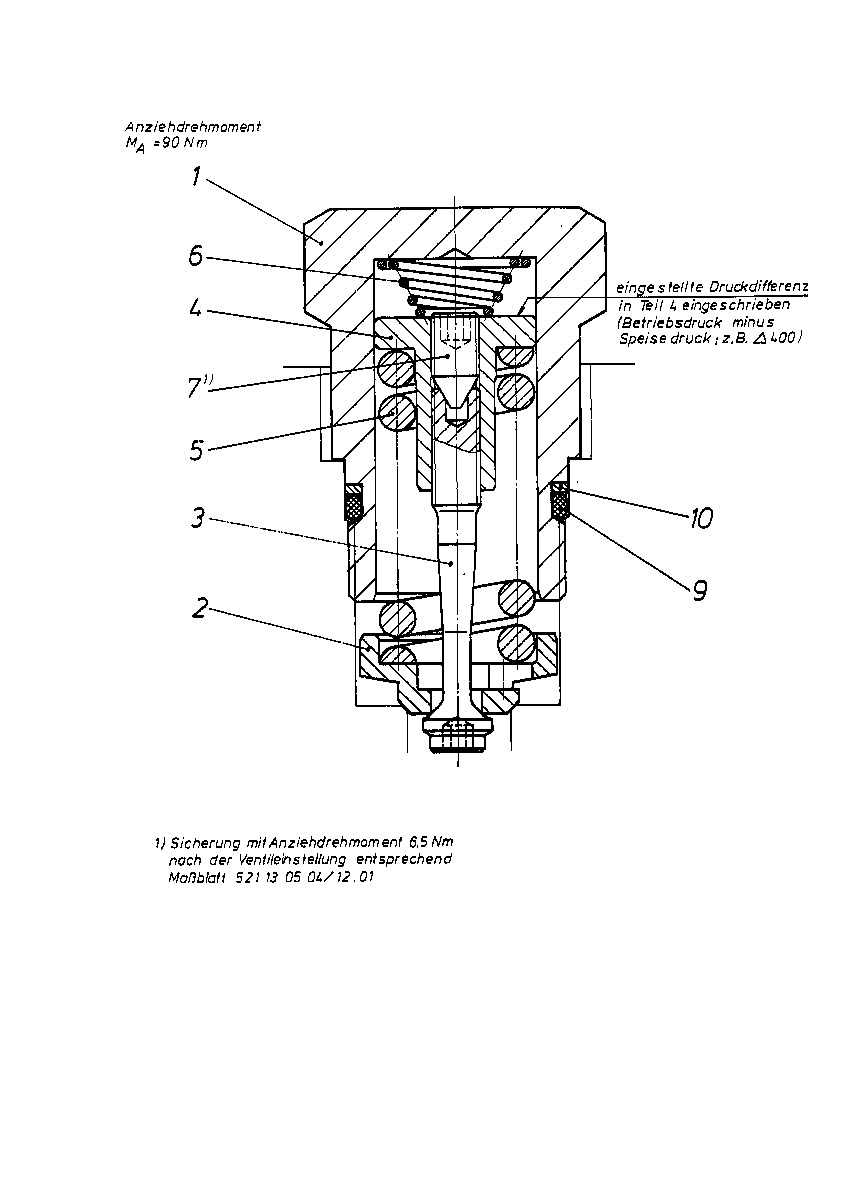

PRESSURE RELIEF VALVER909447135
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902272778 | SCREW PLUG | 1 | |
| 2 | R909444989 | VALVE PLATE | 1 | |
| 3 | R909445892 | VALVE STEM | 1 | |
| 4 | R909921949 | EXPANSION PIECE | 1 | |
| 5 | R909435227 | COMPRESSION SPRING | 1 | |
| 6 | R909425925 | COMPRESSION SPRING | 1 | |
| R909430709 | SETSCREW | 1 | ||
| 9 | R909083761 | O-RINGD | 1 | |
| R909831768 | BACKUP RINGD | 1 |
