Assembly

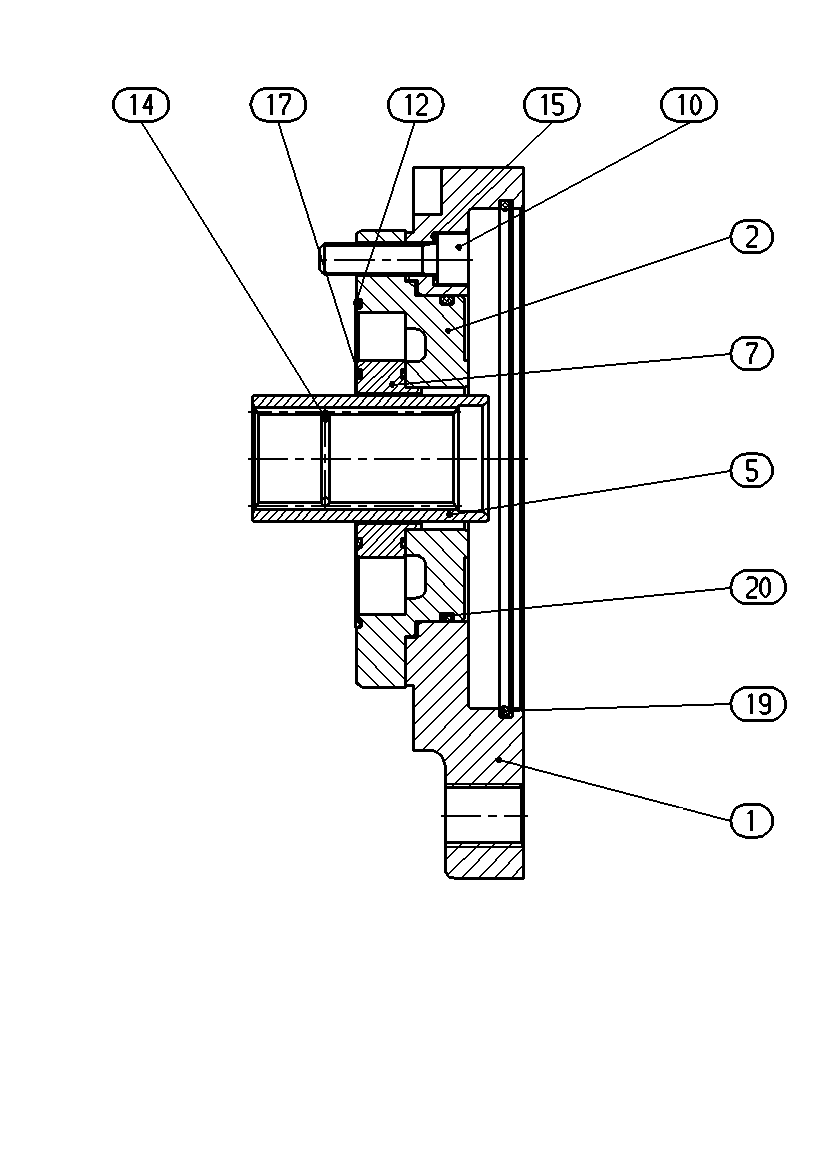

BELL HOUSINGR909447323
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909435041 | INTERMEDIATE FLANGE | 1 | |
| R909439482 | PUMP COVER | 1 | ||
| R902152540 | THROUGH DRIVE COUPLING | 1 | ||
| R909430217 | SEAL RING | 1 | ||
| R909087242 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R909085362 | O-RINGD | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
