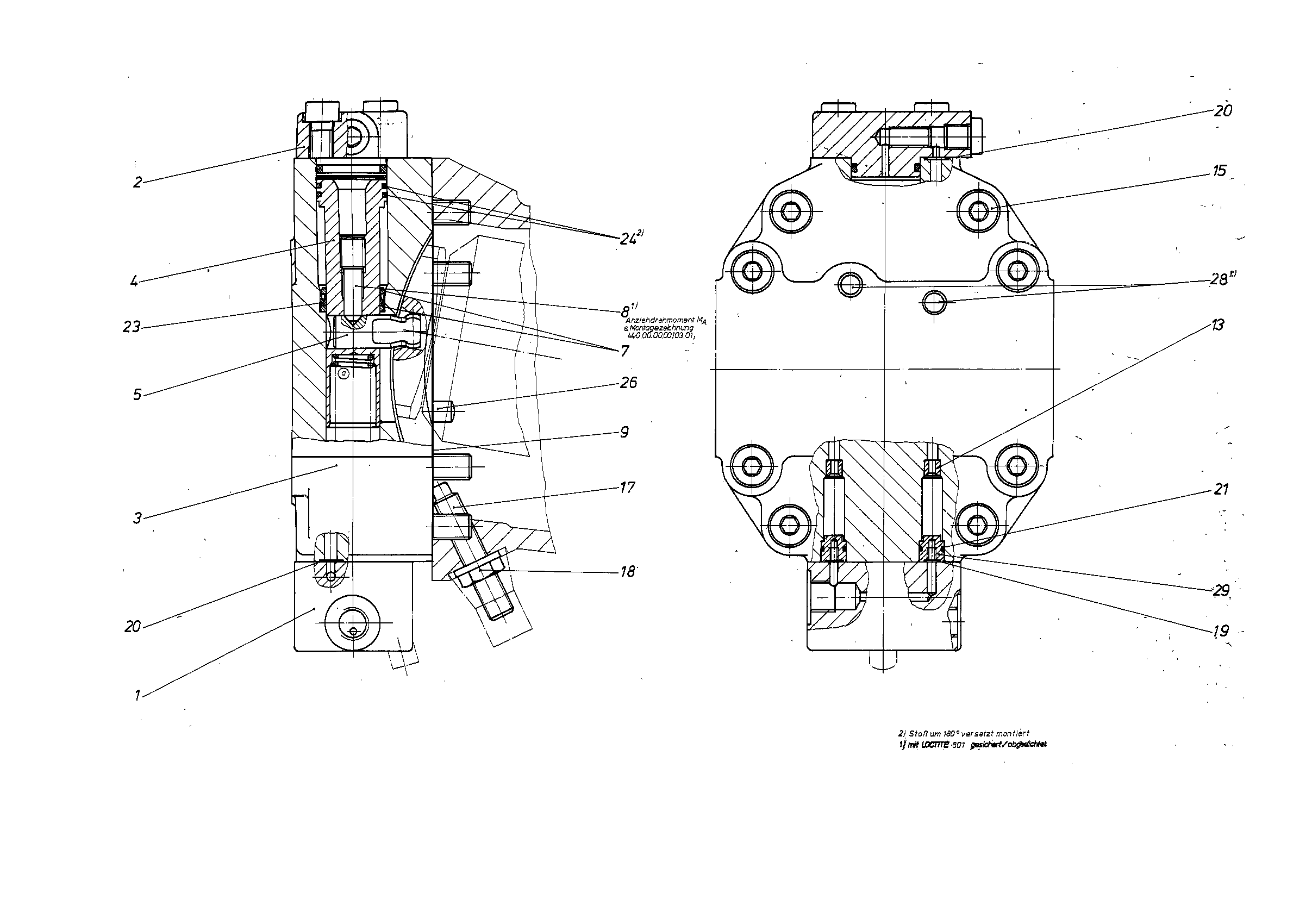

Assembly
CONTROLR909447469
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909441288 | CONTROL PART Assembly parts list →L | 1 | |
| 2 | R909423178 | COVER Assembly parts list →L | 1 | |
| 3 | R909435168 | COVER PLATE | 1 | |
| 4 | R909431768 | POSITIONING PISTON | 1 | |
| 5 | R909422021 | POSITIONING STUD | 1 | |
| 7 | R909424090 | BACKUP RING | 2 | |
| 8 | R909445922 | SETSCREW | 1 | |
| 9 | R902011856 | SEALD | 1 | |
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909447152 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909084469 | O-RINGD | 2 | ||
| 20 | R909086498 | O-RINGD | 3 | |
| R909085709 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| 23 | R909156542 | ROD SEALD | 1 | |
| 24 | R909156479 | R-RINGD | 2 | |
| R913009666 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R902075345 | PLUG | 2 | |
| 34 | R909153860 | SCREW PLUGD | 2 |
