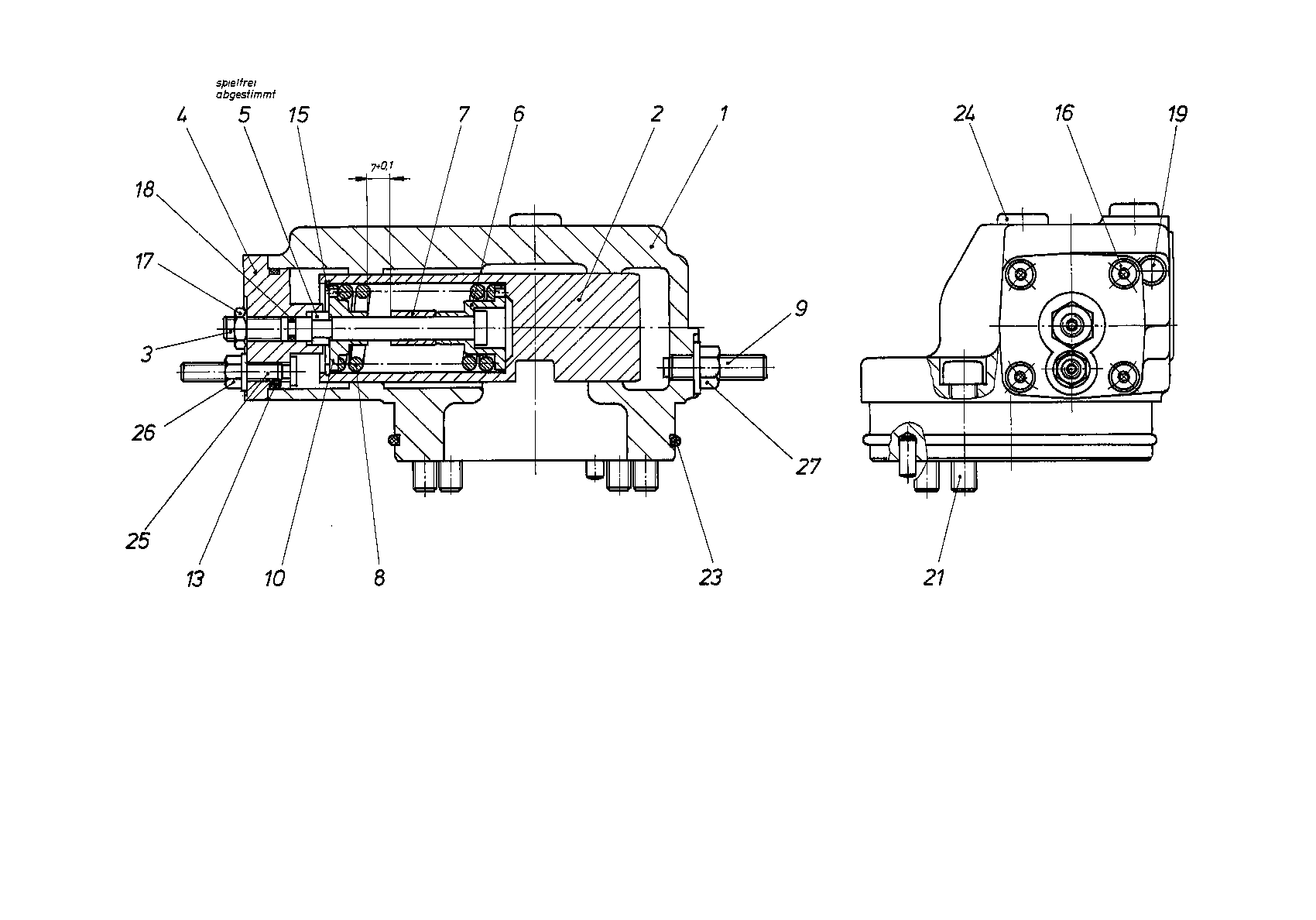

Assembly
CONTROLR909447684
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909921961 | HOUSING | 1 | |
| R902003847 | POSITIONING PISTON | 1 | ||
| 3 | R909443022 | ROD | 1 | |
| 4 | R909445862 | COVER | 1 | |
| 5 | R902000896 | RING | 1 | |
| 5 | R902000897 | RING | 1 | |
| 5 | R902000898 | RING | 1 | |
| 5 | R909430940 | RING | 1 | |
| 5 | R909430941 | RING | 1 | |
| 5 | R909430942 | RING | 1 | |
| 5 | R902000899 | RING | 1 | |
| 5 | R902000900 | RING | 1 | |
| 5 | R902000901 | RING | 1 | |
| 6 | R909443068 | SPRING DISK | 1 | |
| R909443083 | SPACER BUSHING | 1 | ||
| R909445968 | SPACER BUSHING | 1 | ||
| R909445969 | SPACER BUSHING | 1 | ||
| R902039651 | SPACER BUSHING | 1 | ||
| R909443158 | COMPRESSION SPRING | 1 | ||
| 9 | R909430823 | SETSCREW | 1 | |
| R909443067 | SPRING DISK | 1 | ||
| 13 | R909083769 | O-RINGD | 1 | |
| R909830721 | V-RING | 1 | ||
| R909083008 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909830591 | HEXAGON NUT | 1 | |
| R909084469 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083041 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085568 | O-RINGD | 1 | ||
| 24 | R909151692 | SCREW PLUGD | 3 | |
| R909443264 | STOP SCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909152707 | SEALING NUTD | 1 |
