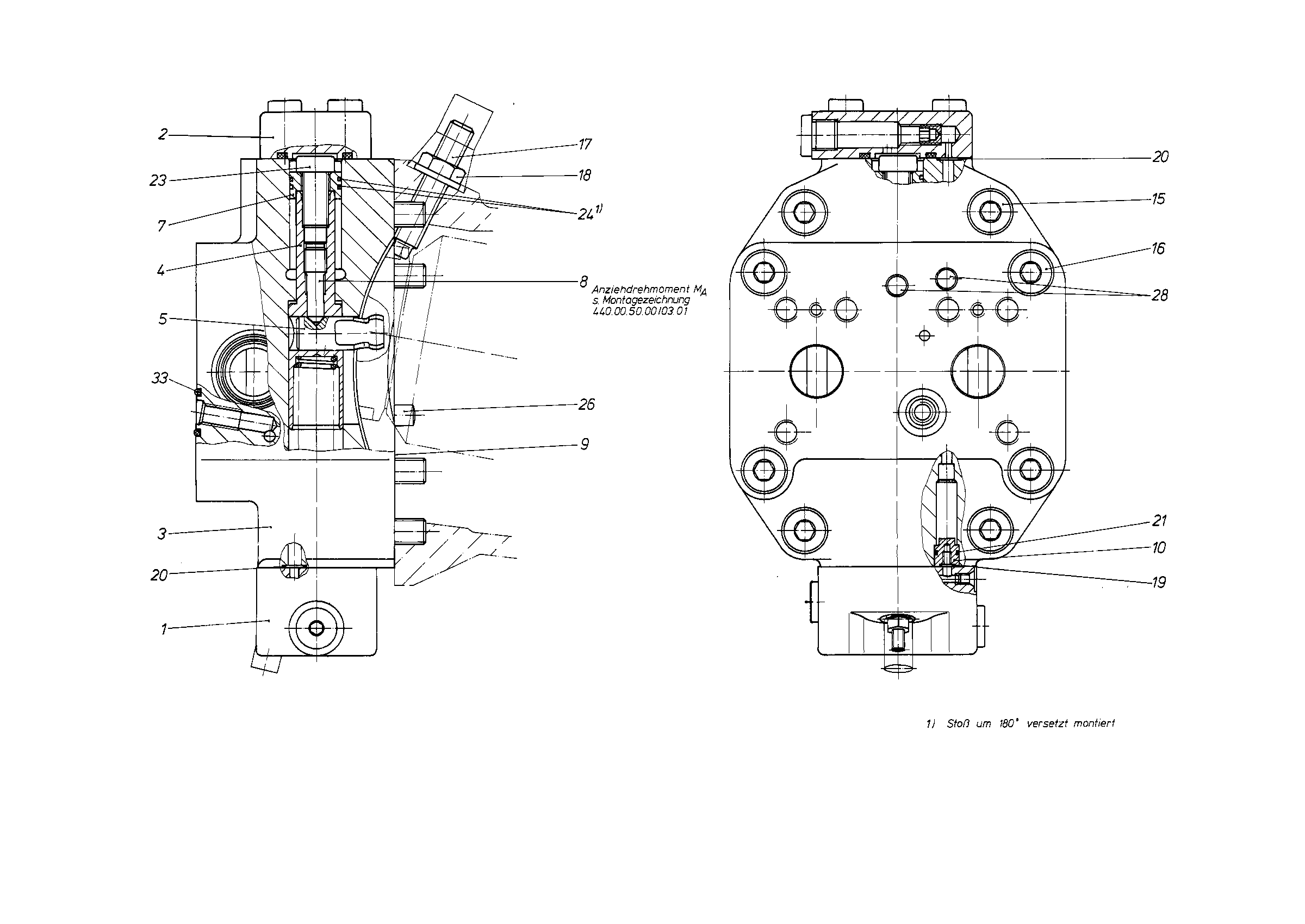

Assembly
CONTROLR909447743
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419430 | CONTROL PART Assembly parts list →L | 1 | ||
| R909447747 | COVER | 1 | ||
| 3 | R909445506 | COVER PLATE | 1 | |
| 4 | R909444972 | POSITIONING PISTON | 1 | |
| 5 | R909422949 | POSITIONING STUD | 1 | |
| R909444971 | PISTON | 1 | ||
| 8 | R909444969 | SETSCREW | 1 | |
| 9 | R909436530 | SEALD | 1 | |
| 10 | R902075345 | PLUG | 2 | |
| R909083097 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083104 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909446862 | SETSCREW Assembly parts list →L | 1 | |
| R909152459 | SEALING NUTD | 1 | ||
| R909084469 | O-RINGD | 2 | ||
| 20 | R909086498 | O-RINGD | 3 | |
| R909085709 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| R909083204 | SOCKET HEAD CAP SCREW | 1 | ||
| 24 | R909157306 | R-RINGD | 2 | |
| 26 | R913009669 | STRAIGHT PIN | 2 | |
| 27 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| 34 | R909153815 | SCREW PLUGD | 2 |
