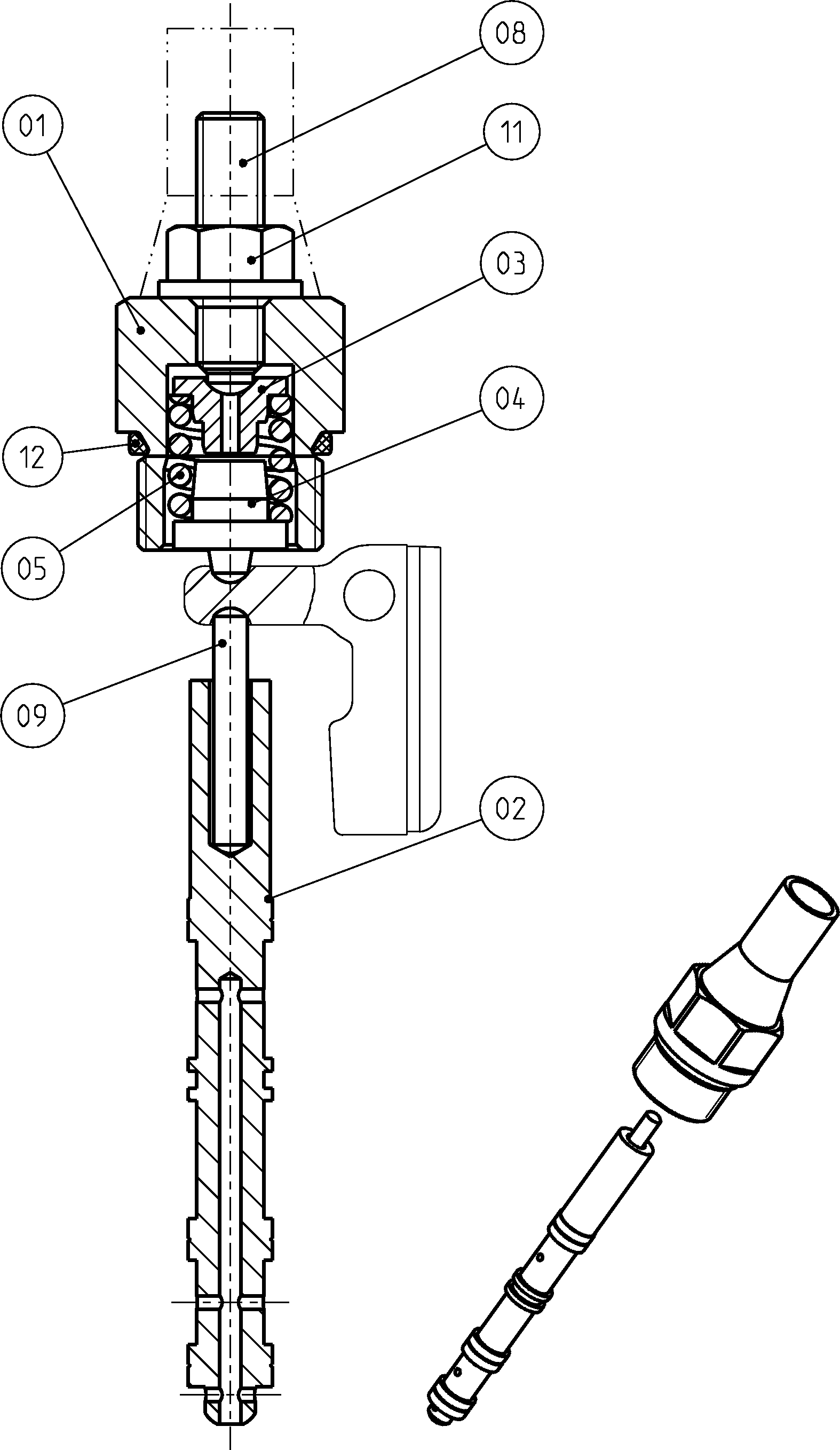

Assembly
CONTROL ELEMENTR909447845
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R909449007 | CONTROL PISTON | 1 | ||
| 3 | R909436991 | SPRING BOLT | 1 | |
| 4 | R909440787 | SPRING BOLT | 1 | |
| 5 | R909443278 | COMPRESSION SPRING | 1 | |
| 8 | R909444953 | SETSCREW | 1 | |
| 9 | R909440839 | BOLT | 1 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 |
