Assembly

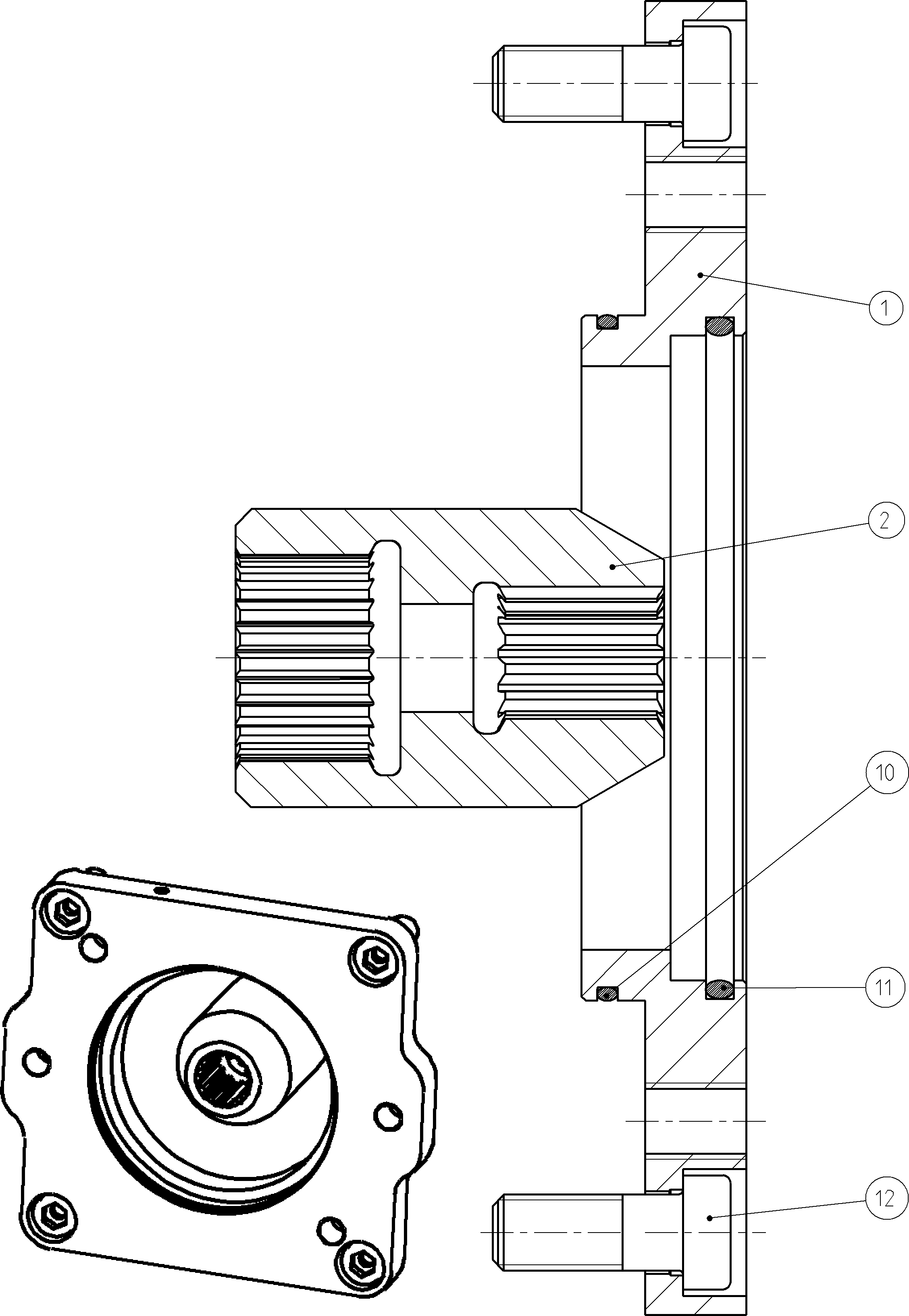

BELL HOUSINGR909447858
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909921229 | FLANGE | 1 | ||
| R902087676 | COUPLING HUB | 1 | ||
| — | O-RINGD | 1 | ||
| R909085365 | O-RINGD | 1 | ||
| R909083205 | SOCKET HEAD CAP SCREW | 4 | ||
| 46 | R909086465 | SOCKET HEAD CAP SCREW | 2 | |
| 98 | R902095514 | SEAL KIT | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909921229 | FLANGE | 1 | ||
| R902087676 | COUPLING HUB | 1 | ||
| — | O-RINGD | 1 | ||
| R909085365 | O-RINGD | 1 | ||
| R909083205 | SOCKET HEAD CAP SCREW | 4 | ||
| 46 | R909086465 | SOCKET HEAD CAP SCREW | 2 | |
| 98 | R902095514 | SEAL KIT | 1 |
