Assembly

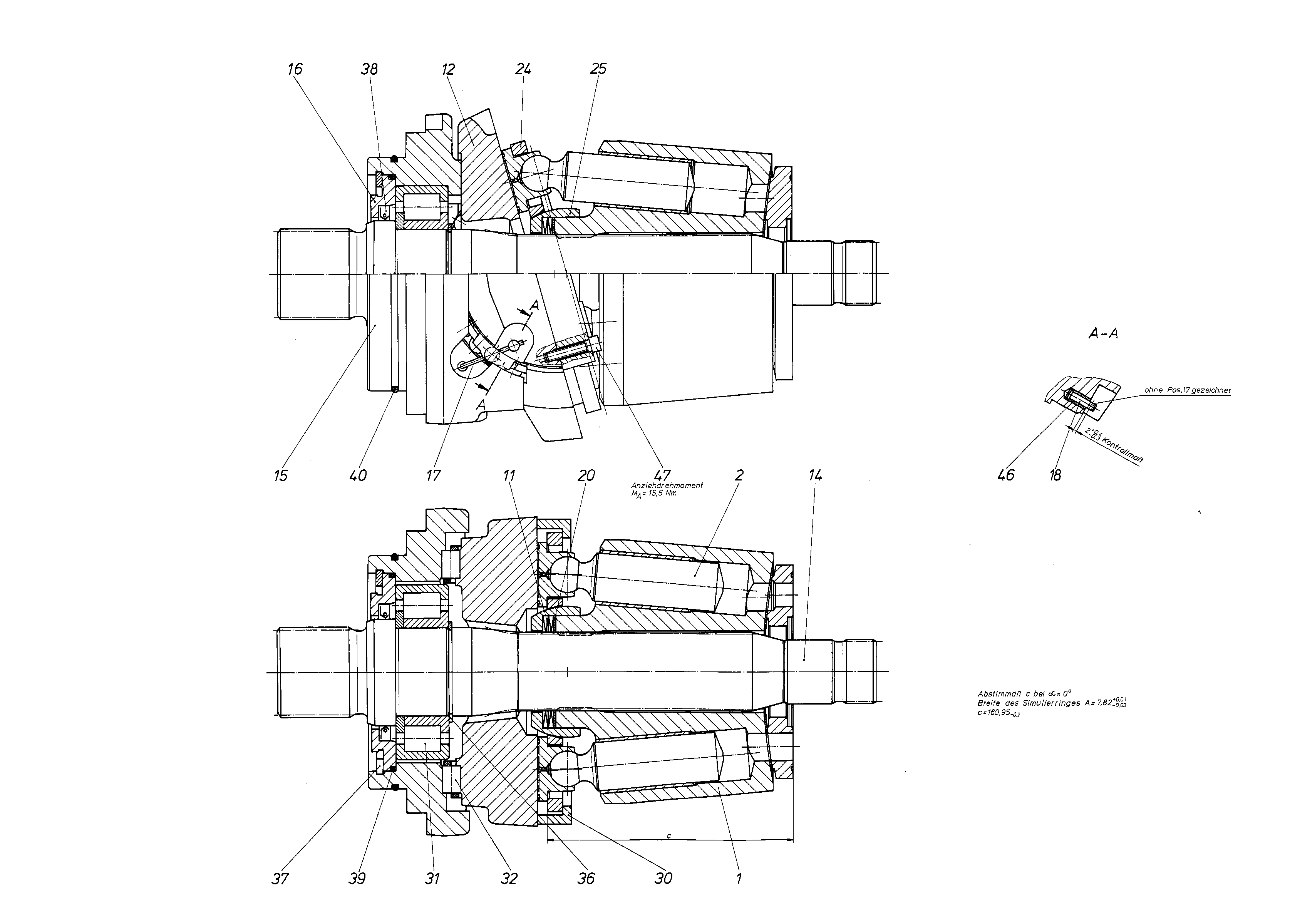

ROTARY GROUPR909447909
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909650923 | CYLINDER Assembly parts list →L | 1 | |
| 2 | R909443141 | PISTON PAD | 9 | |
| 11 | R909431527 | CUP-SPRING STACK | 1 | |
| R909443285 | CRADLE | 1 | ||
| R909444419 | DRIVE SHAFT | 1 | ||
| R909440158 | BEARING FLANGE | 1 | ||
| R902108608 | LOCKING RINGD | 1 | ||
| R909403549 | WIRE | 2 | ||
| R909076231 | PIVOT PIN | 2 | ||
| R909431475 | SHIM RING | 1 | ||
| R909431476 | SHIM RING | 1 | ||
| R909431477 | SHIM RING | 1 | ||
| R909431478 | SHIM RING | 1 | ||
| R902210072 | RETAINING PLATE | 1 | ||
| R909431396 | RETAINING BALL | 1 | ||
| R909431641 | RETAINING SEGMENT | 2 | ||
| 31 | R909830885 | CYL. ROLLER BEARING | 1 | |
| R909830650 | CAGE PAIR | 1 | ||
| R909084418 | RETAINING RING | 1 | ||
| R909083420 | RETAINING RING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909154937 | O-RINGD | 1 | ||
| R909831131 | O-RINGD | 1 | ||
| R909153928 | SLOTTED SPRING PIN | 2 | ||
| R909831331 | SOCKET HEAD CAP SCREW | 4 |
