Assembly

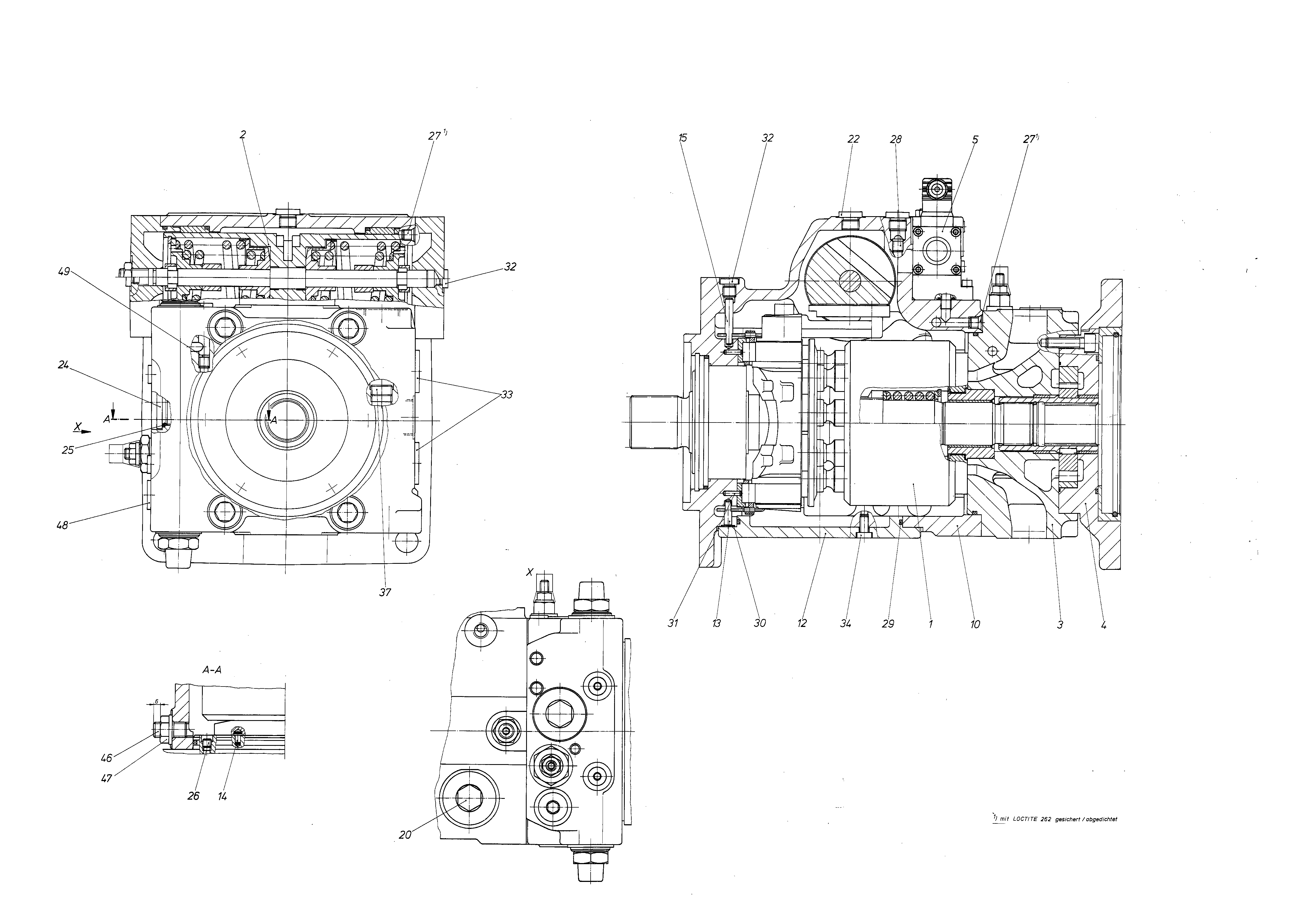

AXIAL-PISTON PUMPR909447942
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909447599 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909446554 | CONTROL Assembly parts list →L | 1 | |
| R909606142 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909448771 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909437191 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909435244 | HOUSING | 1 | ||
| R909426148 | HOUSING COVER | 1 | ||
| 13 | R909426652 | PIVOT PIN | 1 | |
| 14 | R909405732 | POITIONING PIN | 1 | |
| 15 | R902118898 | PIVOT PIN | 1 | |
| R909153862 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909083229 | SCREW PLUG | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| 26 | R909153572 | SCREW PLUG | 1 | |
| 27 | R909831320 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909426700 | NOZZLE | 2 | ||
| R909830461 | O-RINGD | 1 | ||
| R909157348 | QUAD RINGD | 1 | ||
| 31 | R913016375 | SLOTTED SPRING PIN | 2 | |
| R909151692 | SCREW PLUGD | 3 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| R909156570 | SCREW PLUG | 1 | ||
| R909157393 | SETSCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| 48 | R909151694 | SCREW PLUGD | 1 | |
| R909083498 | SETSCREW | 1 |
