Assembly

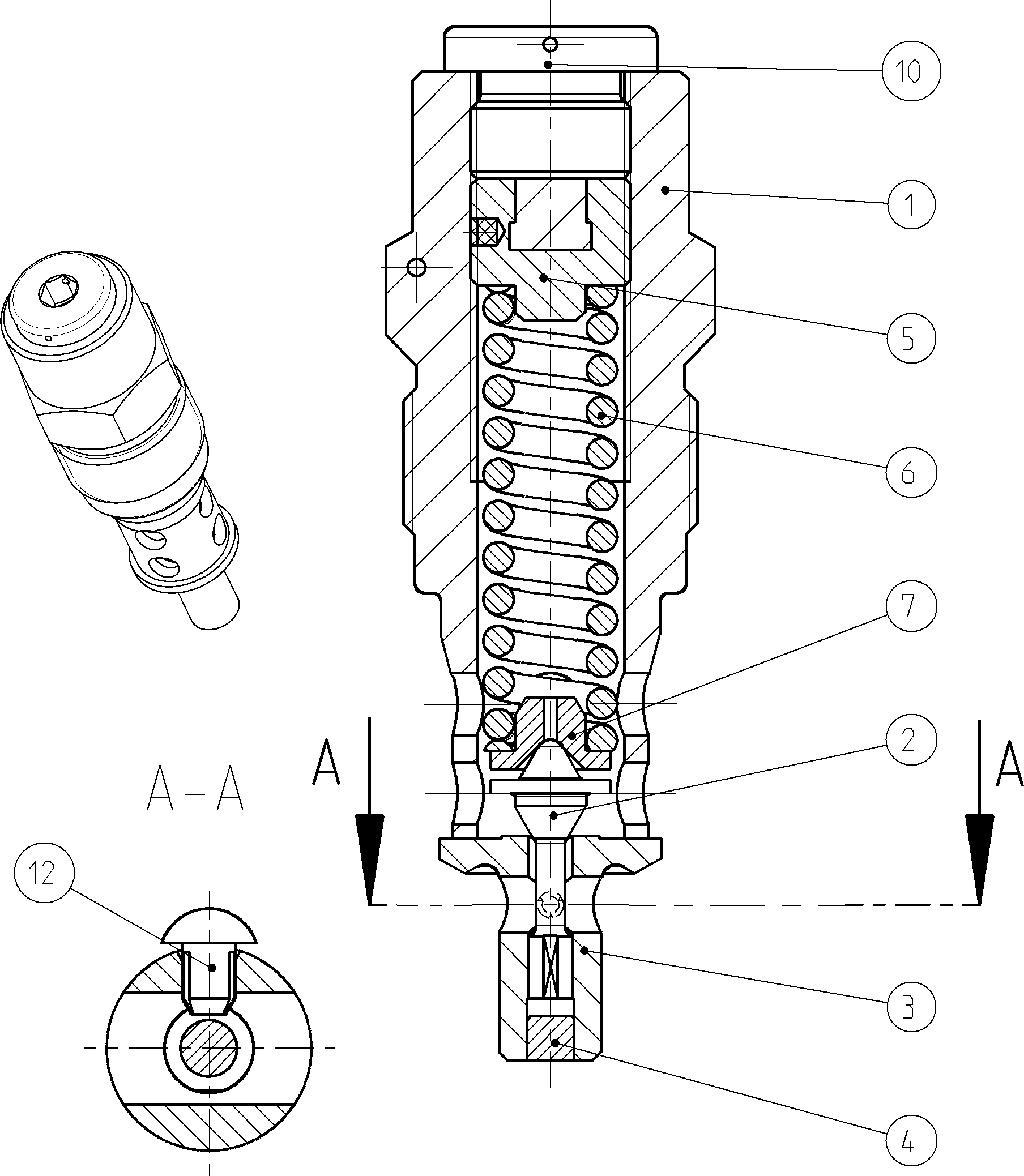

PRESSURE RELIEF VALVER909448033
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909449200 | SPRING SLEEV | 1 | ||
| R909449201 | VALVE SPOOL | 1 | ||
| R909449202 | GUIDE PART | 1 | ||
| R909449203 | PLUG | 1 | ||
| R909449204 | STRAINING SCREW | 1 | ||
| R909449139 | COMPRESSION SPRING | 1 | ||
| R909449205 | SPRING DISK | 1 | ||
| R909449206 | SCREW PLUG | 1 | ||
| R909831281 | GROOVED NAIL | 1 |
