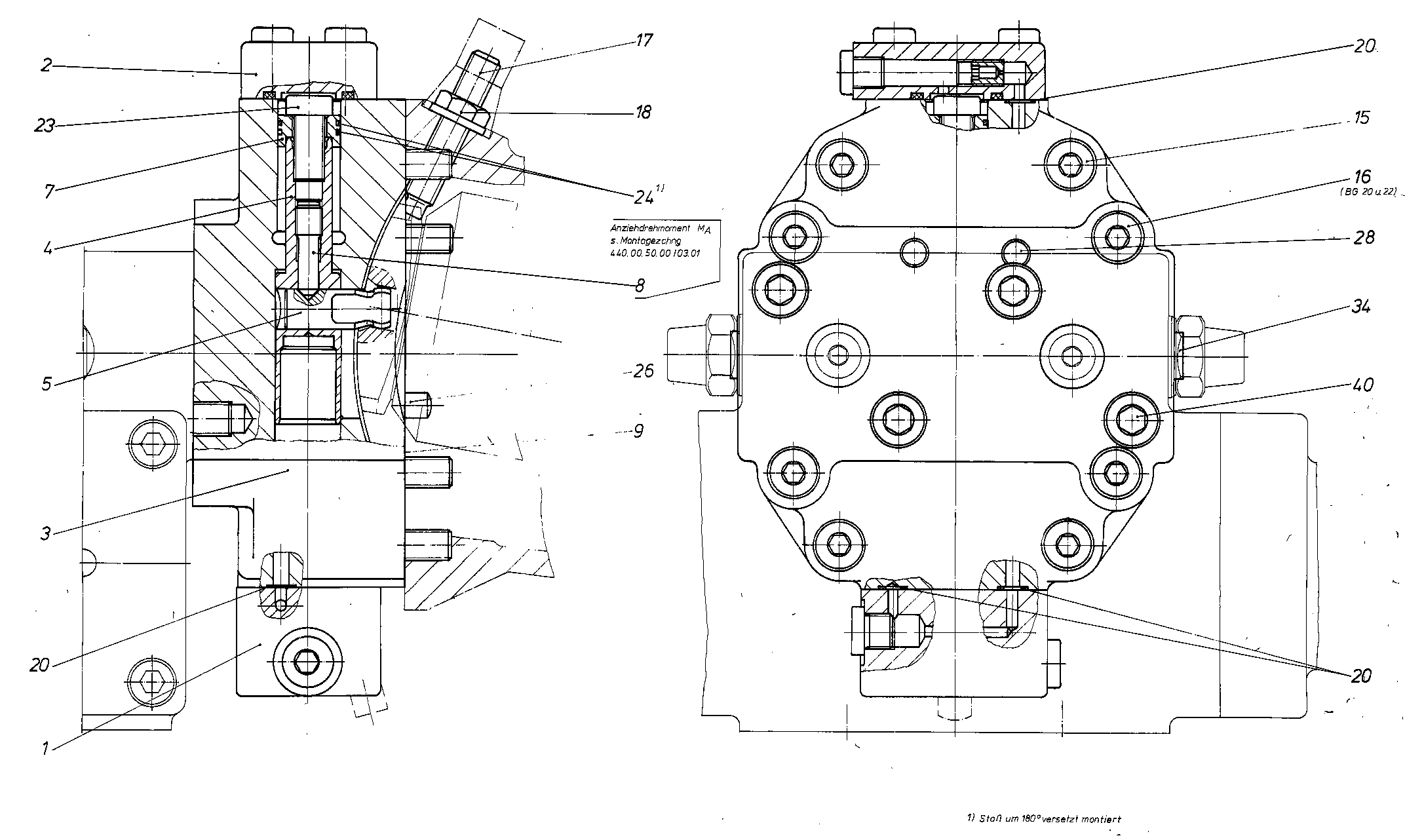

Assembly
CONTROLR909448043
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421191 | CONTROL PART Assembly parts list →L | 1 | ||
| R909603608 | COVER Assembly parts list →L | 1 | ||
| R909449626 | COVER PLATE | 1 | ||
| R909444958 | POSITIONING PISTON | 1 | ||
| R909422217 | POSITIONING STUD | 1 | ||
| R902102903 | PISTON | 1 | ||
| R909445015 | SETSCREW | 1 | ||
| R902011853 | SEALD | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446862 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909086498 | O-RINGD | 5 | ||
| R909083204 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153815 | SCREW PLUGD | 2 |
