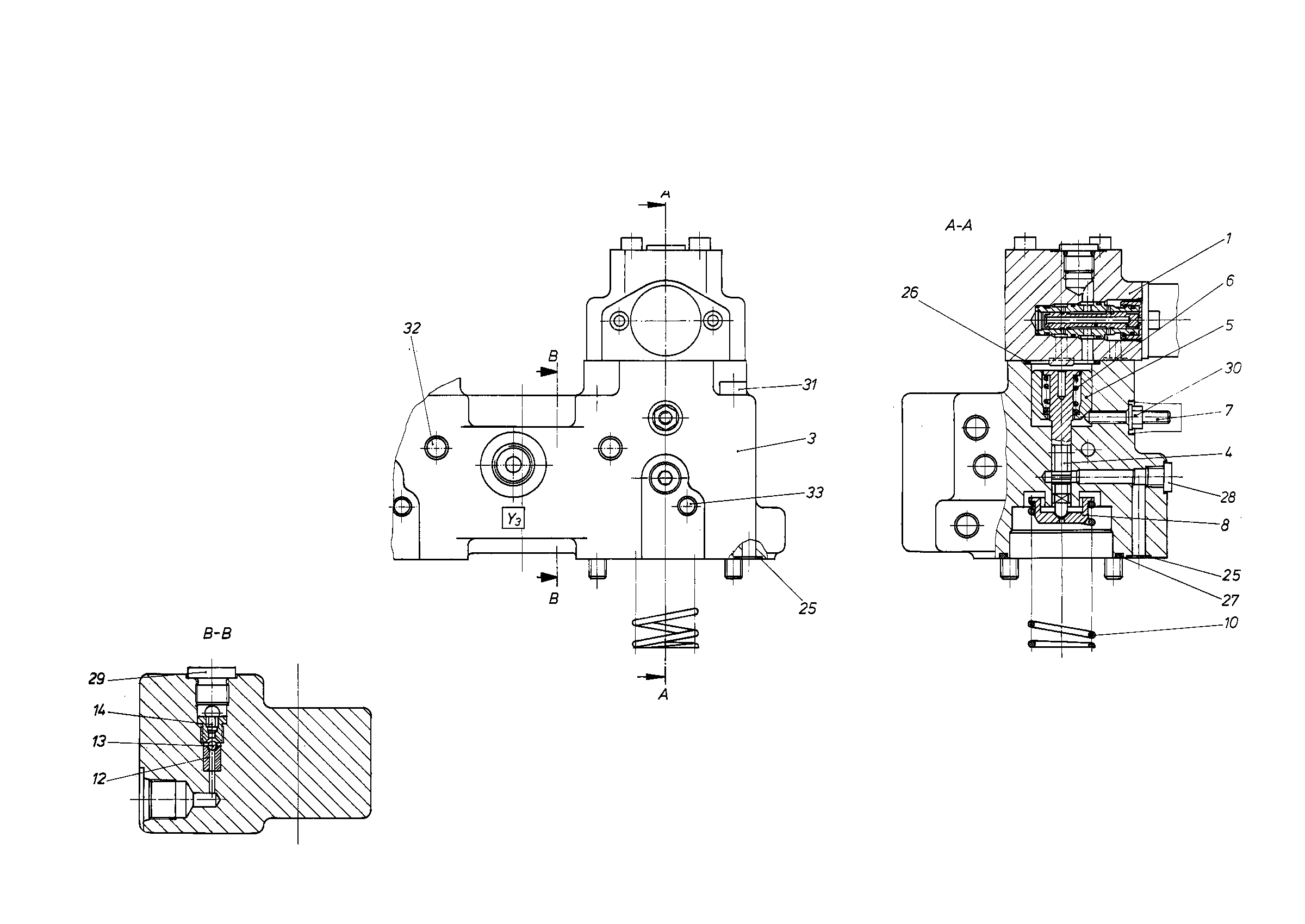

Assembly
CONTROL MODULER909448136
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909448282 | CONTROL MODULE Assembly parts list →L | 2 | |
| R909921413 | CONTROL HOUSING | 1 | ||
| R909449944 | CONTROL PISTON | 2 | ||
| 5 | R909449344 | SPRING BUSH | 2 | |
| 6 | R909449351 | COMPRESSION SPRING | 2 | |
| 7 | R909420992 | SETSCREW | 2 | |
| 8 | R909425804 | SPRING DISK | 2 | |
| 10 | R909449352 | COMPRESSION SPRING | 2 | |
| R909650250 | BUSHING | 2 | ||
| 13 | R909083258 | BALL | 2 | |
| 14 | R909650251 | VALVE SCREW | 2 | |
| R909085709 | O-RINGD | 6 | ||
| R909086731 | O-RINGD | 2 | ||
| R902600656 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| 30 | R909152425 | SEALING NUTD | 2 | |
| 31 | R909083051 | SOCKET HEAD CAP SCREW | 6 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
