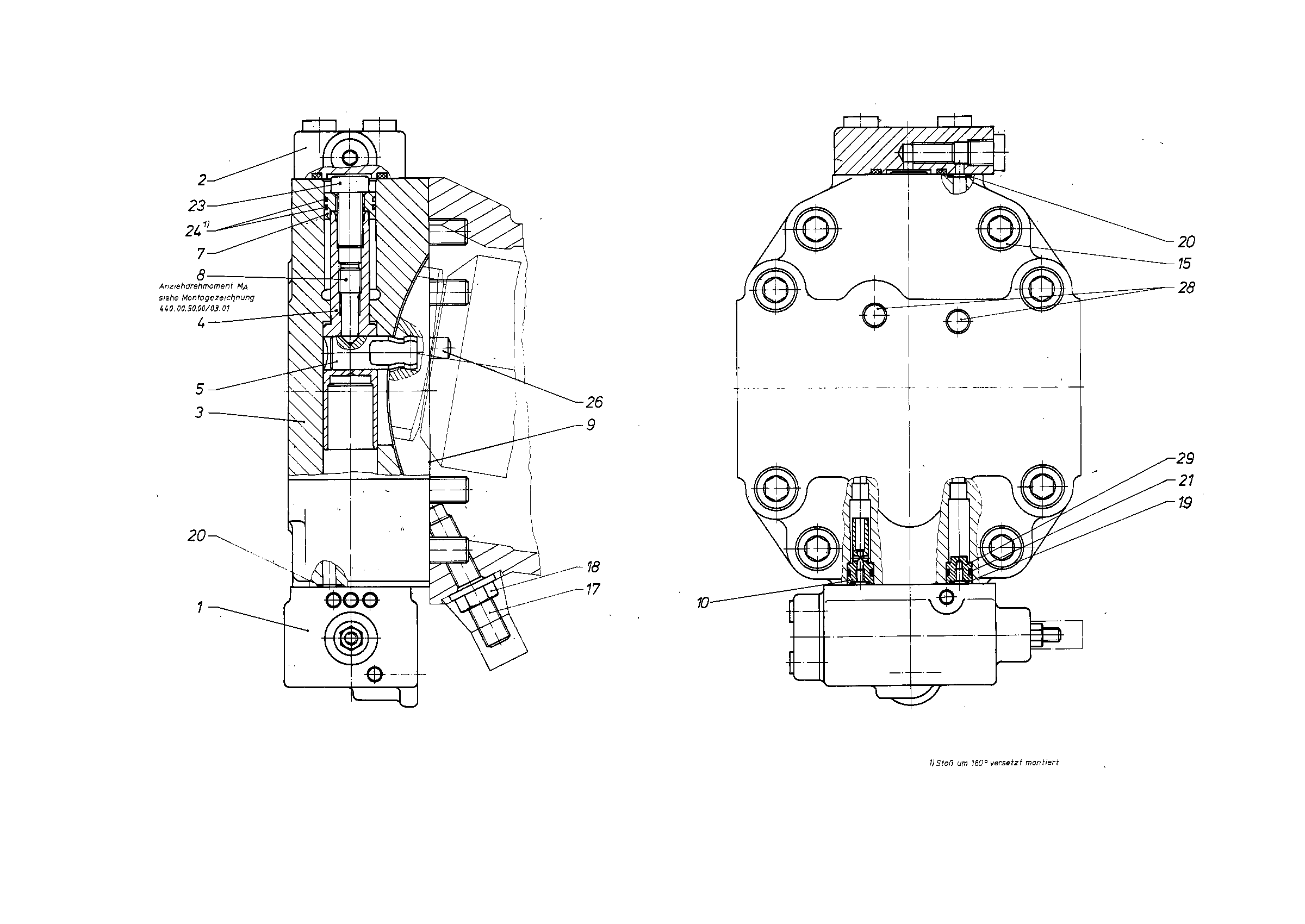

Assembly
CONTROLR909448212
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420235 | CONTROL PART Assembly parts list →L | 1 | ||
| R909448216 | COVER Assembly parts list →L | 1 | ||
| R909444836 | COVER PLATE | 1 | ||
| R909445054 | POSITIONING PISTON | 1 | ||
| R909422940 | POSITIONING STUD | 1 | ||
| R902102899 | PISTON | 1 | ||
| R909445056 | SETSCREW | 1 | ||
| R902011852 | SEALD | 1 | ||
| R909422896 | VALVE GUIDE | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 8 | ||
| R909447003 | SETSCREW Assembly parts list →L | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909157248 | O-RINGD | 2 | ||
| R909085577 | O-RINGD | 3 | ||
| R909087877 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| R909083197 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902075345 | PLUG | 1 |
