Assembly

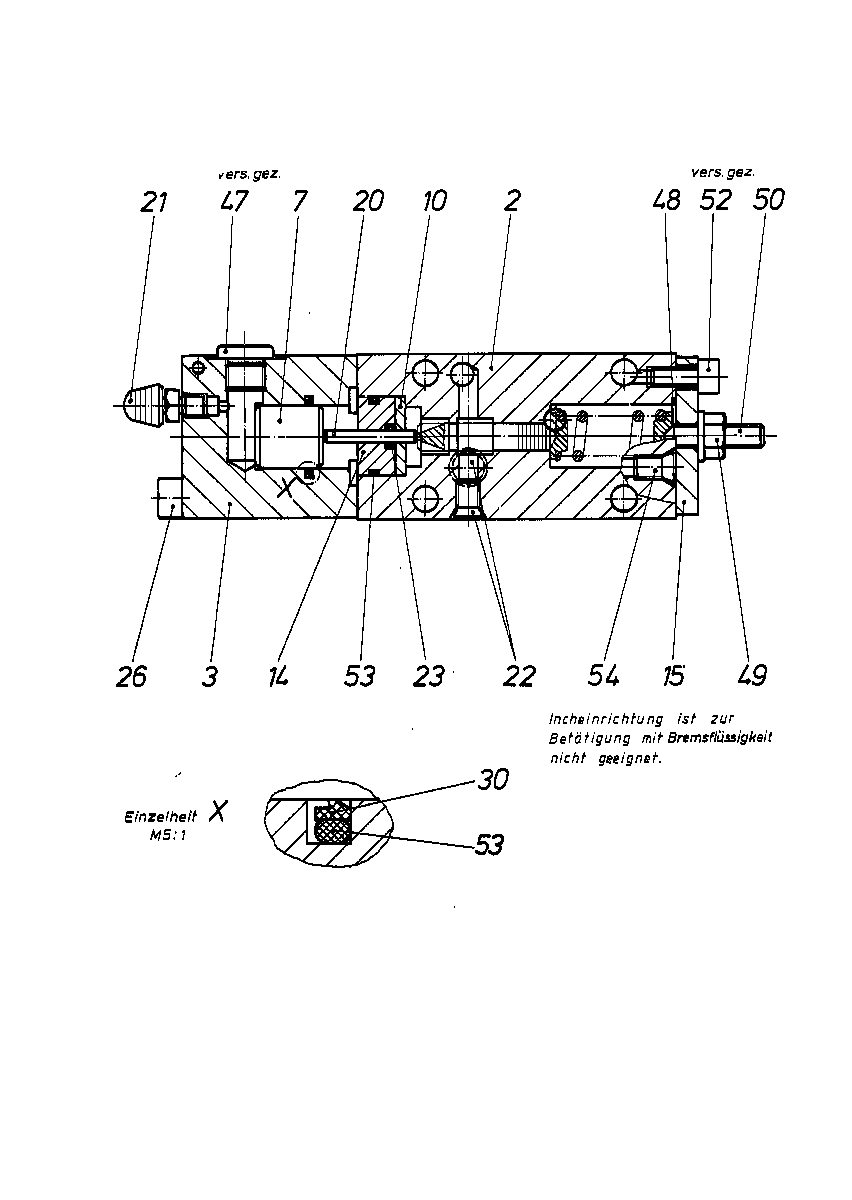

INCHING DEVICER909448305
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419968 | INCHING HOUSING | 1 | ||
| R902052893 | HOUSING COVER | 1 | ||
| R909401708 | PISTON | 1 | ||
| R909404505 | WASHER | 1 | ||
| 14 | R902128652 | SEAL BUSHING | 1 | |
| 15 | R909404507 | COVER | 1 | |
| R909922151 | STRAIGHT PIN | 1 | ||
| R909831012 | BLEEDER VALVE | 1 | ||
| 22 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | R902600639 | O-RINGD | 1 | |
| R909083028 | SOCKET HEAD CAP SCREW | 2 | ||
| 30 | R909153892 | ROD SEALD | 1 | |
| R902602203 | SEAL SCREW | 1 | ||
| 48 | R909086478 | O-RINGD | 1 | |
| 49 | R909152425 | SEALING NUT | 1 | |
| 50 | R909153284 | SETSCREW | 1 | |
| 52 | R909083009 | SOCKET HEAD CAP SCREW | 2 | |
| 53 | R909084939 | O-RINGD | 2 | |
| 54 | R902600503 | SETSCREW | 1 |
