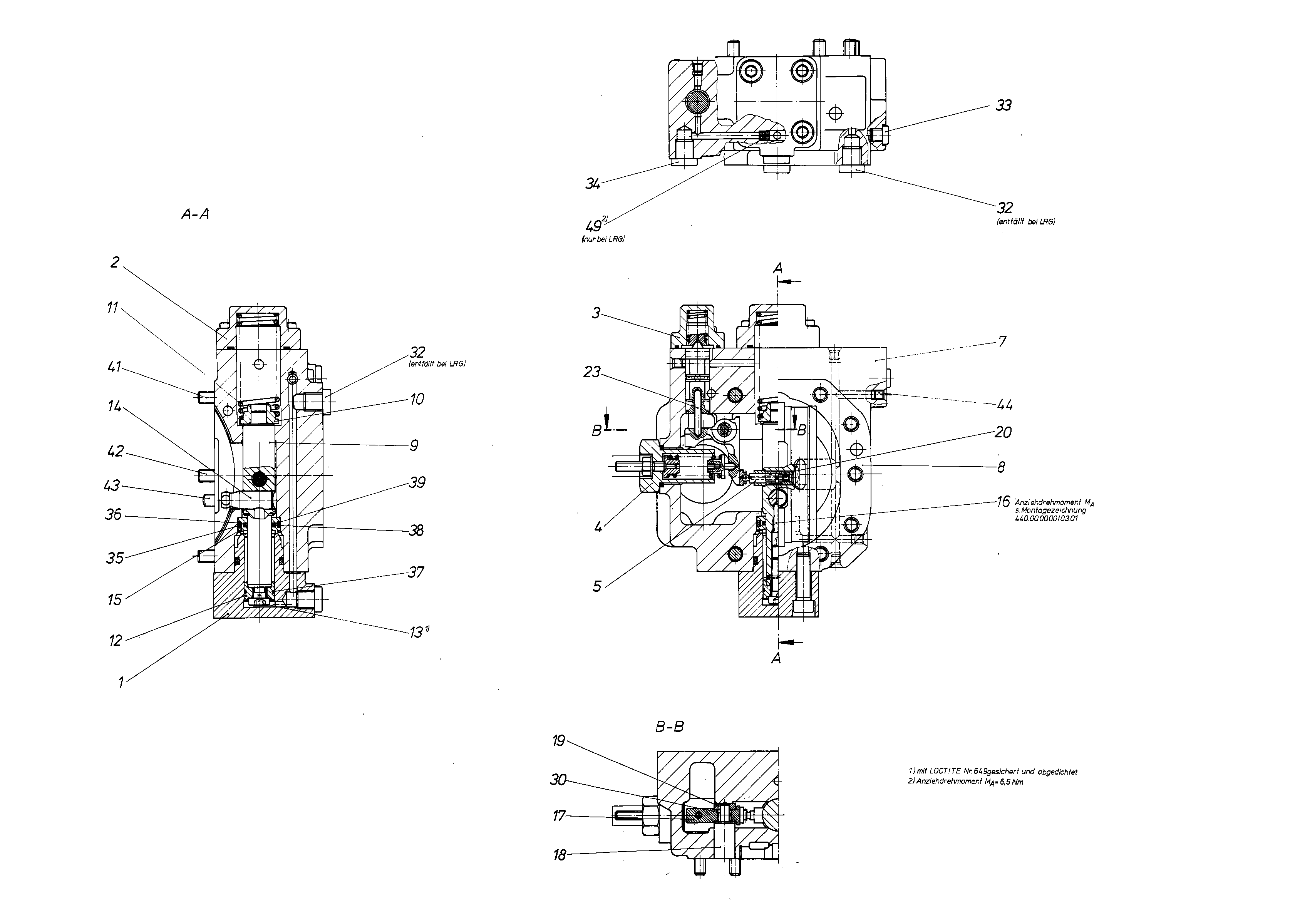

Assembly
CONTROLR909448627
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902014053 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909437498 | COVER Assembly parts list →L | 1 | ||
| R909448631 | CONTROL PART Assembly parts list →L | 1 | ||
| R909448632 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R909419520 | PISTON PAD | 1 | ||
| R909426410 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909430102 | POSITIONING PISTON | 1 | ||
| R909430100 | SPRING DISK | 1 | ||
| R909426527 | COMPRESSION SPRING | 1 | ||
| R909430099 | PISTON | 1 | ||
| R909430464 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425514 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| R909417903 | SETSCREW | 1 | ||
| R902054362 | LEVER | 1 | ||
| R909418299 | BEARING BOLT | 1 | ||
| R909418300 | BUSHING | 1 | ||
| R909425552 | ADJUSTING BUSH | 1 | ||
| R909439033 | PIN | 1 | ||
| R909830951 | NEEDLE BUSH | 1 | ||
| R909156650 | SCREW PLUGD | 2 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909152694 | O-RINGD | 1 | ||
| R909157774 | BACKUP RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909157773 | ROD SEALD | 1 | ||
| R909154317 | O-RINGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 |
