Assembly

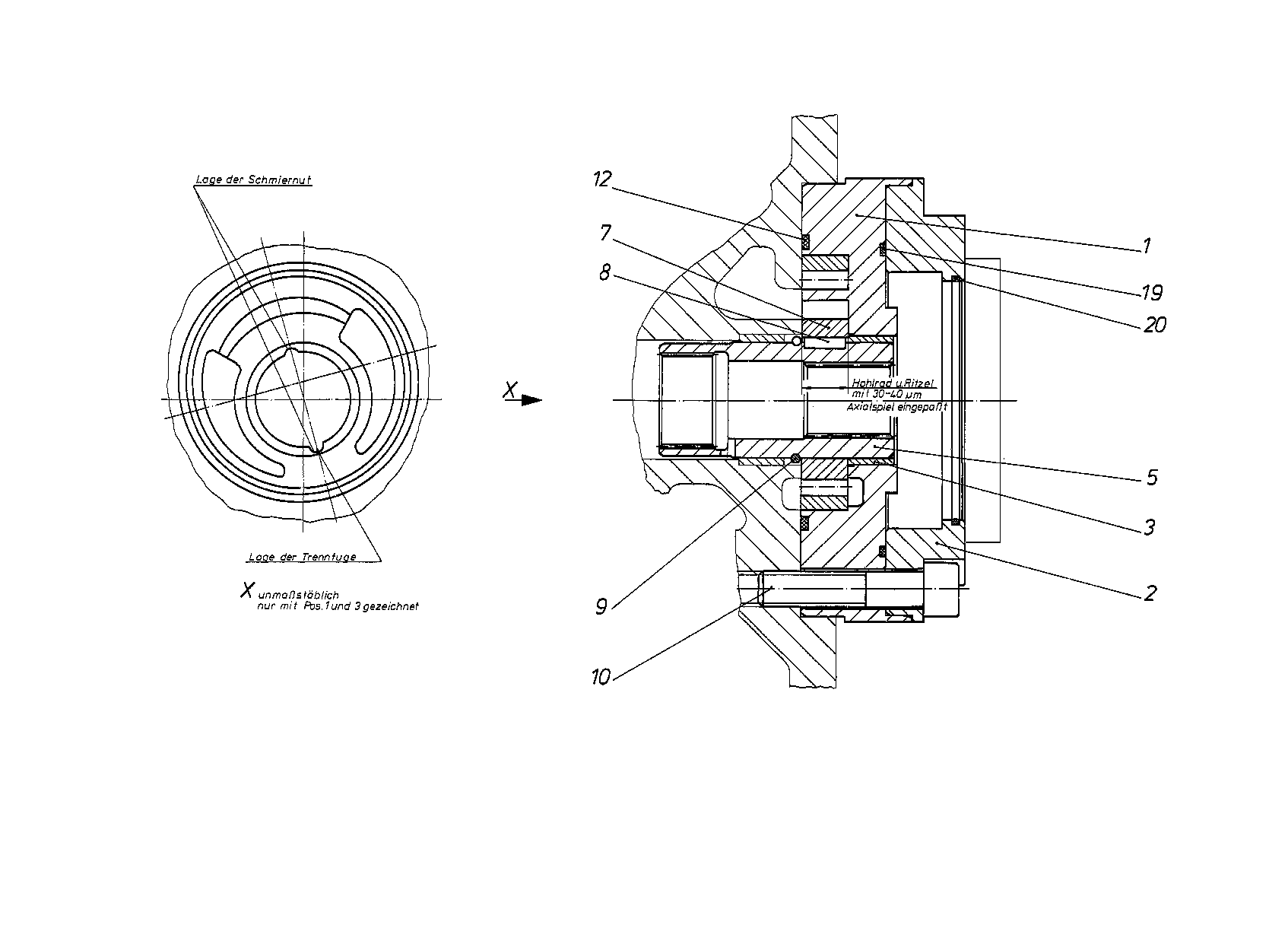

INTERNAL GEAR PUMPR909448773
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909449265 | FLANGE | 1 | ||
| R909449275 | INTERMEDIATE FLANGE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R909650379 | THROUGH DRIVE SHAFT | 1 | ||
| R902006258 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083095 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083825 | O-RINGD | 1 | ||
| R909086823 | O-RINGD | 1 | ||
| R909086991 | O-RINGD | 1 |
