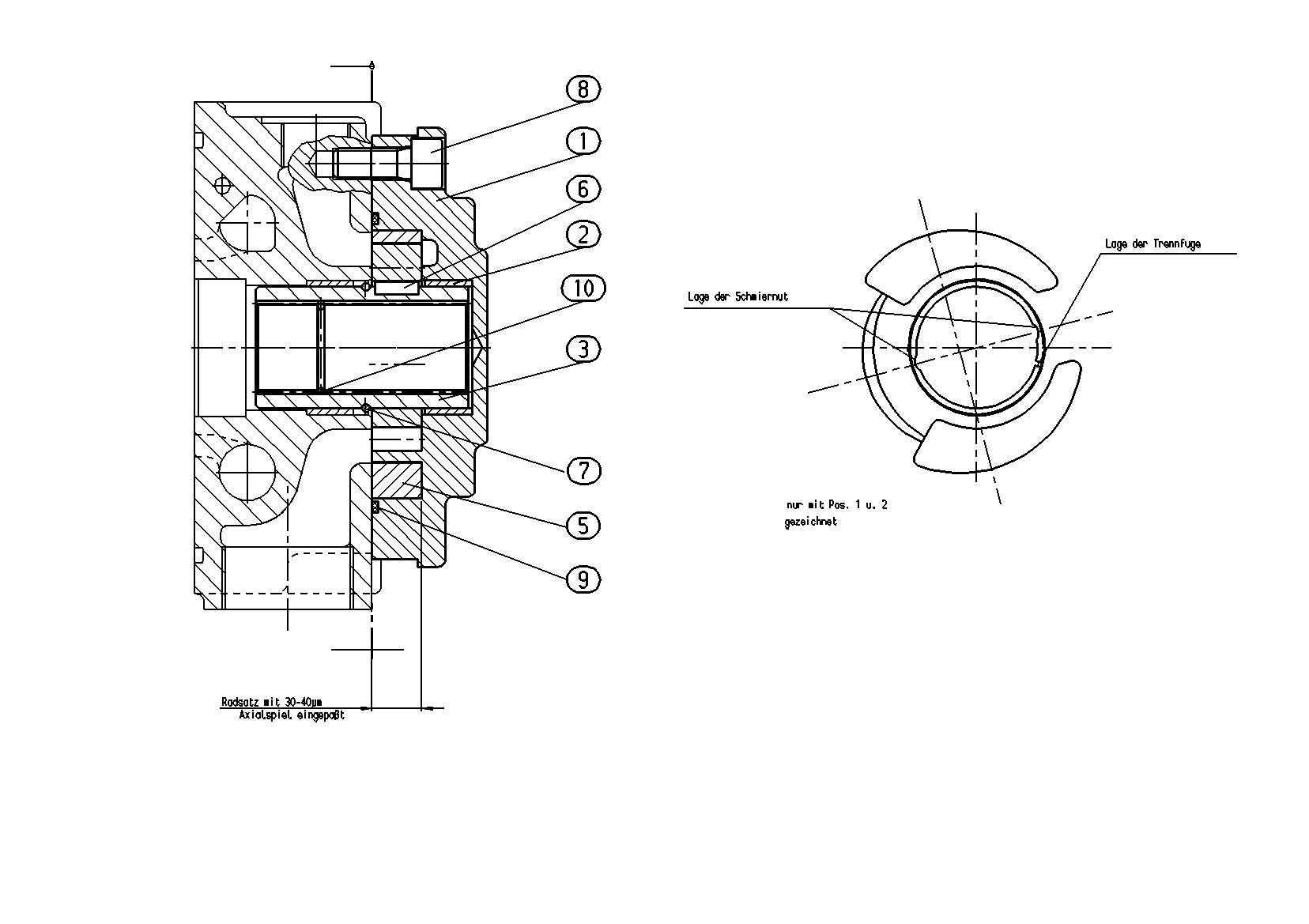

Assembly
INTERNAL GEAR PUMPR909448818
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909445923 | PUMP COVER | 1 | |
| R909449136 | BUSHING | 1 | ||
| R909449417 | PLUG-IN SHAFT | 1 | ||
| 5 | R902006258 | WHEEL SET | 1 | |
| R902025649 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| 9 | R909086679 | O-RINGD | 1 | |
| R909154067 | SNAP RING | 1 |
