Assembly

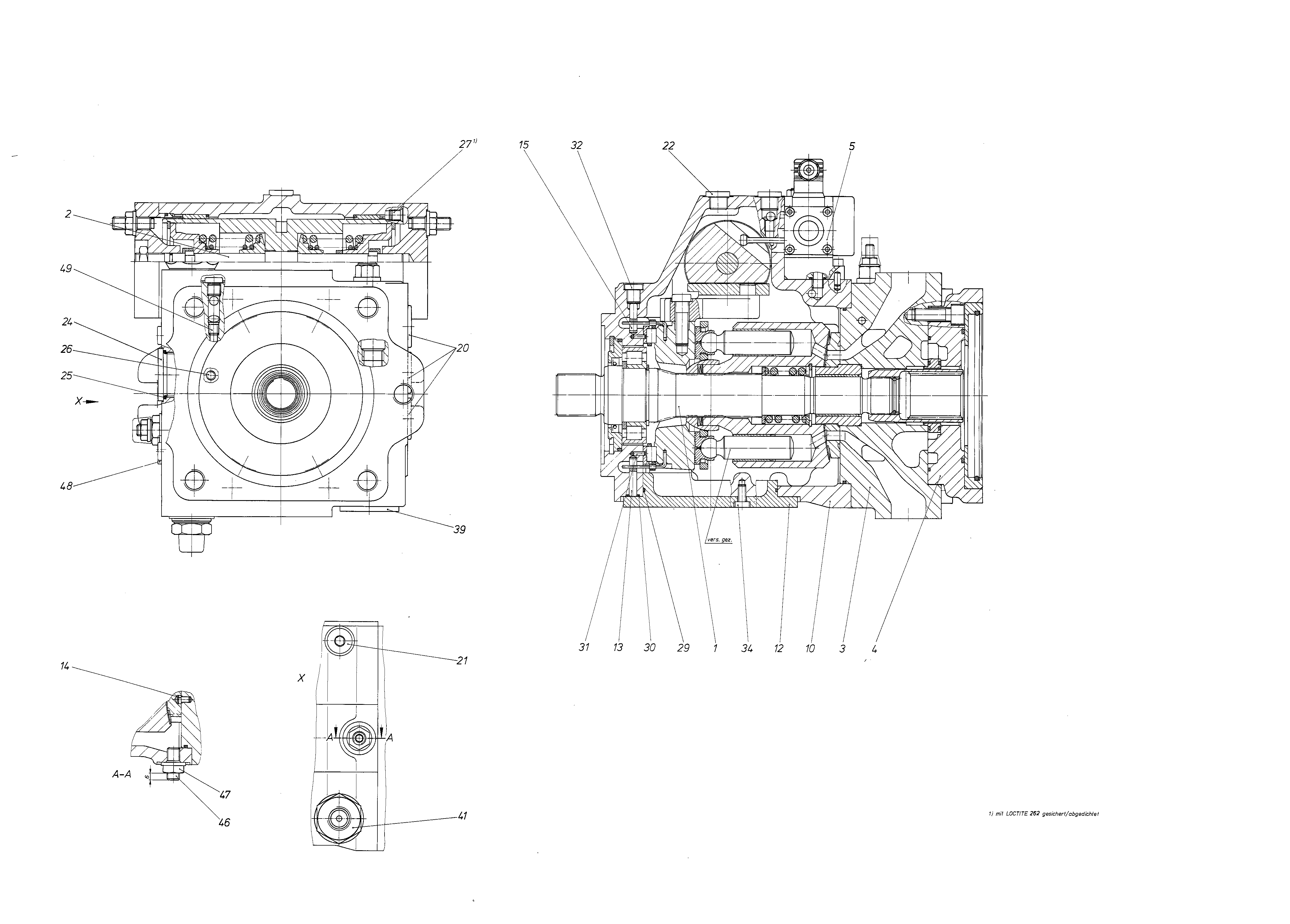

AXIAL-PISTON PUMPR909448876
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437845 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909433309 | CONTROL Assembly parts list →L | 1 | |
| R909438649 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909448868 | BELL HOUSING Assembly parts list →L | 1 | ||
| 5 | R909602240 | CONTROL MODULE Assembly parts list →L | 1 | |
| R909436787 | HOUSING | 1 | ||
| R909432369 | HOUSING COVER | 1 | ||
| R909435017 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R902118633 | PIVOT PIN | 1 | ||
| R909153861 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| 24 | R909083229 | SCREW PLUG | 1 | |
| R909085545 | O-RINGD | 1 | ||
| 26 | R909153572 | SCREW PLUG | 1 | |
| 27 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909830207 | O-RINGD | 1 | ||
| R909157348 | QUAD RINGD | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| R909153459 | SCREW PLUGD | 1 | ||
| 41 | R909607202 | ORIFICE SCREW Assembly parts list →L | 1 | |
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| 48 | R909151694 | SCREW PLUGD | 1 | |
| R909426707 | NOZZLE | 1 |
