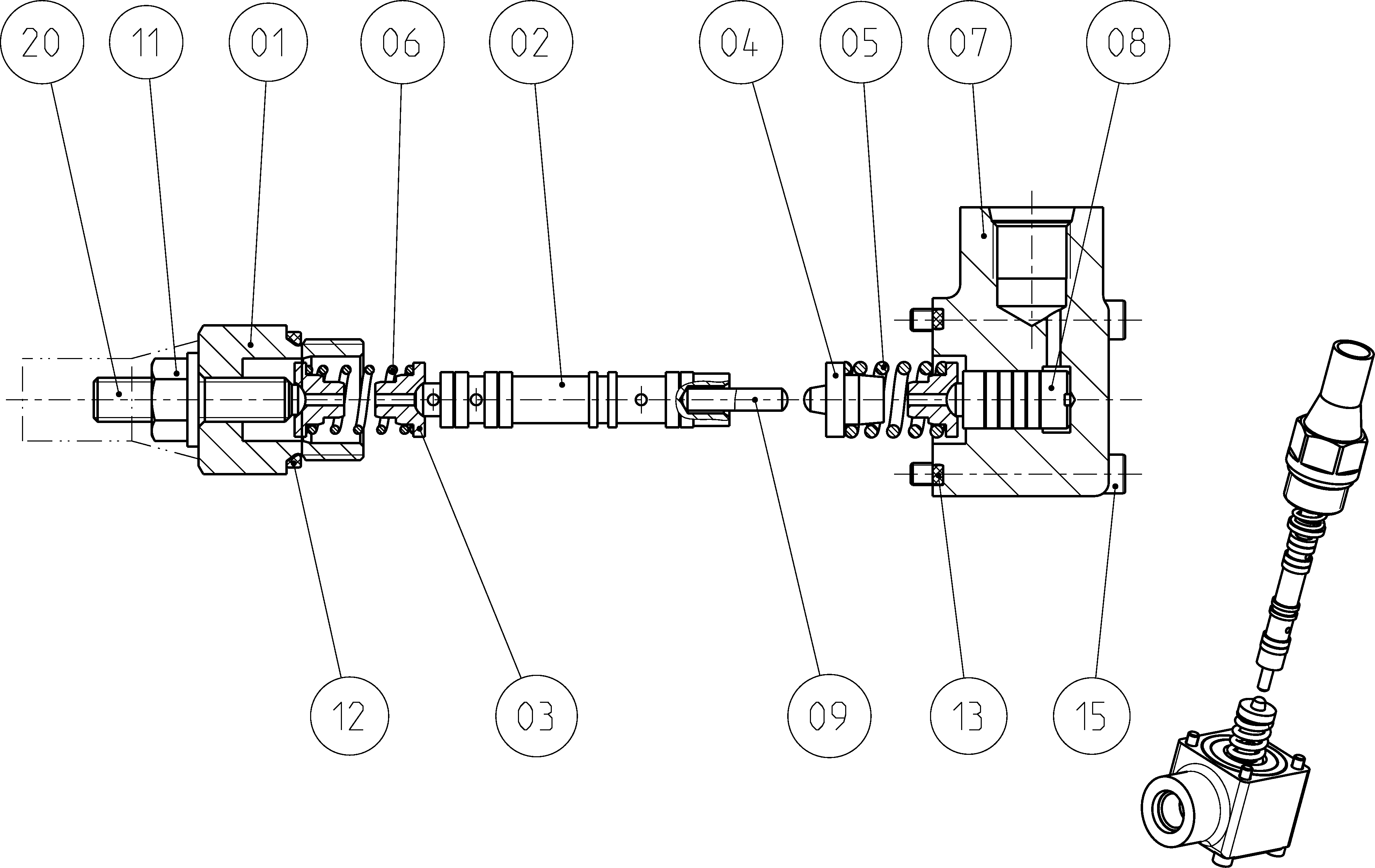

Assembly
CONTROL ELEMENTR909448950
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909440779 | SCREW PLUG | 1 | |
| 2 | R902022771 | CONTROL PISTON | 1 | |
| 3 | R909436991 | SPRING BOLT | 3 | |
| 4 | R909440787 | SPRING BOLT | 1 | |
| 5 | R902012047 | COMPRESSION SPRING | 1 | |
| 6 | R909444559 | COMPRESSION SPRING | 1 | |
| 7 | R909449491 | CONNECTING PIECE | 1 | |
| 8 | R909449490 | CONTROL PISTON | 1 | |
| 9 | R902237857 | BOLT | 1 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083764 | O-RINGD | 1 | ||
| R909083007 | SOCKET HEAD CAP SCREW | 4 | ||
| R909440424 | SETSCREW | 1 |
